Home >> Chevrolet >> 2006 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Pedal Positioning Module >> Locations

Pedal Positioning Module: Locations

Under I/P Left Of Brake Pedal:



Above Brake Pedal:

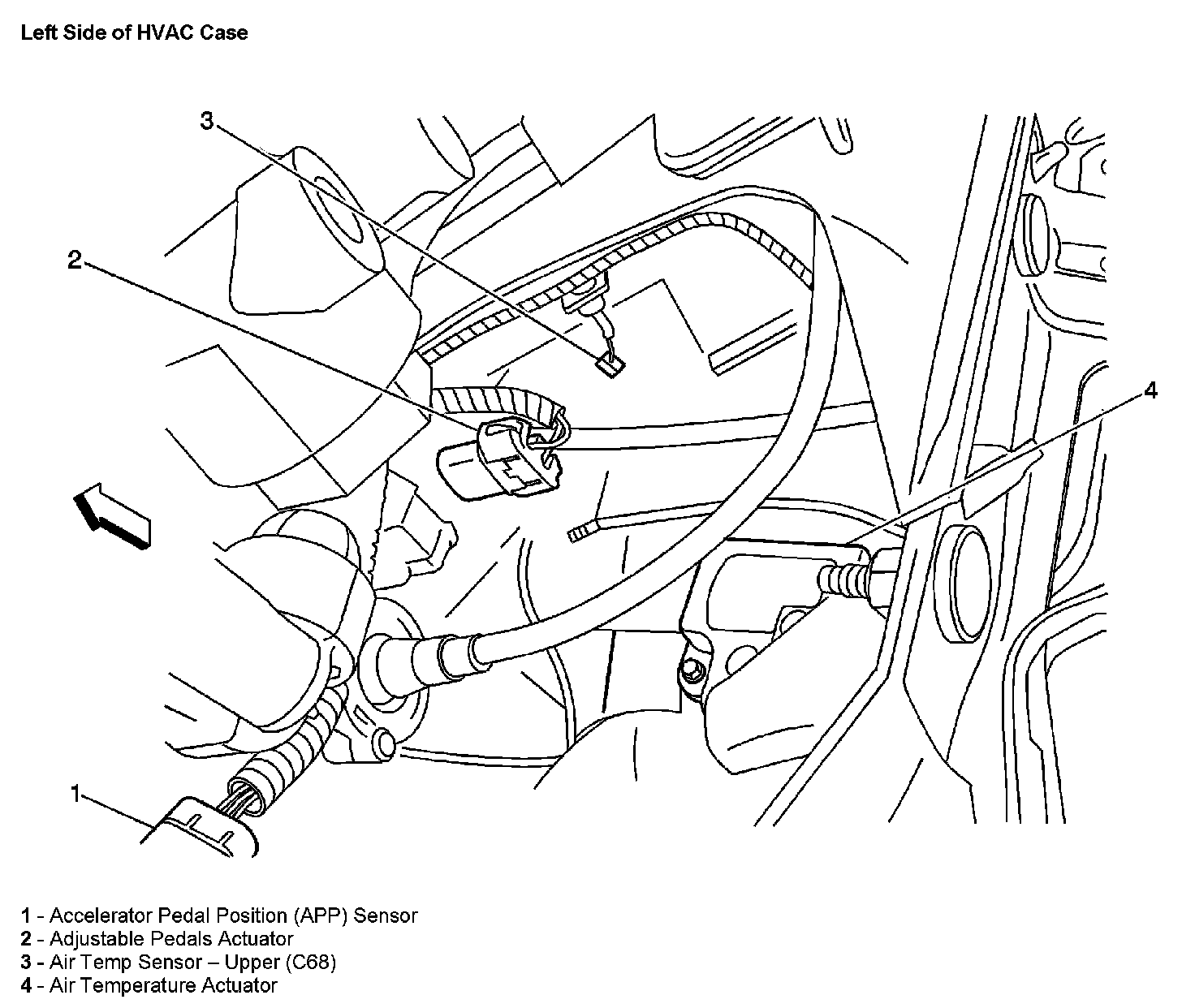

Left Side Of HVAC Case:
