Front Fender Lower Reinforcement Replacement

Fender Reinforcement Replacement - Lower

Removal Procedure

1. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
2. Remove the wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front (Service and Repair) .




3. Remove the fender reinforcement fasteners.




4. Remove the fender reinforcement from the vehicle.



Installation Procedure





1. Install the fender reinforcement onto the vehicle.





Notice: Refer to Fastener Notice in Cautions and Notices.

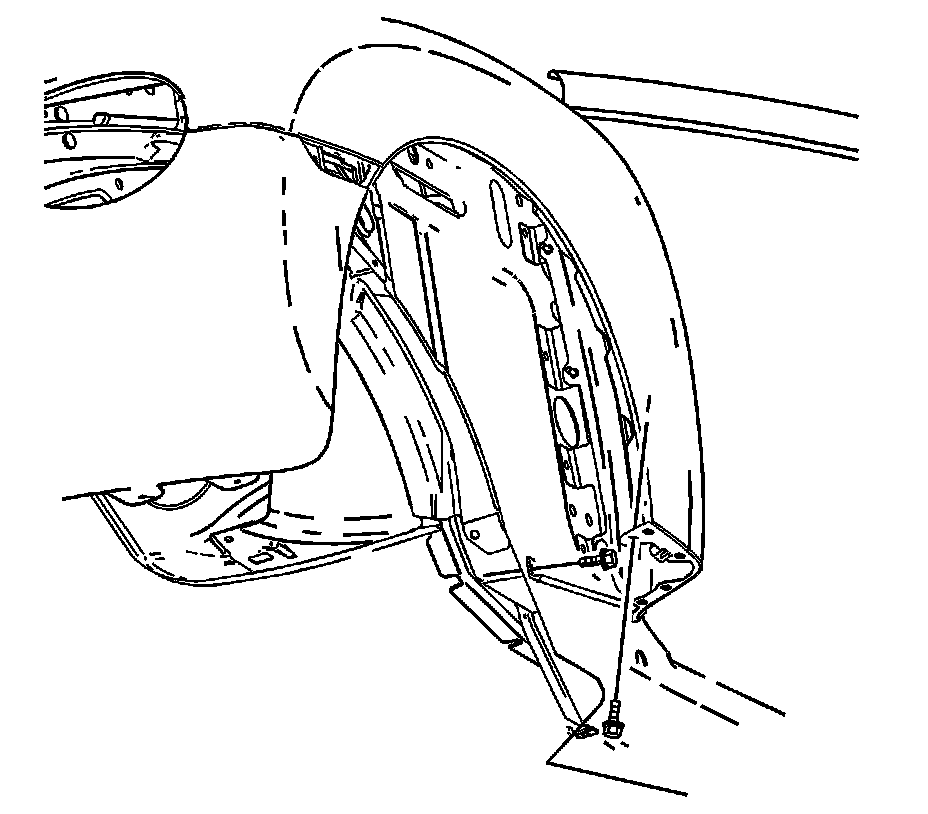

2. Install the fender reinforcement fasteners.

Tighten the fasteners to 10 N.m (88 lb in).

3. Install the wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front (Service and Repair) .
4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
