Frame Brace Replacement

Frame Brace Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

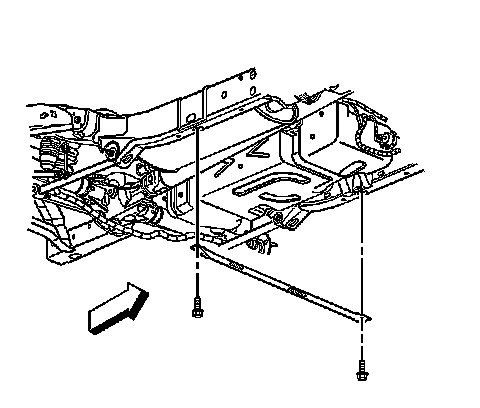

2. Remove the mounting bolts from the frame brace.
3. Remove the frame brace from the frame.

Installation Procedure

Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the frame brace to the frame using the mounting bolt.

Tighten the bolts to 50 N.m (37 lb ft).

2. Lower the vehicle.
