Power Mirror Switch: Service and Repair



Power Mirror Switch Replacement

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Door (Service and Repair) .

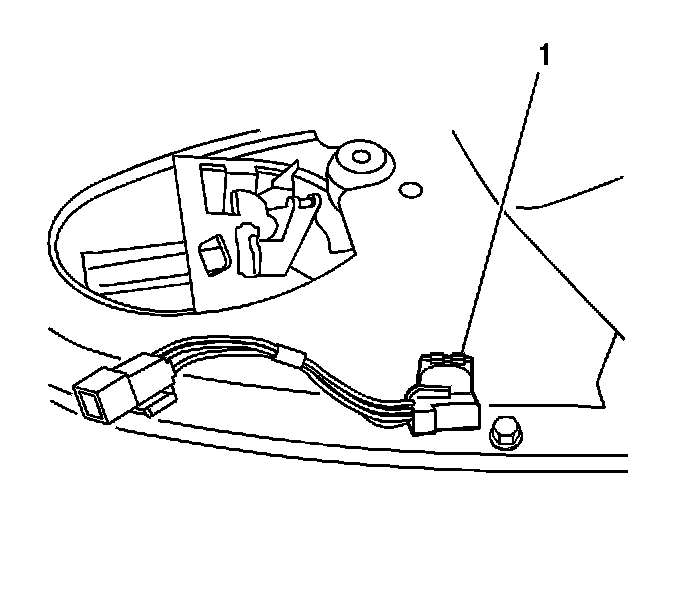

2. Release the locking tabs (1) on the bezel from the inside of the door trim panel.




3. Remove the power mirror switch bezel (1).

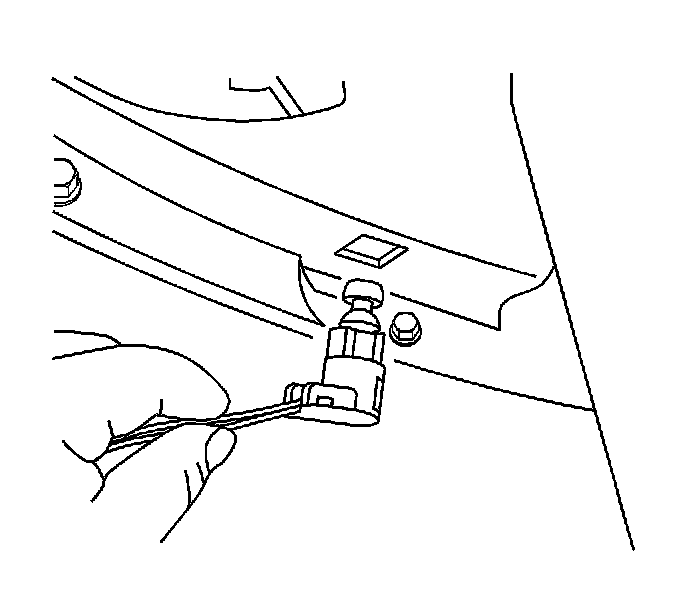

4. Remove the power mirror switch from the door.
5. Disconnect the electrical connector.



Installation Procedure





1. Insert the power mirror switch into the door trim panel.




2. Install the power mirror bezel (1) to the door trim panel.




3. Ensure that the bezel (1) is fully seated on the door trim panel.
4. Connect the electrical connector.
5. Install the door trim panel. Refer to Trim Panel Replacement - Door (Service and Repair) .
