Mirror Replacement - Power



MIRROR REPLACEMENT - POWER

REMOVAL PROCEDURE

CAUTION: Refer to Express Down Feature Caution in Service Precautions.

1. Remove the door trim panel.

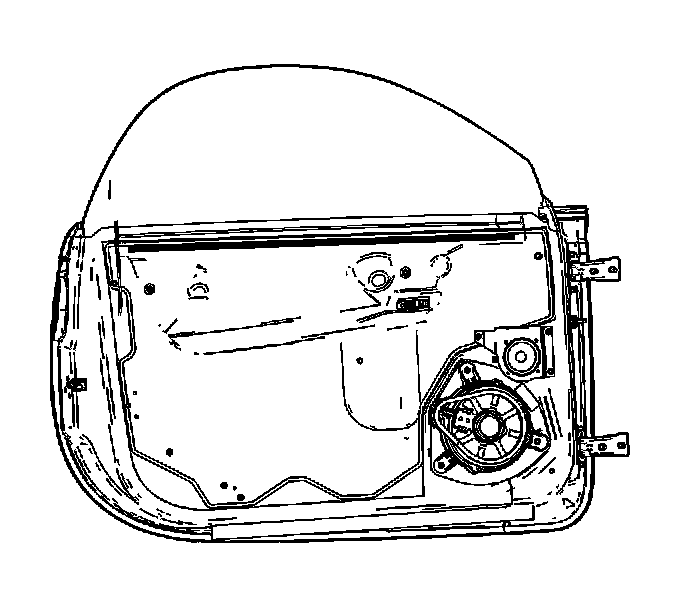

2. Remove the front door water deflector.




3. Raise the window.




4. Disconnect the electrical connector(s).
5. Disconnect the mirror harness from the retainers.
6. Lower the window.

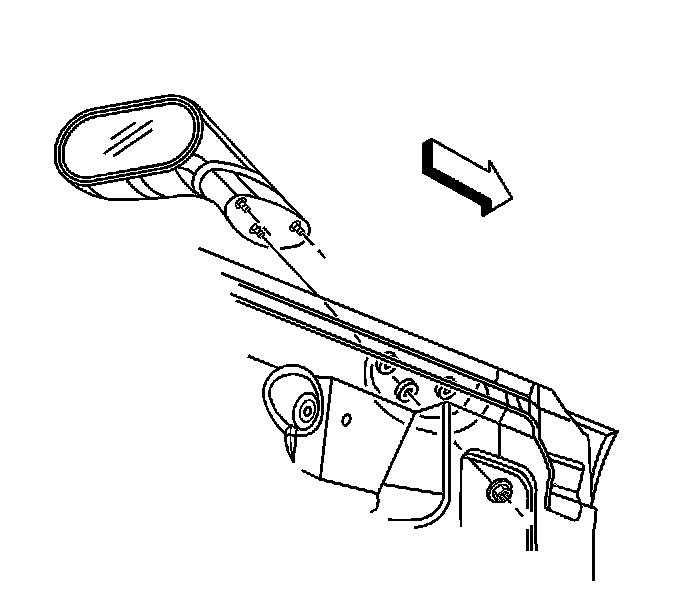

7. Remove the nuts from the power mirror studs.
8. Remove the power mirror with the harness and gasket.

INSTALLATION PROCEDURE

CAUTION: Refer to Express Down Feature Caution in Service Precautions.




1. Position the power mirror with the gasket and harness to the door.
2. Install the nuts to the power mirror.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the power mirror nuts to 10 N.m (89 lb in).




3. Raise the window.
4. Route the harness and secure the harness with the harness retainers.
5. Connect the electrical connector(s).




6. Install the front door water deflector.
7. Install the door trim panel.
