Rearview Mirror Replacement



REARVIEW MIRROR REPLACEMENT

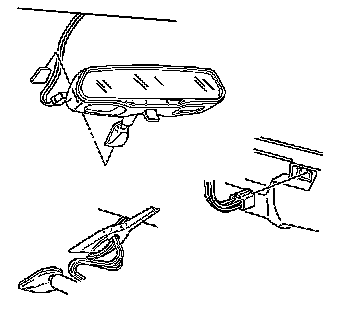

REMOVAL PROCEDURE




1. Remove the wire harness cover from the lighted rearview mirror, if equipped.
2. Use a small flat-bladed tool in order to remove the rearview mirror from the rearview mirror support.
3. Disconnect the electrical connector from the lighted rearview mirror, if equipped.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the lighted rearview mirror, if equipped.
2. Install the rearview mirror into the rearview mirror support.Ensure that the mirror is fully seated.
3. Install the wire harness cover to the lighted rearview mirror, if equipped.
