System Diagram

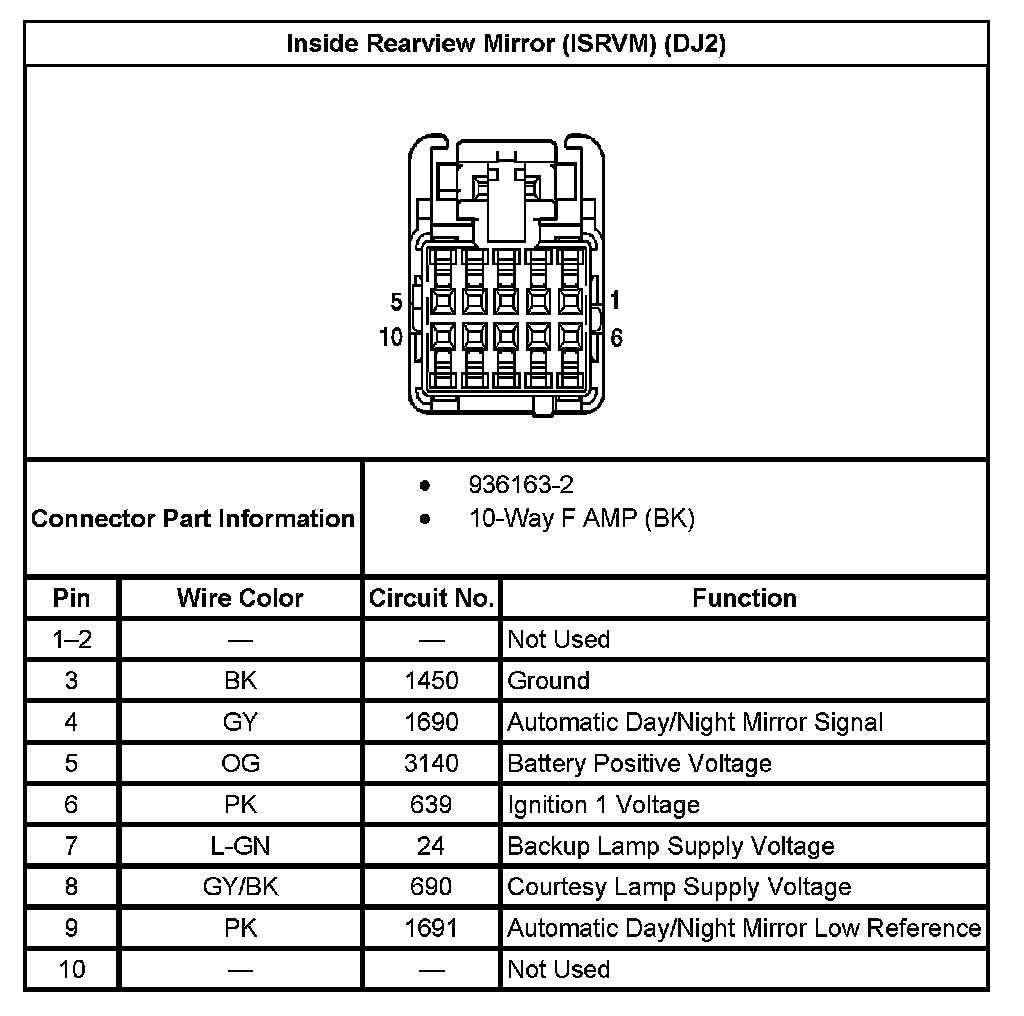

Inside Rearview Mirror (ISRVM) (With RPO Code DJ2):

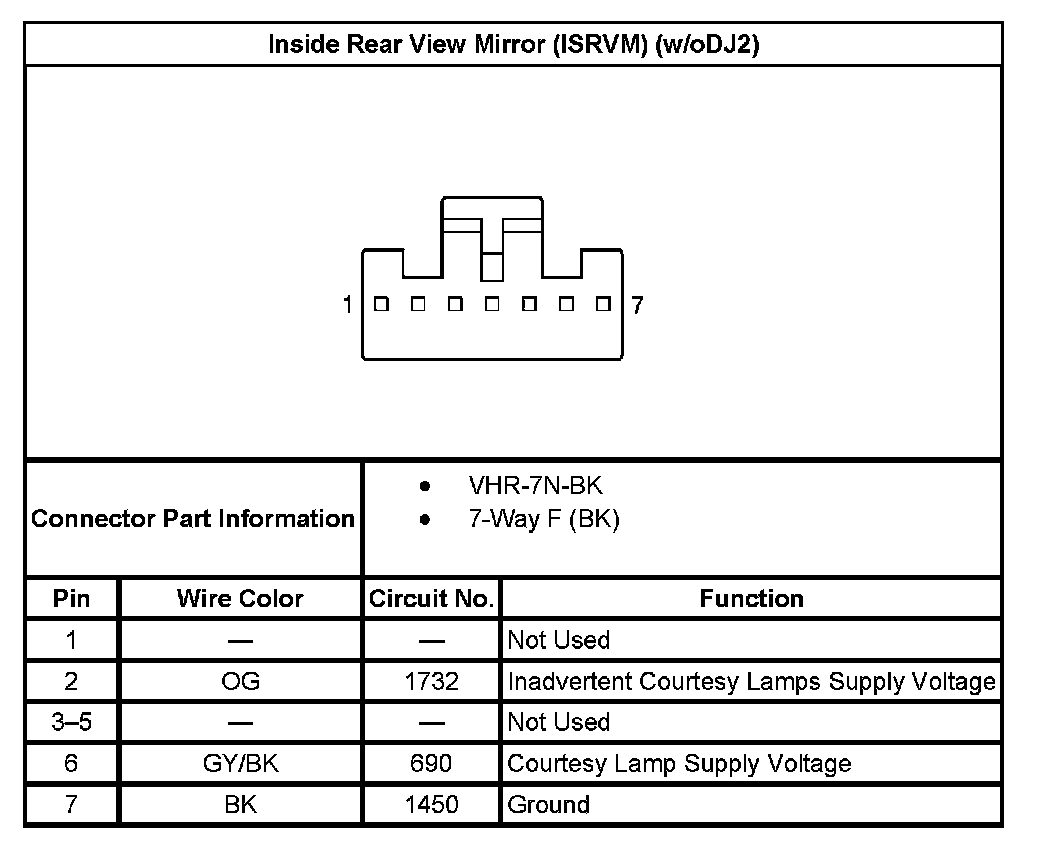

Inside Rear View Mirror (ISRVM) (Without RPO Code DJ2):



Outside Rearview Mirror - Driver:

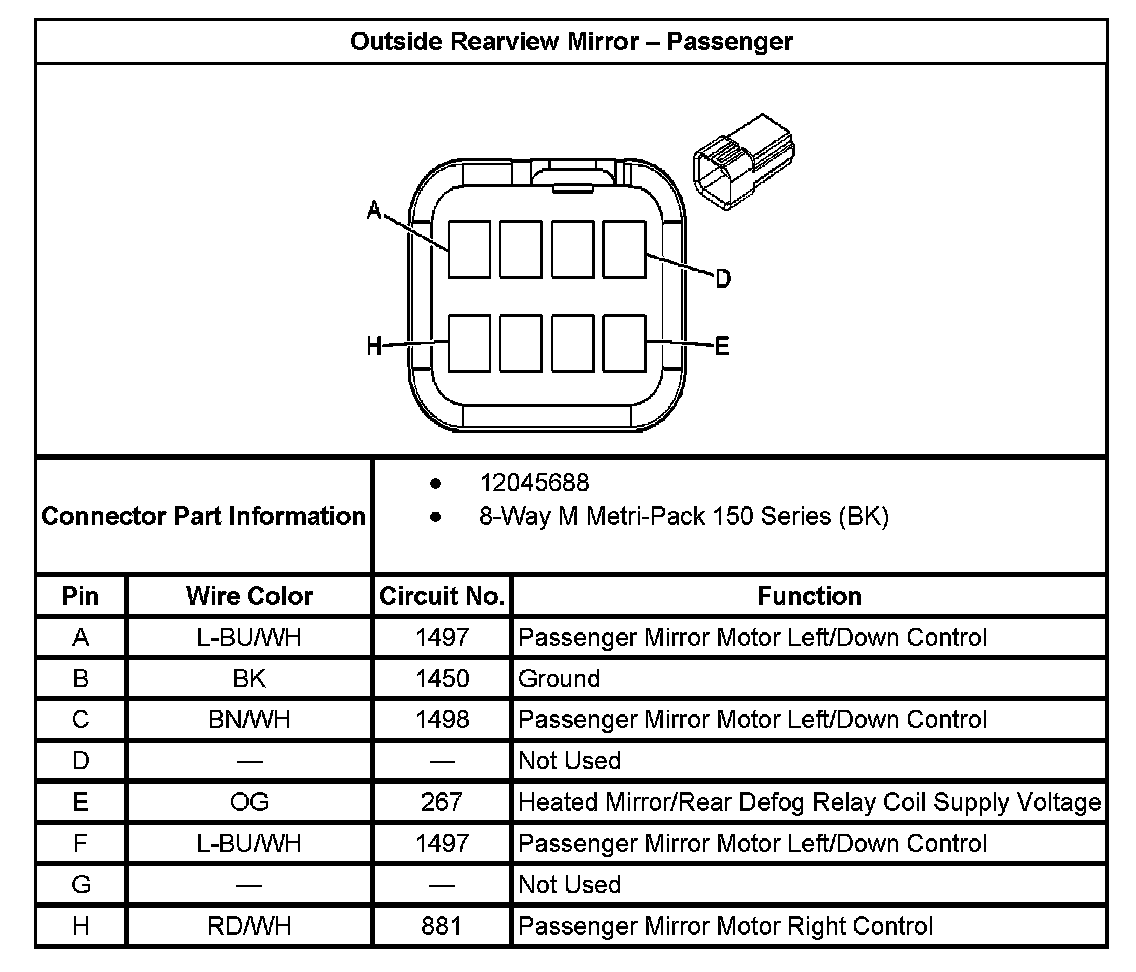

Outside Rearview Mirror - Passenger:



Inside Rearview Mirror (ISRVM) (With RPO Code DJ2):
