Ambient Light Sensor: Service and Repair

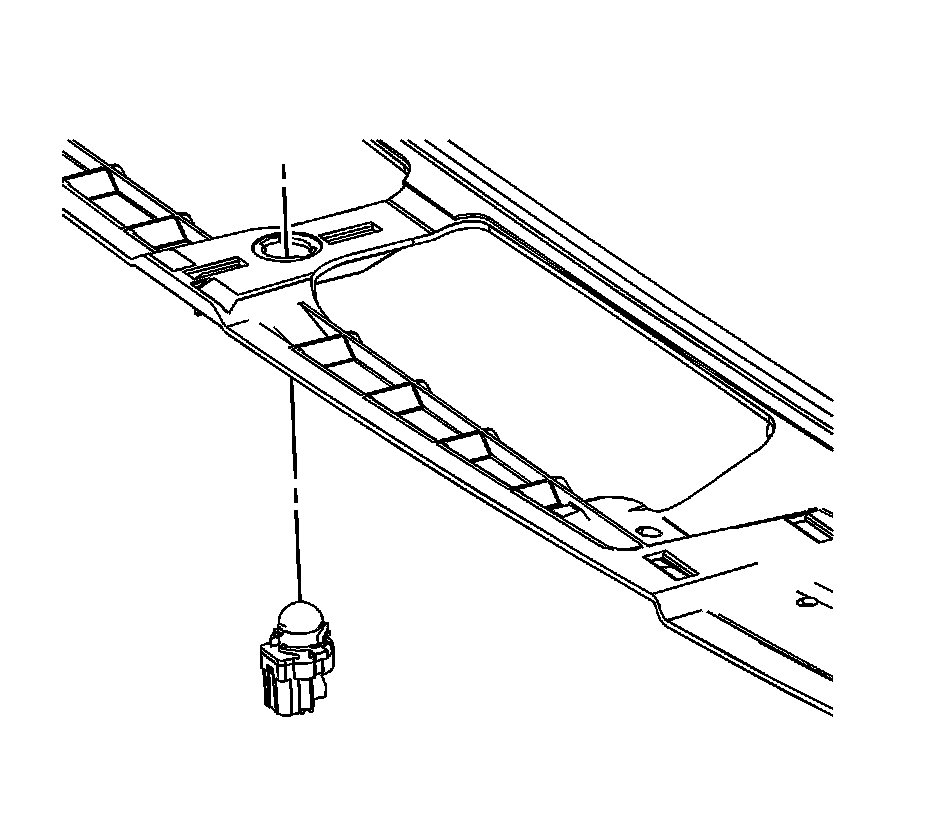

AMBIENT LIGHT SENSOR REPLACEMENT

REMOVAL PROCEDURE

1. Remove the upper instrument panel (I/P) trim panel.
2. Disconnect the electrical connector from the light sensor.
3. Twist the light sensor in order to release it from the upper trim panel.

INSTALLATION PROCEDURE

1. Twist the light sensor in order to secure it to the upper trim panel.
2. Connect the electrical connector to the light sensor.
3. Install the upper I/P trim panel.
