Data Link Connector: Locations

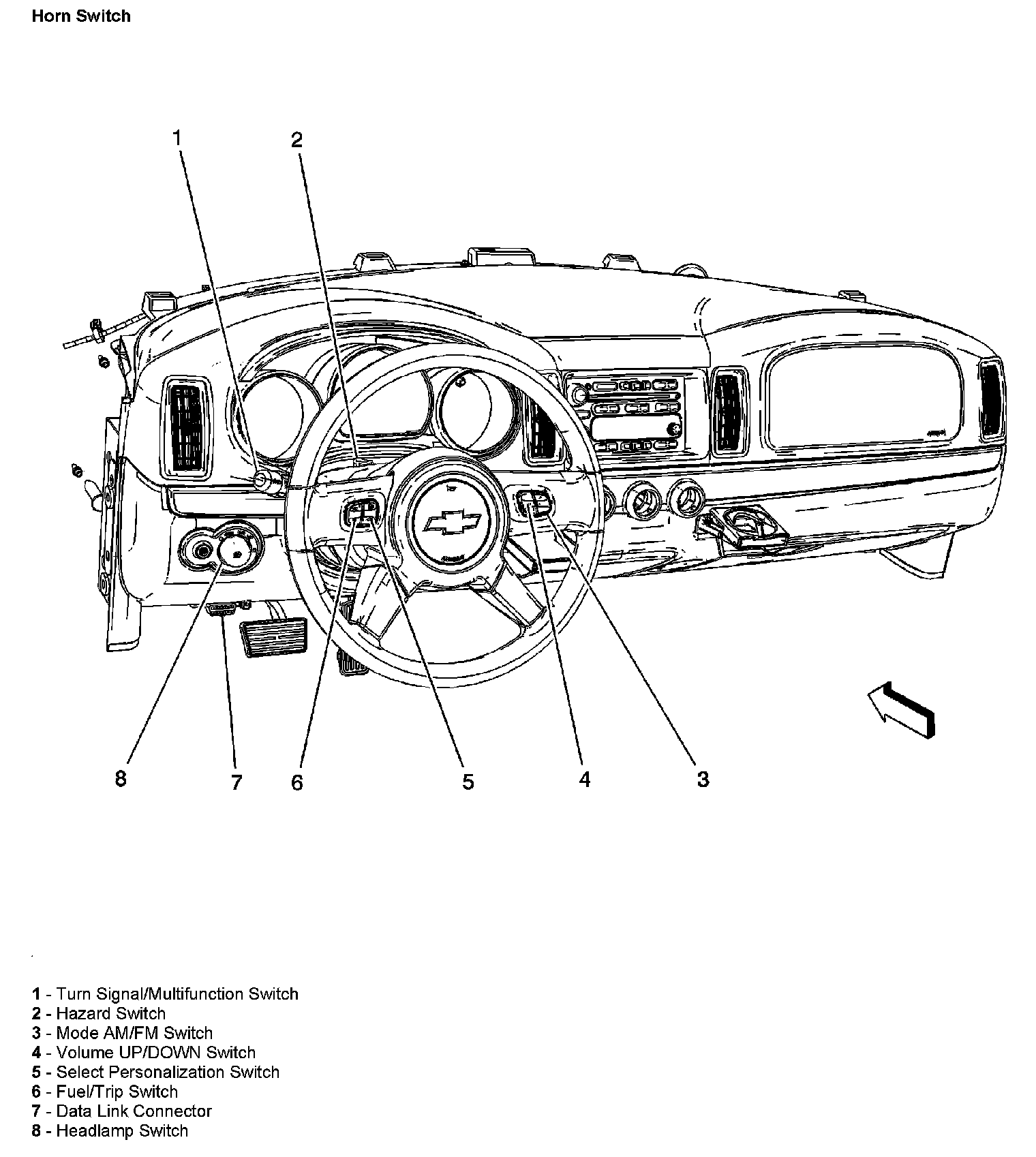

Horn Switch:

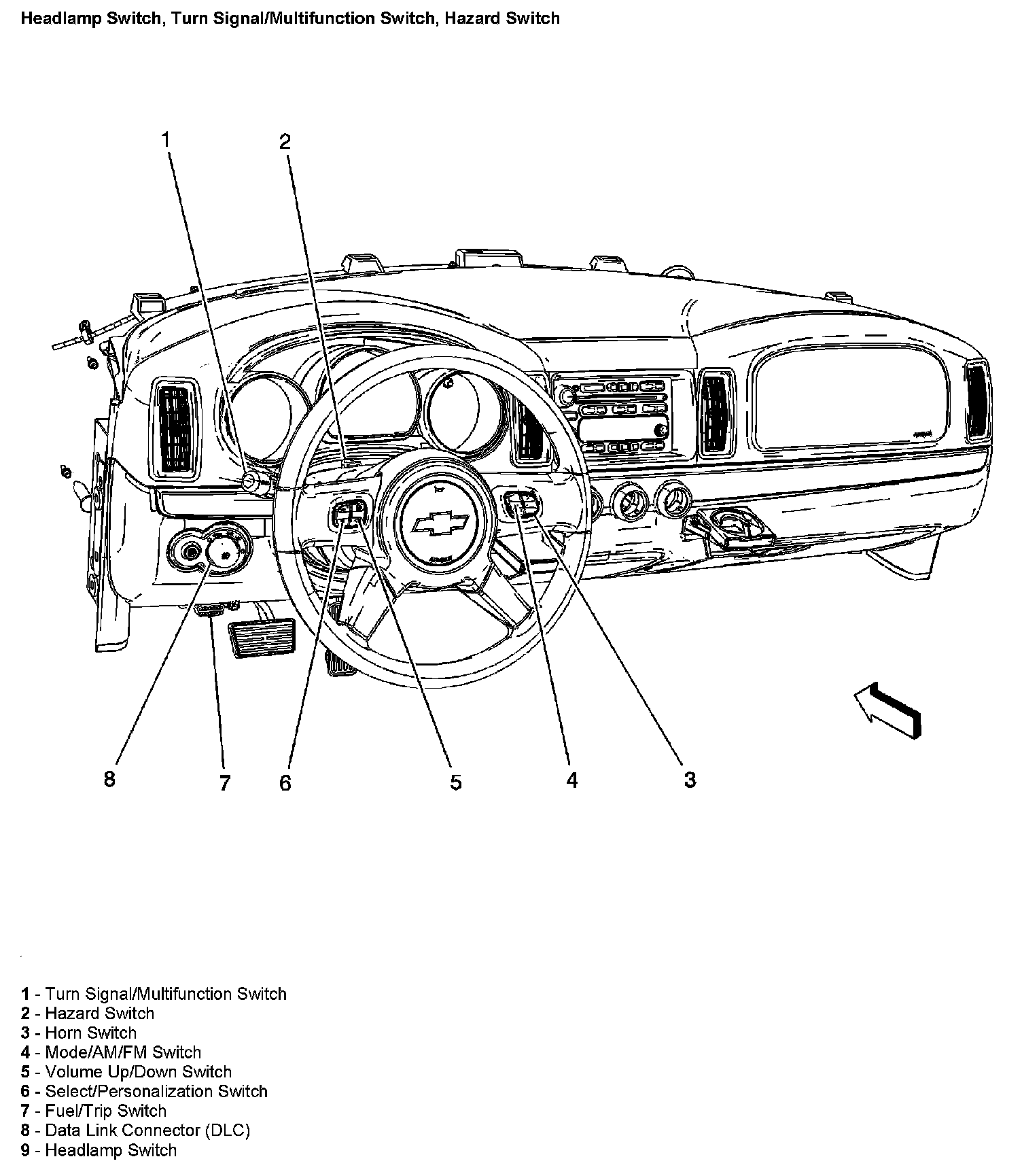

Headlamp Switch, Turn Signal/Multifunction Switch, Hazard Switch:

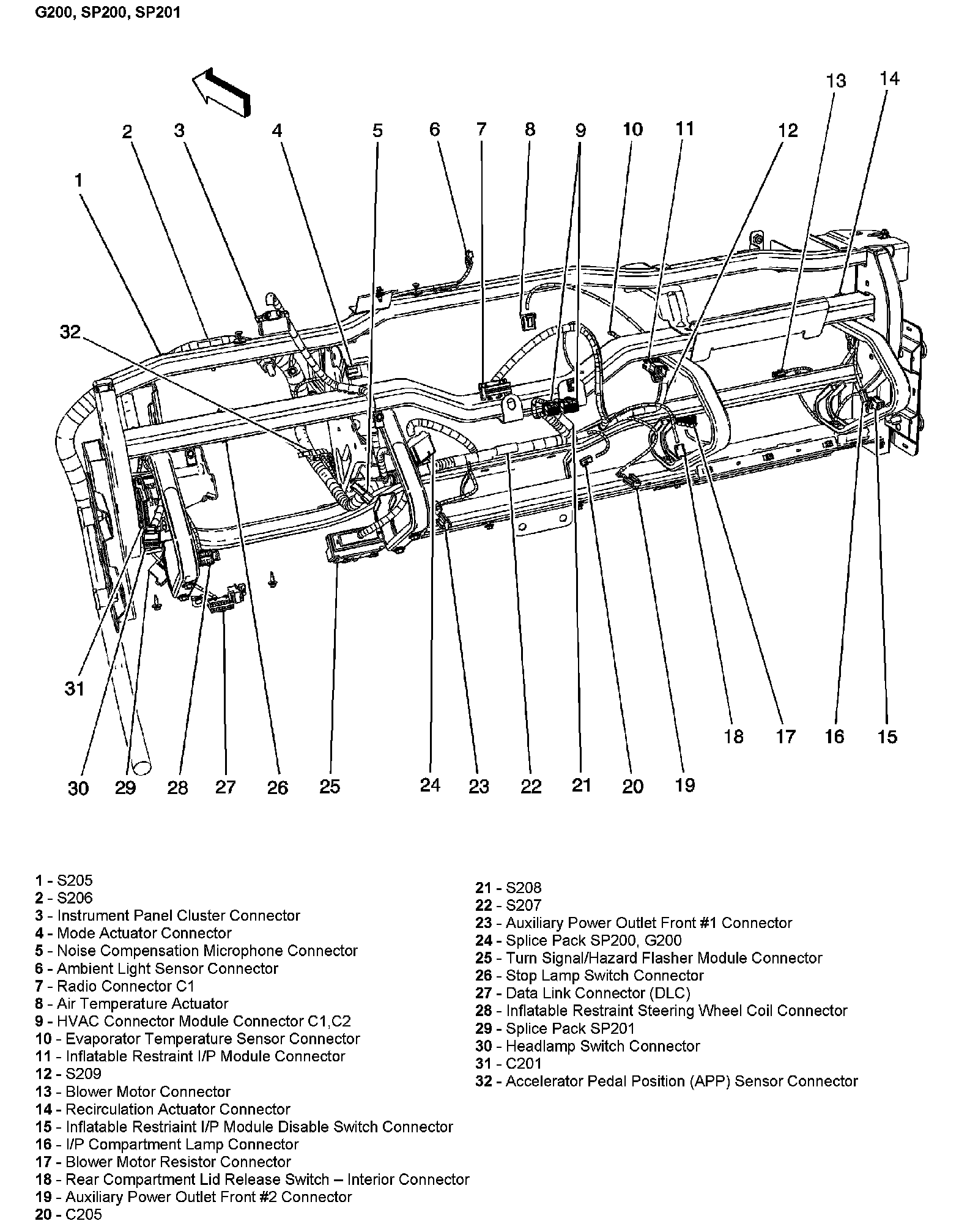

G200, SP200, SP201:
