Fuel Injector Balance Test With Tech 2

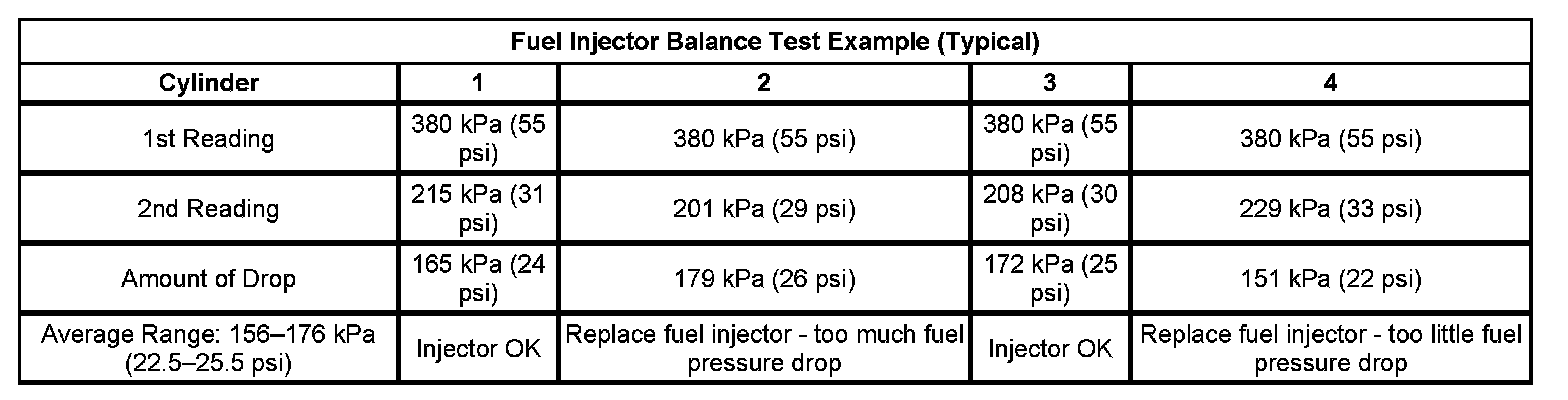

FUEL INJECTOR BALANCE TEST WITH TECH 2DESCRIPTIONFuel Injector Balance Test Example (Typical):
The scan tool is first used to energize the
fuel pump. The scan tool is then used to pulse each injector for a precise amount of time, allowing a measured amount of fuel into the manifold. This causes a drop in system
fuel pressure that can be recorded and used to compare the flow through each injector.

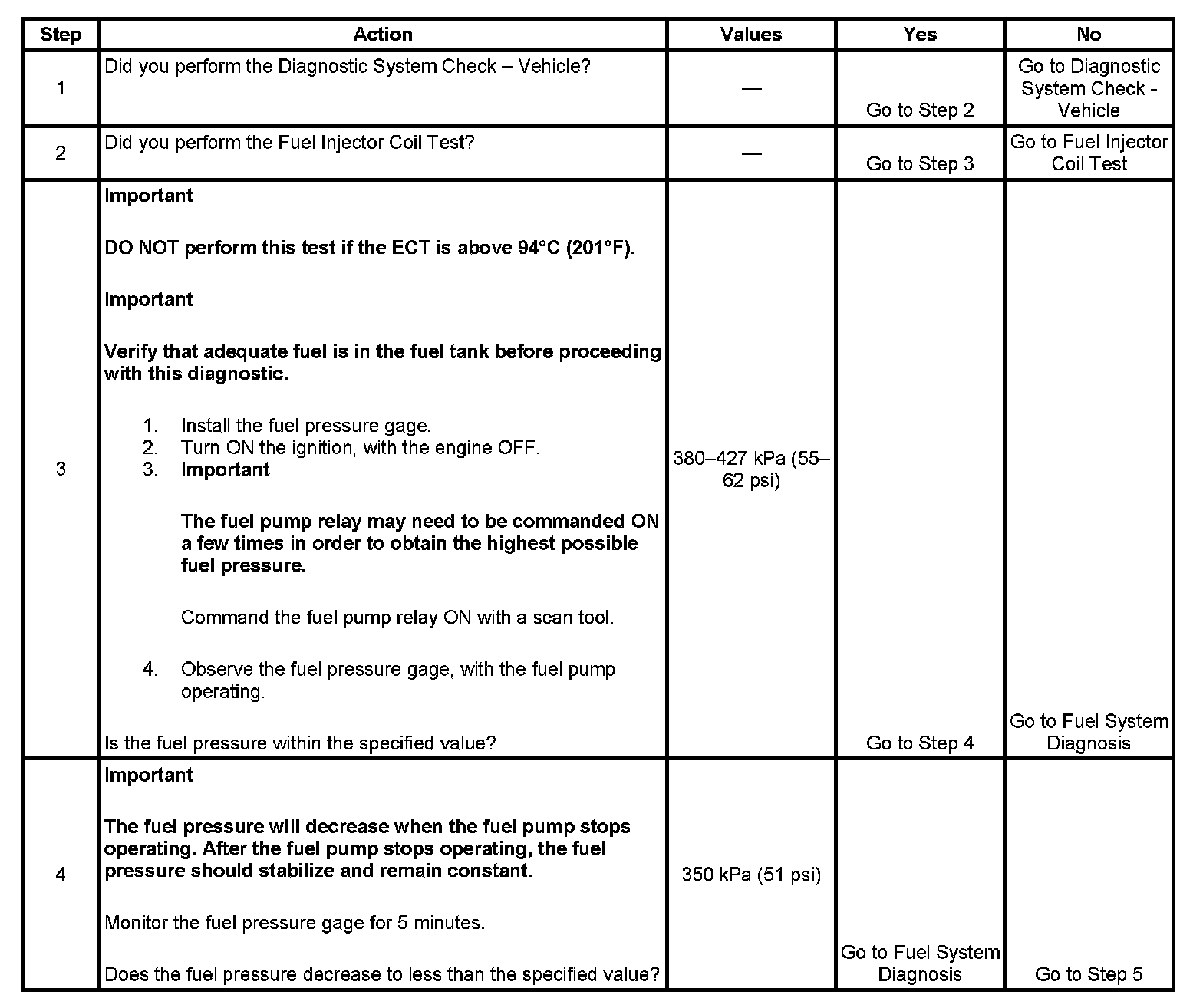

TESTStep 1 - Step 4:

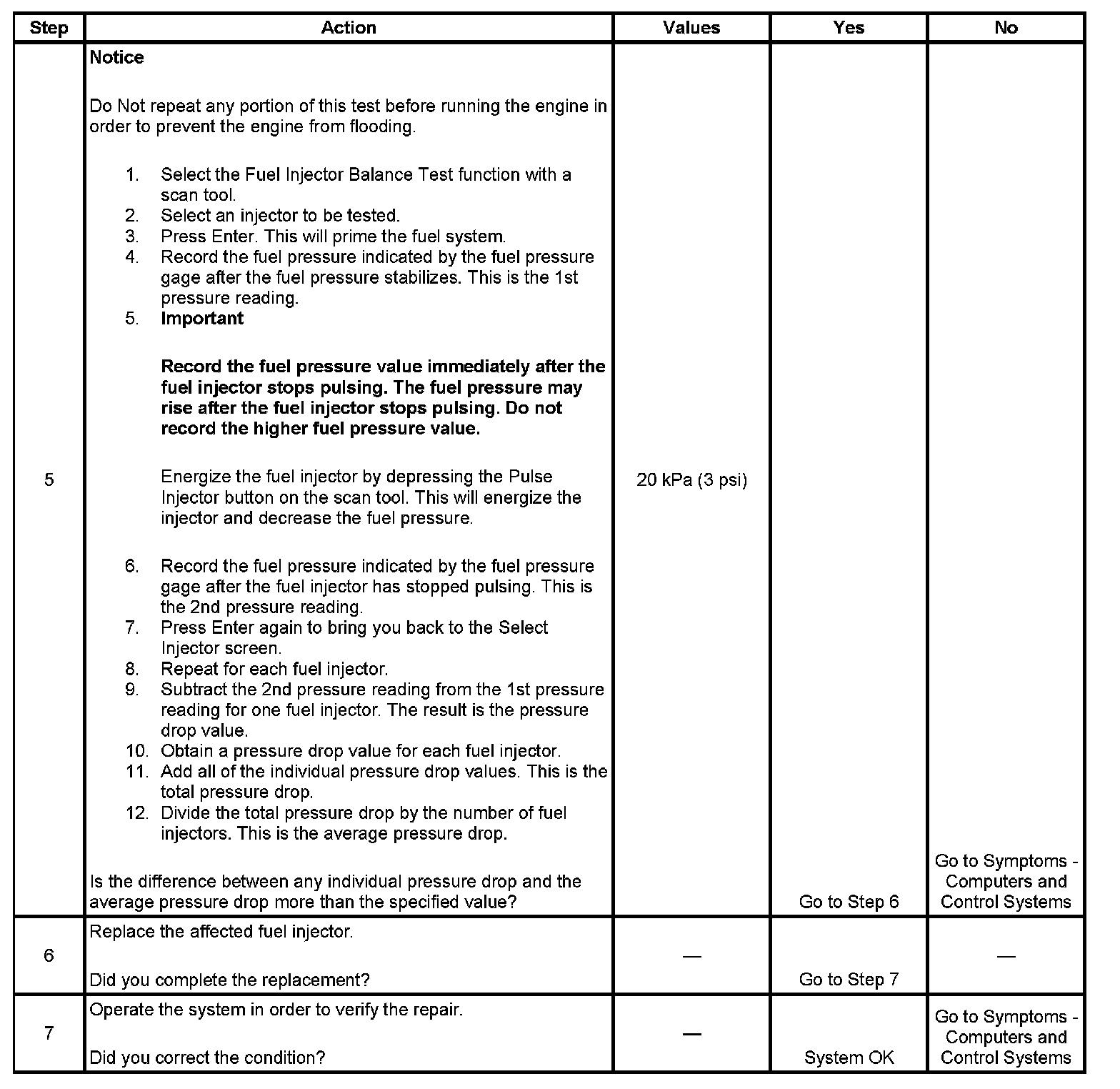

Step 5 - Step 7:
