Shift Lock Control

Automatic Transmission Shift Lock Control Component Views

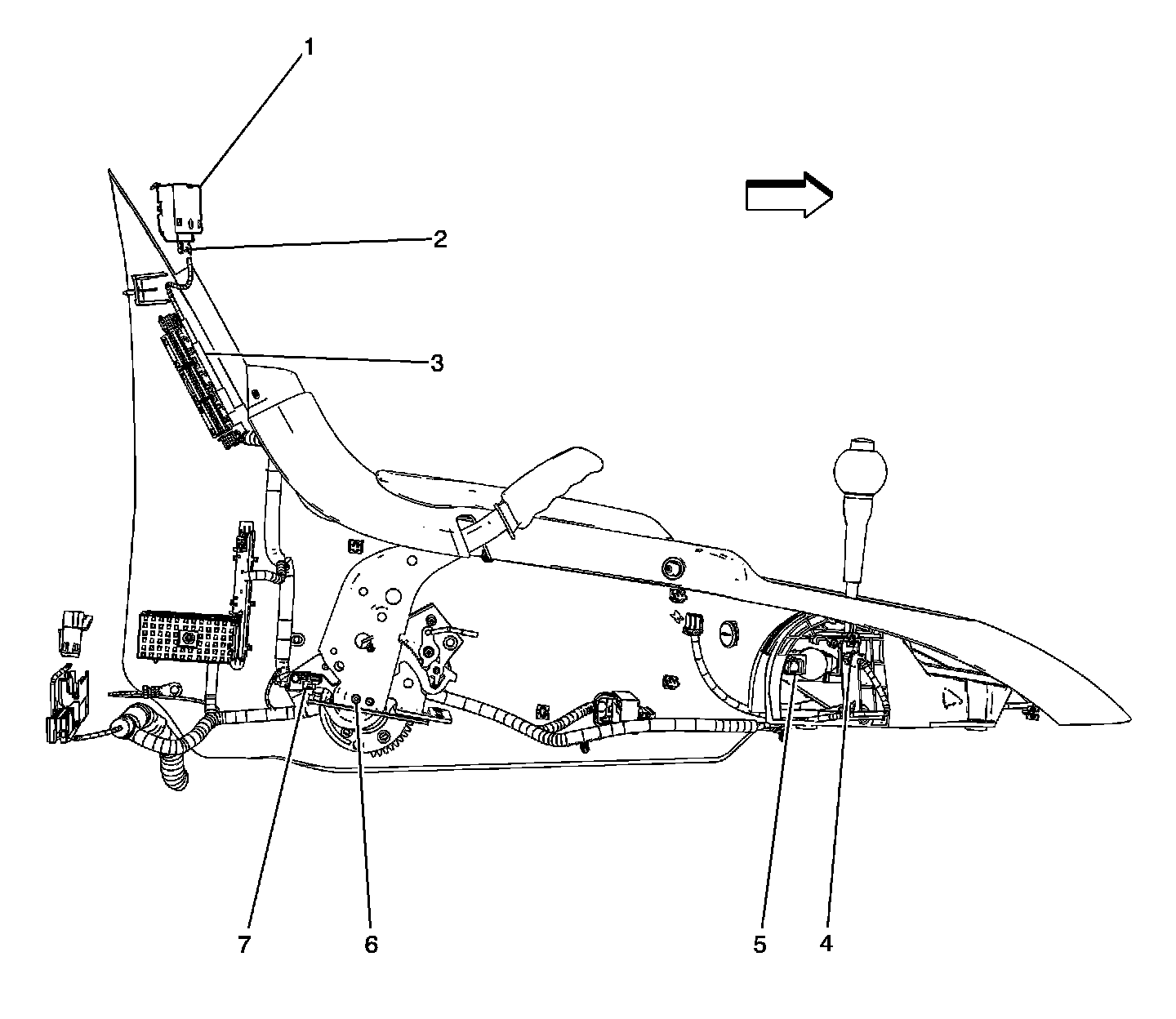

Center Console Components:

Center Console Components

1 - Remote Control Door Lock Receiver (RCDLR)
2 - Remote Control Door Lock Receiver (RCDLR) Connector
3 - Body Control Module (BCM)
4 - Automatic Transmission Shift Lock Actuator Connector
5 - Automatic Transmission Shift Lock Actuator
6 - Park Brake Switch
7 - Park Brake Switch Connector
