20. Oil Filter, Adapter, and Pan Cover Removal

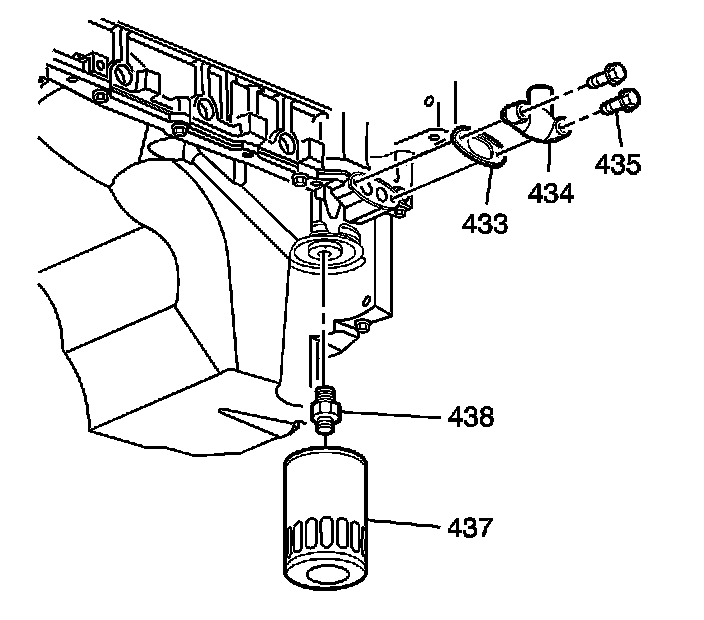

Oil Filter, Adapter and Pan Cover Removal





1. Remove the oil filter.





2. Remove the oil pan cover (434), bolts (435), and gasket (433).
3. Discard the gasket.





4. Remove the oil filter fitting (438) and bypass valve (436), if required.
