Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
Transmission Temperature Sensor/Switch, A/T
>>
Allison - Automatic Transmission
>>
Temperature VS Resistance (Solenoid)
Temperature VS Resistance (Solenoid)

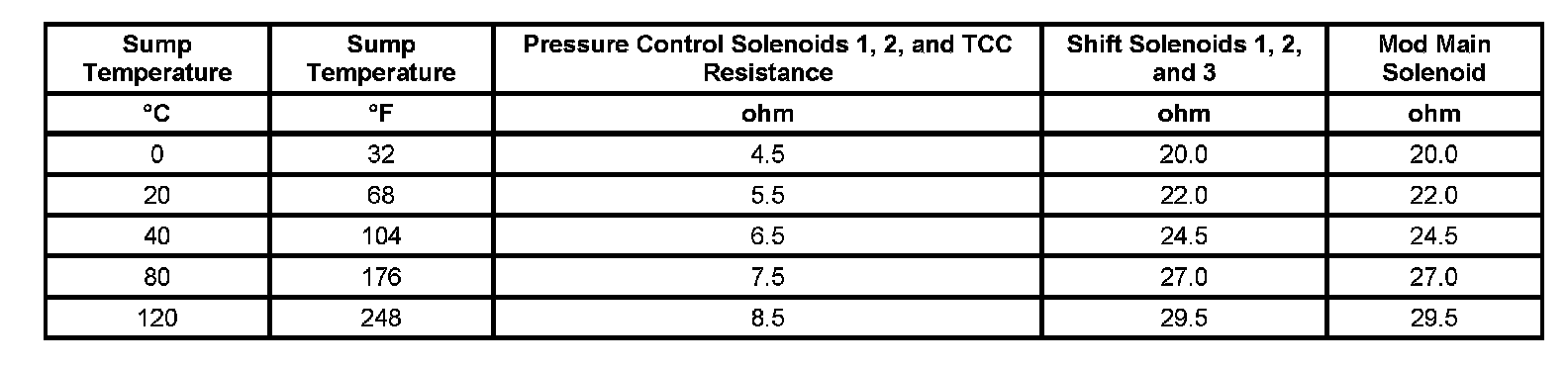

Temperature vs Resistance (Solenoid):
