Rear Axle Shaft Seal and/or Bearing Replacement (W/Rear Drum)

Rear Axle Shaft Seal and/or Bearing Replacement (w/Rear Drum)
^ Tools Required
- J 8092 Universal Driver Handle-3/4 in - 10
- J 21128 Axle Pinion Oil Seal Installer
- J 23690 Axle Shaft Bearing Installer
- J 2619-01 Slide Hammer
- J 44685 Rear Axle Seal and Bearing Remover

Removal Procedure





1. Remove the axle shaft.
2. Remove the axle shaft seal and the bearing from the axle housing using the J 44685 (1) and the J 2619-01 (2).

Installation Procedure





1. Install the axle shaft bearing using the J 23690 (1) and the J 8092 (2).
2. Drive the axle shaft bearing into the axle housing until the tool bottoms against the tube.

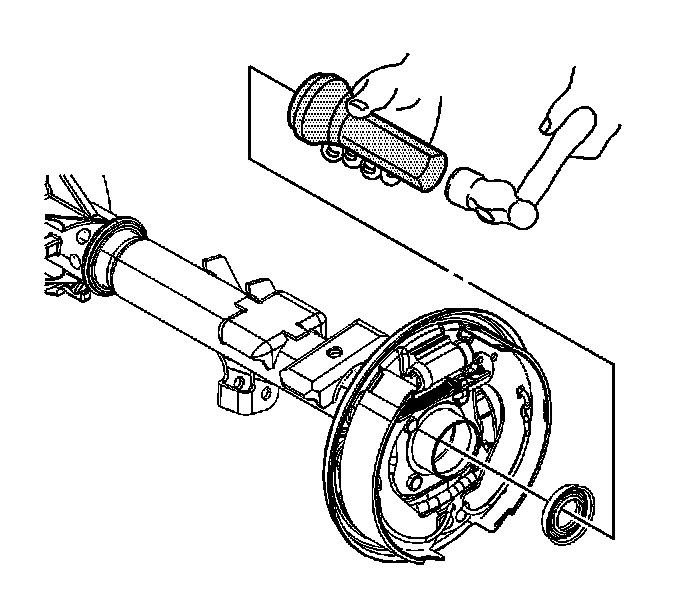

3. Install the axle shaft seal using the J 21128.
4. Drive the tool into the bore until the axle shaft seal bottoms flush with the tube.
5. Install the axle shaft.
