Inflatable Restraint Passenger Presence System (PPS) Module
Inflatable Restraint Passenger Presence System (PPS) Module

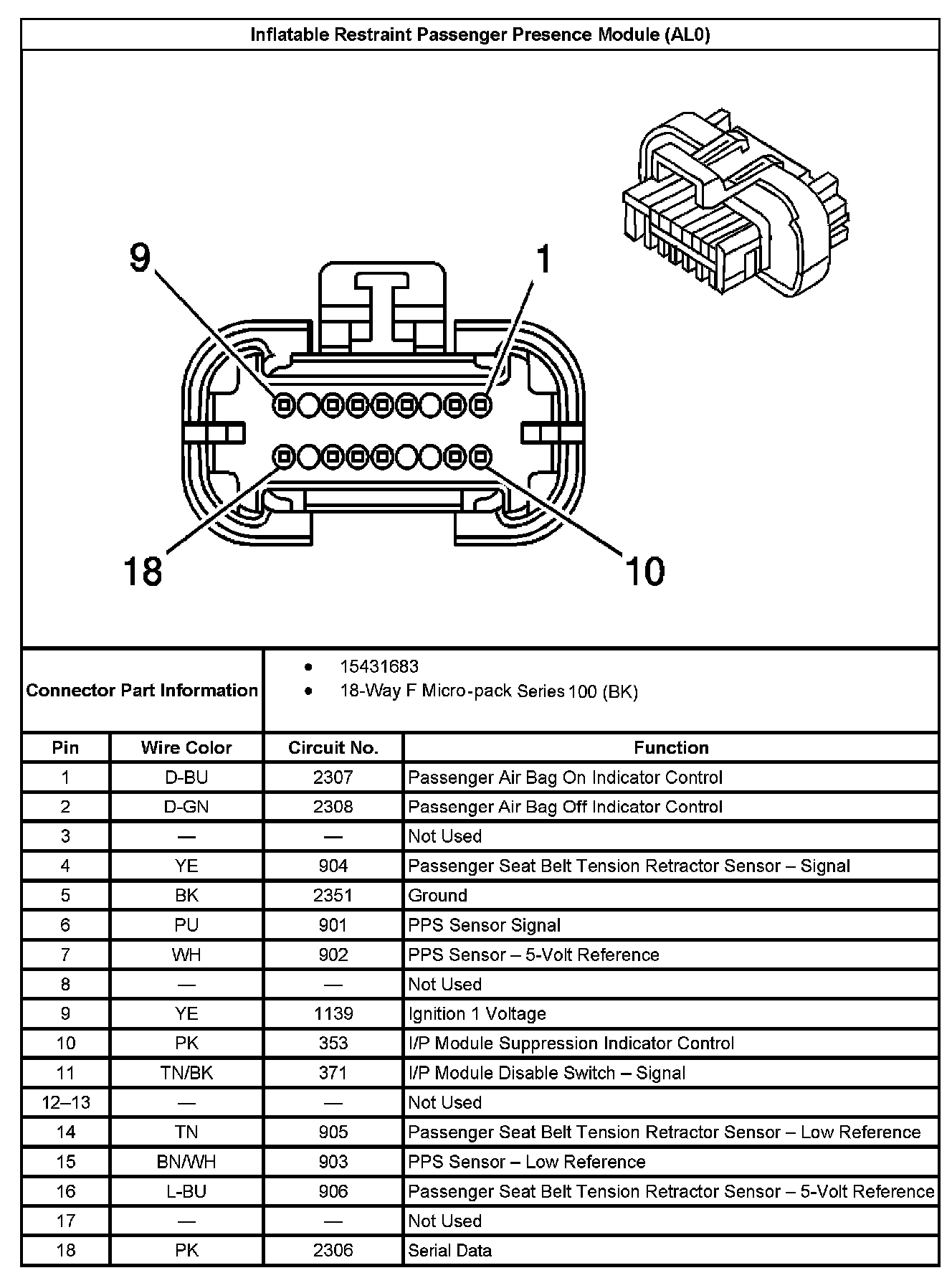

Inflatable Restraint Passenger Presence Module (With RPO Code ALO):
