Trim Panel Replacement - Rear Quarter (Extended Cab)

TRIM PANEL REPLACEMENT - REAR QUARTER (EXTENDED CAB)

REMOVAL PROCEDURE
1. Remove the rear seat, if necessary.
2. Remove the rear window molding.

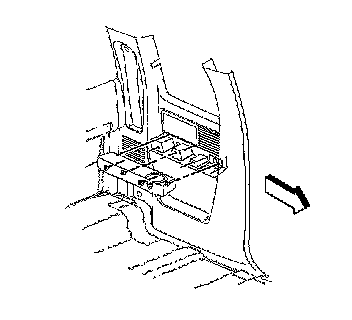

3. Remove the armrest screw.




4. Remove the armrest.
5. Remove the sill trim plates.




6. Remove the quarter panel trim screws.

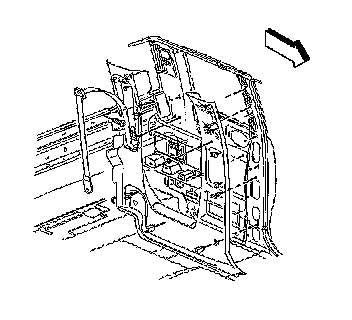

7. Pull the panel out, and remove the seat belt assembly.
8. Remove the quarter panel from the vehicle.

INSTALLATION PROCEDURE
1. Install the seat belt assembly.
2. Install the quarter panel to the vehicle.




3. Install the quarter panel trim screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the quarter panel trim screws to 2 N.m (18 lb in).

4. Install the sill trim plates.




5. Install the armrest.




6. Install the armrest screw.

Tighten the armrest screw to 2 N.m (18 lb in).

7. Install the rear window molding.
8. Install the rear seat if necessary.
