Automatic Transmission Internal Connector End Views (M33 Only)



Automatic Transmission Internal Connector End Views (M33 Only)

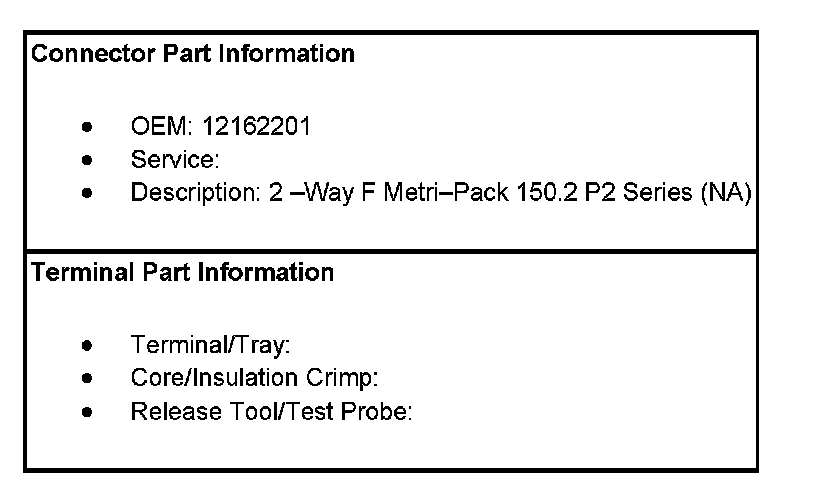

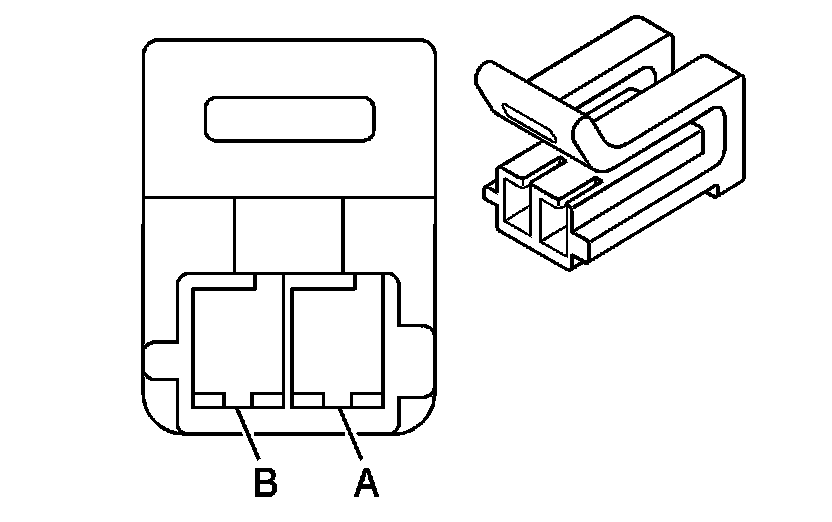

1-2 Shift Solenoid (SS) Valve, Wiring Harness Side:

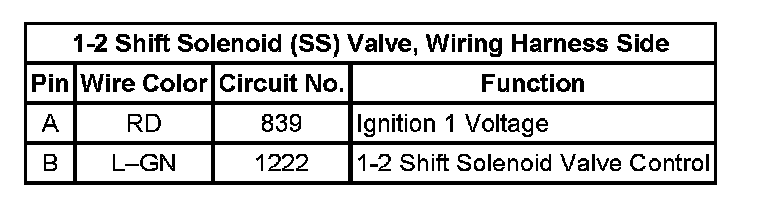

1-2 Shift Solenoid (SS) Valve, Wiring Harness Side

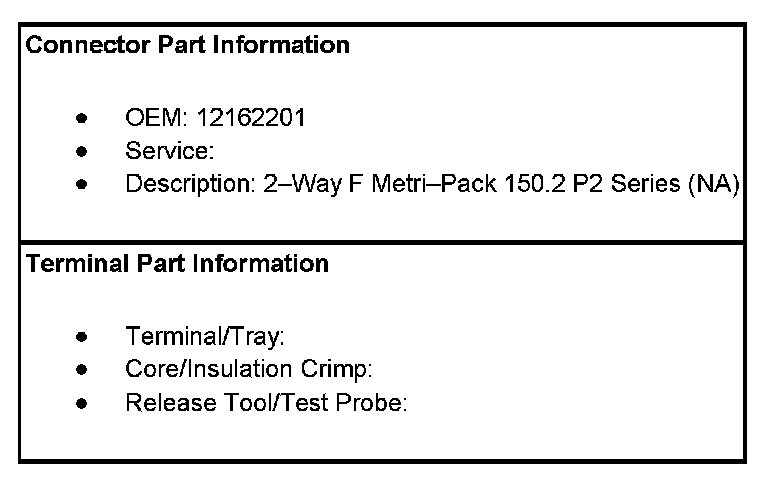

2-3 Shift Solenoid (SS) Valve, Wiring Harness Side:





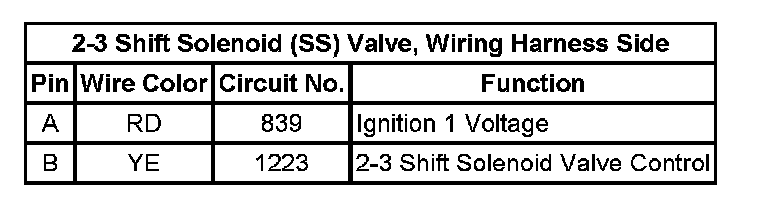

2-3 Shift Solenoid (SS) Valve, Wiring Harness Side

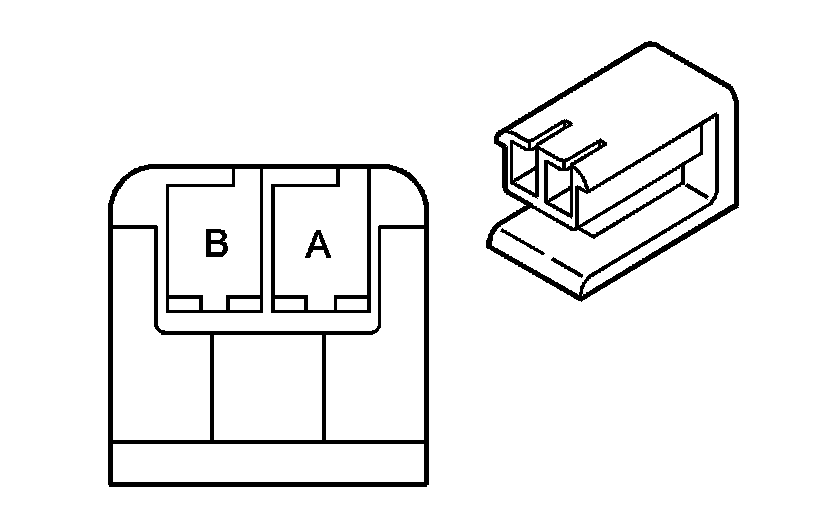

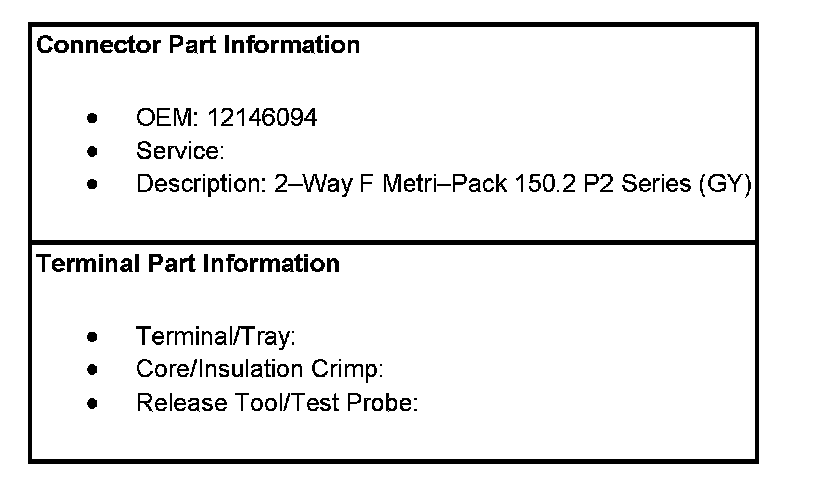

3-2 Shift Solenoid (SS) Valve, Wiring Harness Side:

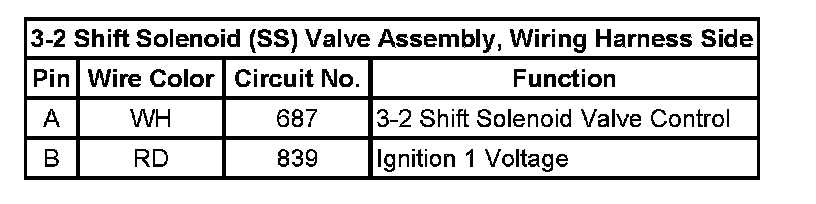

3-2 Shift Solenoid (SS) Valve Assembly, Wiring Harness Side
