Marker Lamp
>>
Roof Marker Lamp
Roof Marker Lamp

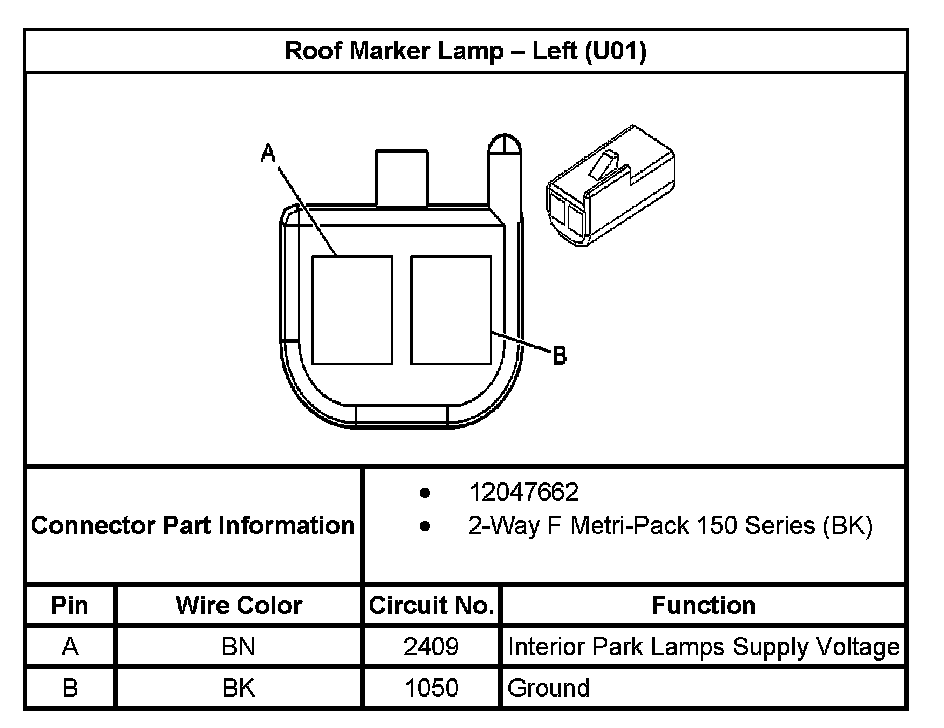

Roof Marker Lamp - Left (With RPO Code U01):

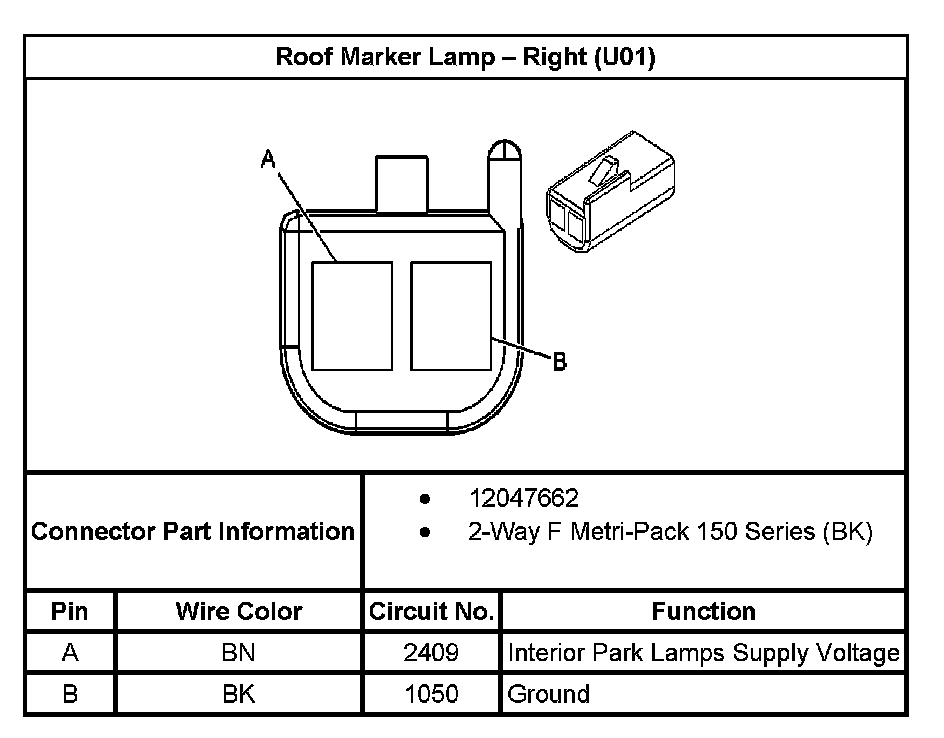

Roof Marker Lamp - Right (With RPO Code U01):
