Temperature VS Resistance (Transmission Fluid Temperature Sensor)
Temperature VS Resistance (Transmission Fluid Temperature Sensor)

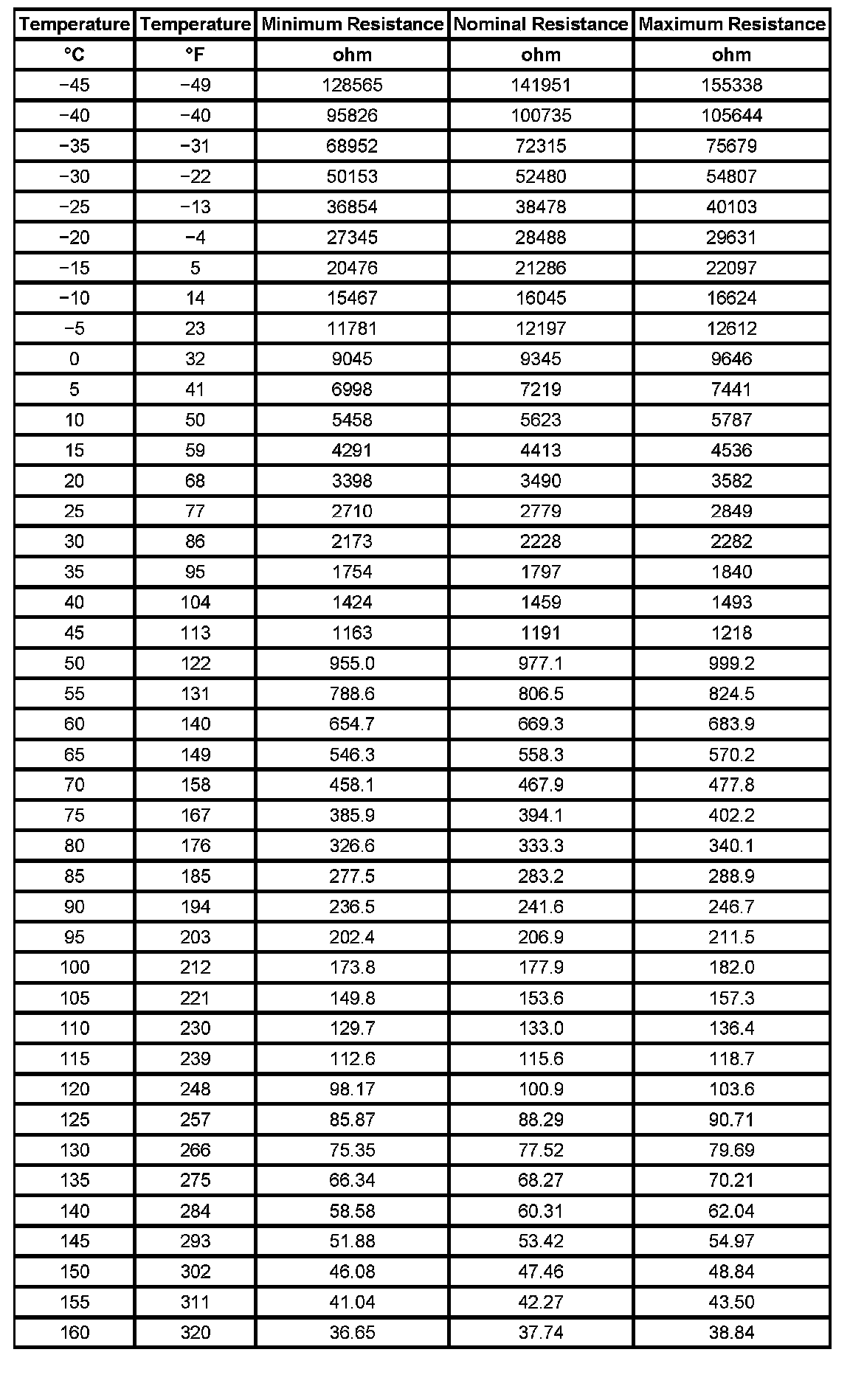

Temperature vs Resistance (Transmission Fluid Temperature Sensor):
