Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2006
>>
Silverado 2500 4WD V8-6.0L (CNG)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Specifications
>>
Mechanical Specifications
>>
Steyr - Transfer Case
>>
General Specifications
General Specifications
General Specifications

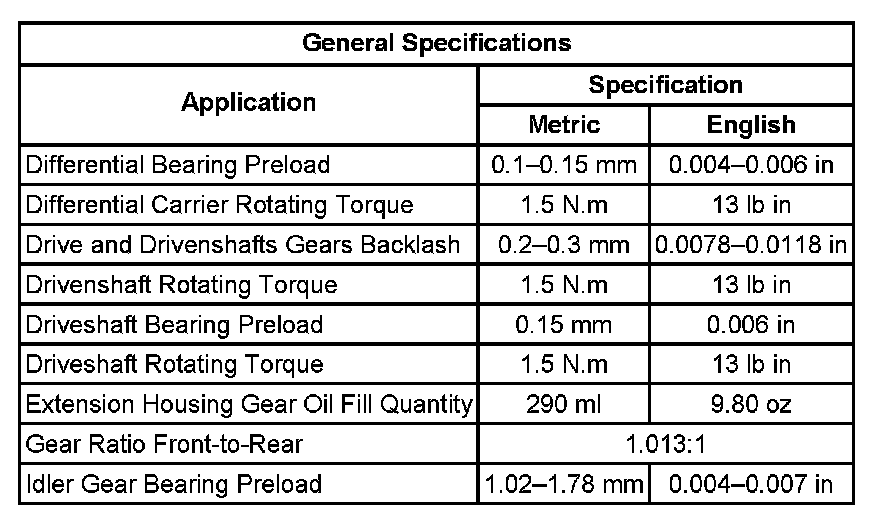

General Specifications:

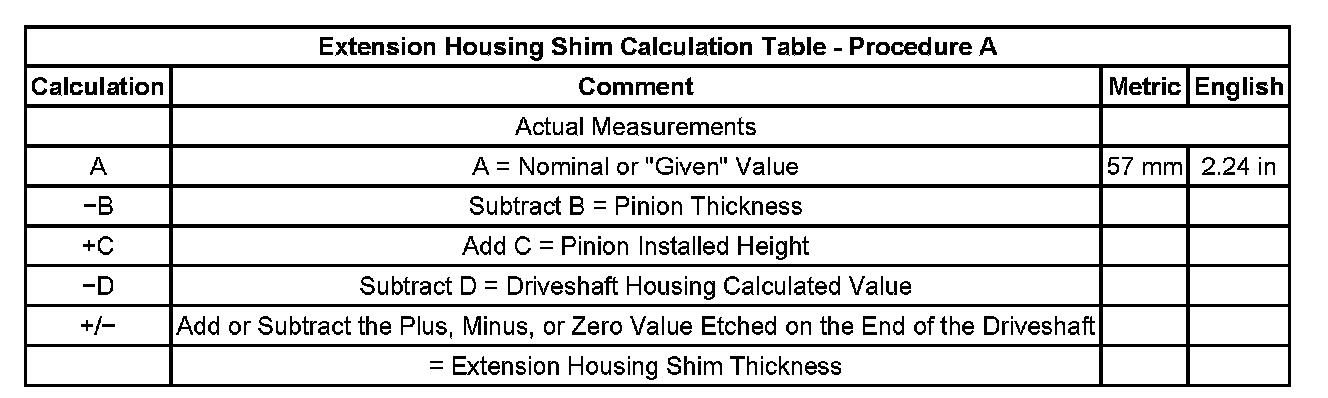

Extension Housing Shim Calculation Table - Procedure A:

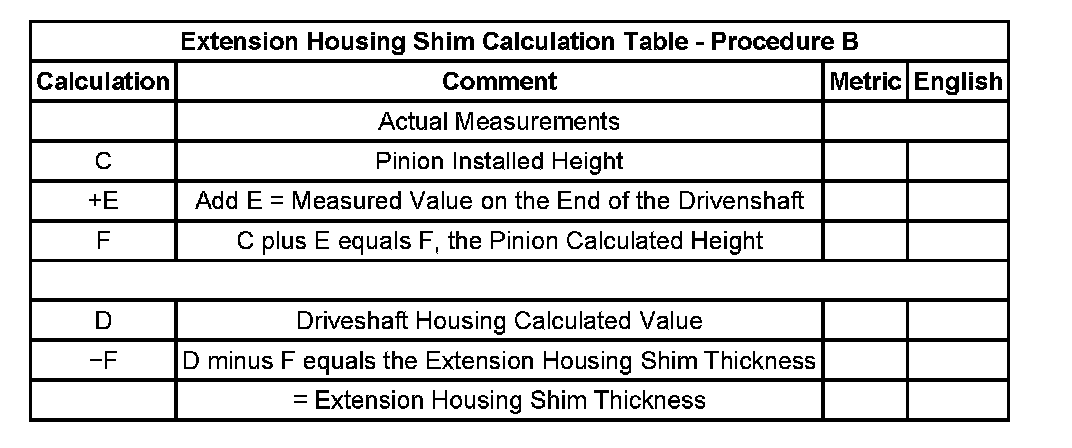

Extension Housing Shim Calculation Table - Procedure B:
