Amplifier, Sound System
Amplifier, Sound System

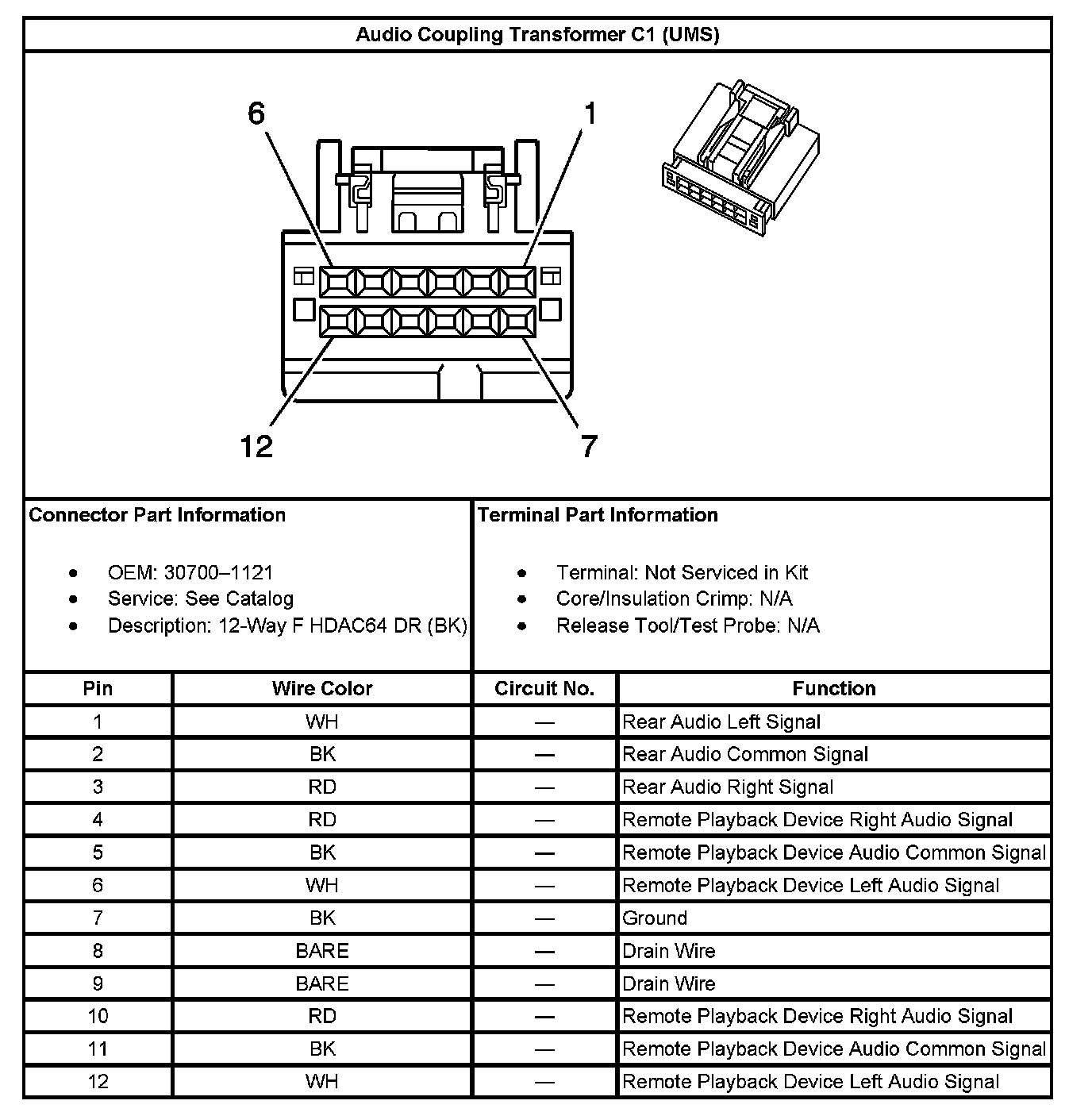

Audio Coupling Transformer C1 (With RPO Code UMS):

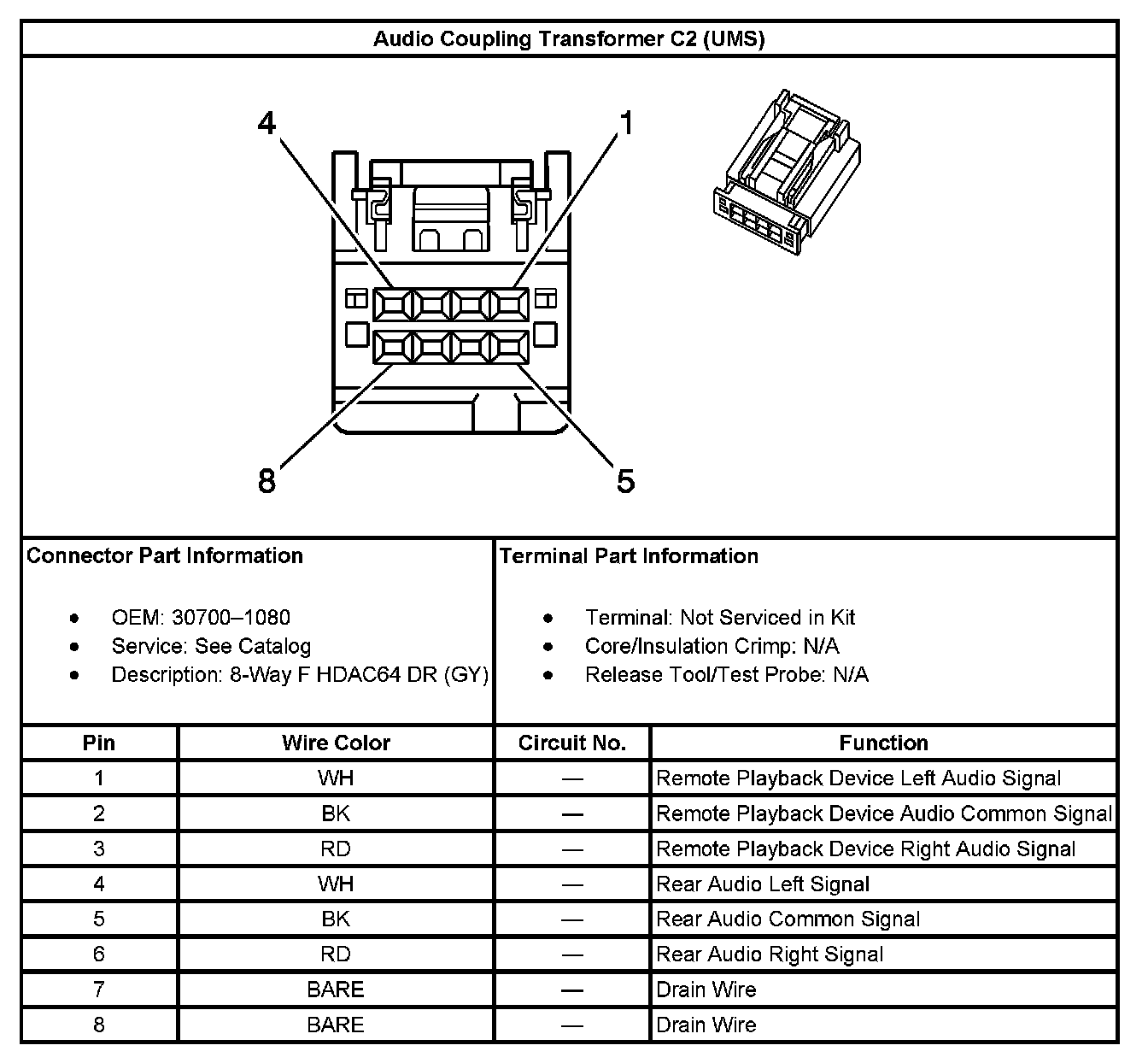

Audio Coupling Transformer C2 (With RPO Code UMS):
