Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2006
>>
Uplander AWD V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Angle Sensor, Traction Control
Steering Angle Sensor, Traction Control
Steering Wheel Speed Position Sensor (JL4)

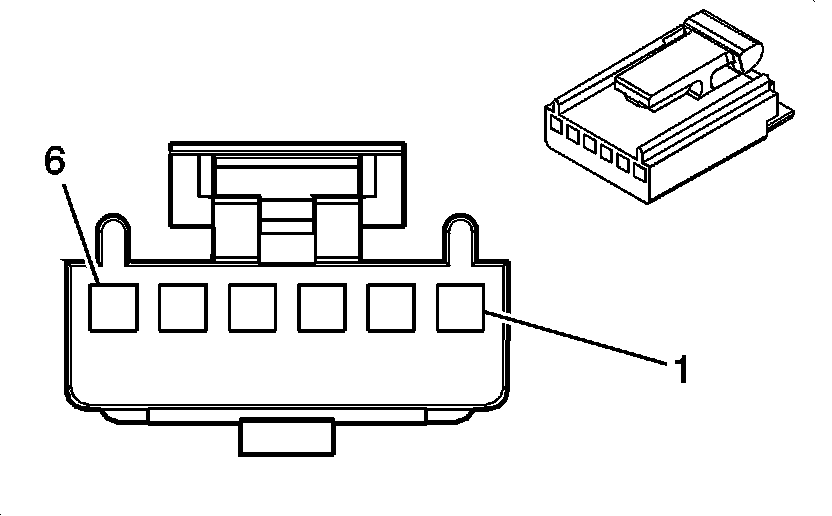

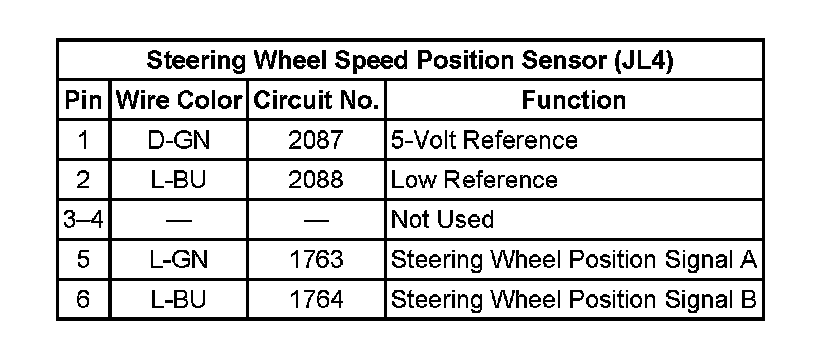

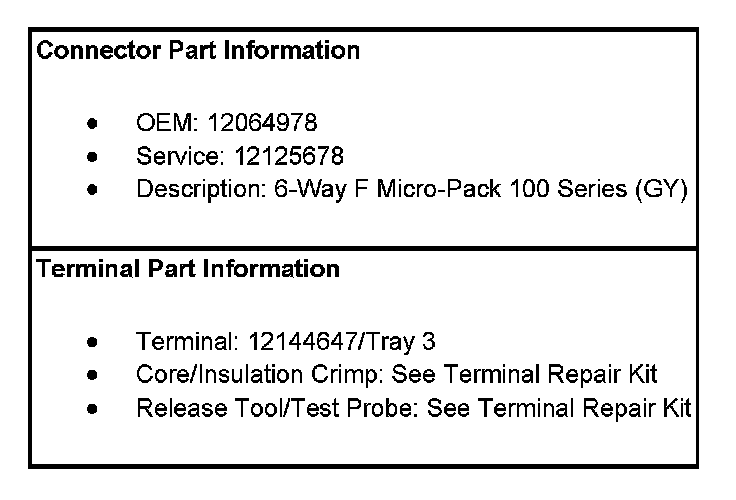

Steering Wheel Speed Position Sensor (JL4):
Steering Wheel Speed Position Sensor (JL4):
