Quarter Window Replacement



Quarter Window Replacement

Removal Procedure

1. Remove the upper garnish molding from the body side rear. Refer to Trim Panel Replacement - Body Lock Pillar Upper (Service and Repair) in Interior Trim.

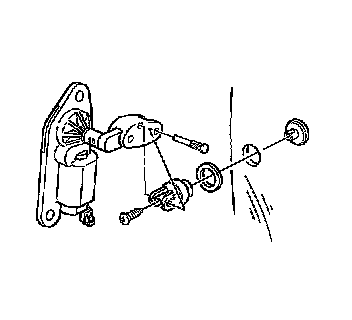

2. Remove the bearing bushing screw.




3. Remove the retaining nuts from the hinge studs on the rear quarter window.
4. Remove the rear quarter window from the vehicle.



Installation Procedure

1. Install the rear quarter window to the vehicle.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the retaining nuts to the hinge studs on the rear quarter window.

Tighten the nuts to 10 N.m (89 lb in).





3. Install the bearing bushing retaining screw.

Tighten the screw to 2 N.m (18 lb in).

4. Install the upper garnish molding top the body side rear. Refer to Trim Panel Replacement - Body Lock Pillar Upper (Service and Repair) in Interior Trim.
