Drivetrain and Front Suspension Frame Reinforcement Replacement


Drivetrain and Front Suspension Frame Reinforcement Replacement


Removal Procedure





1.Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

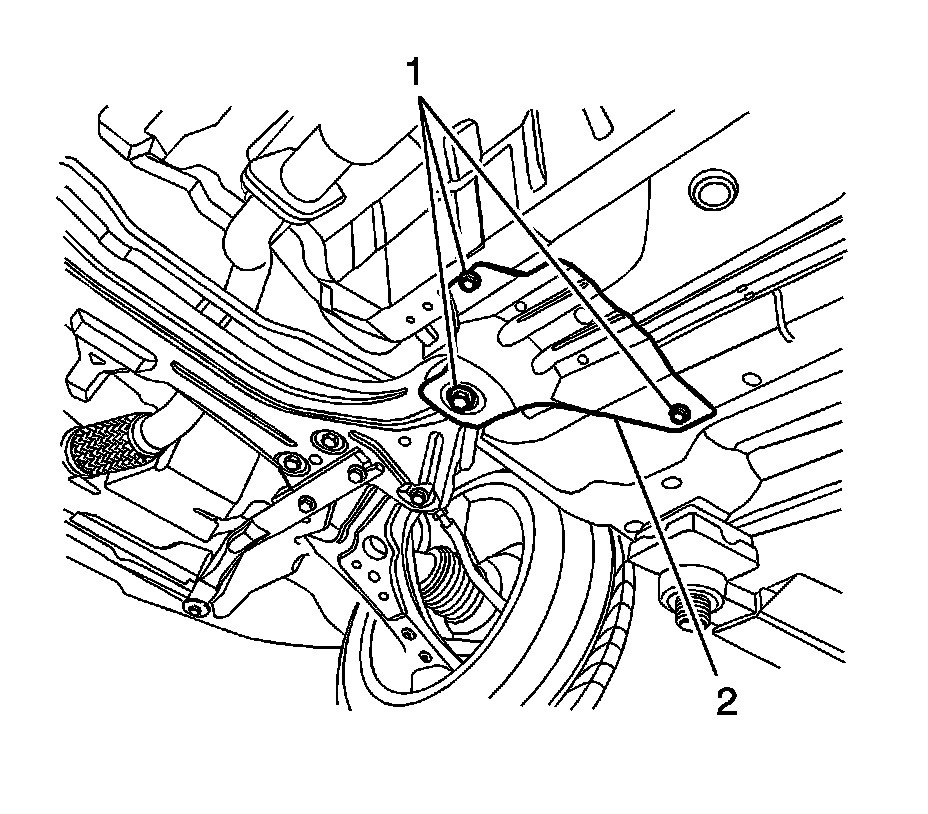

2.Remove the bolts (1) from the frame reinforcement (2).

3.Remove the frame reinforcement (2) from the vehicle.

Installation Procedure





1.Install the frame reinforcement (2) from the vehicle.

Caution:Refer to Fastener Caution .

2.Install the bolts (1) to the frame reinforcement (2) and tighten to50 N �m (37 lb ft).

3.Lower the vehicle.
