Symptom Related Diagnostic Procedures

Symptoms - Disc Brakes

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom.

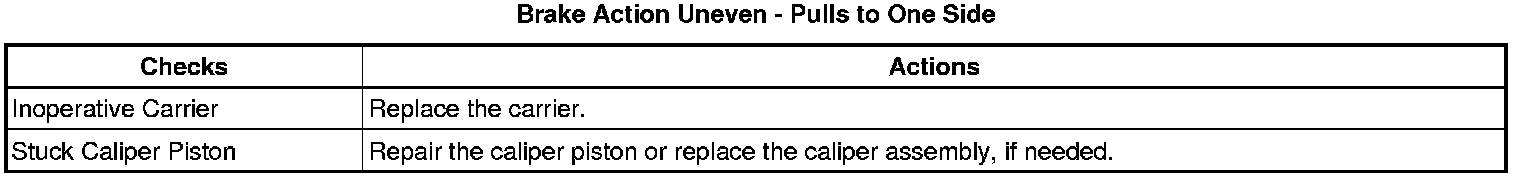

* Brake Action Uneven - Pulls to One Side

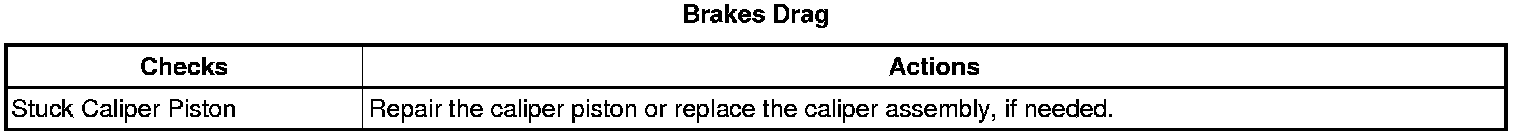

* Brakes Drag

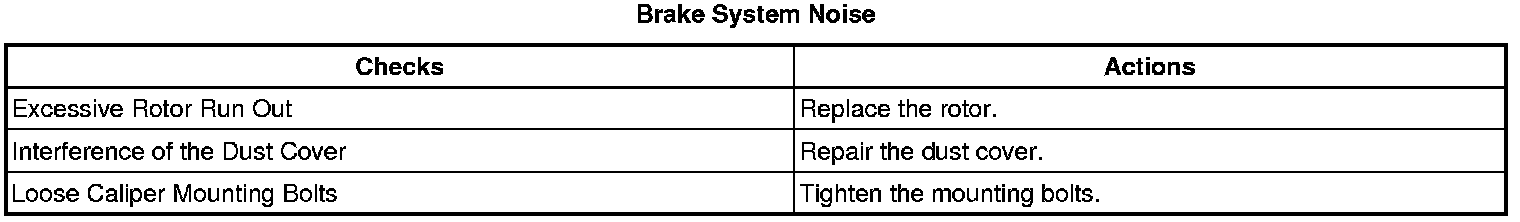

* Brake System Noise
