Transmission Pressure Test Port: Service and Repair

Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

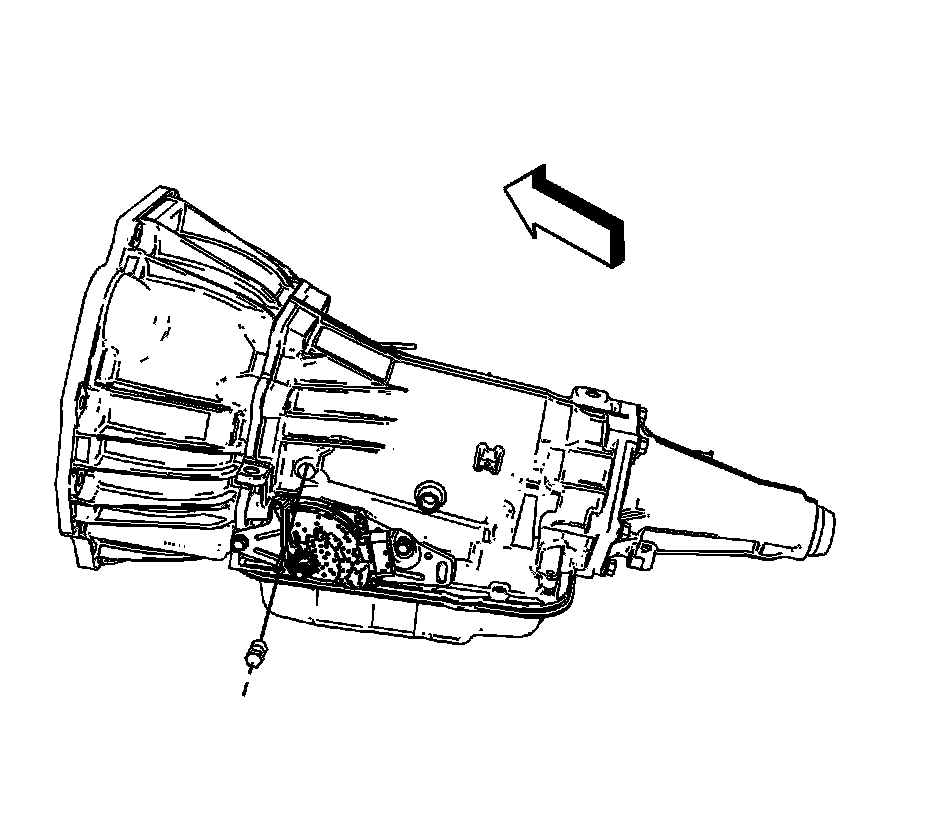

2. Remove the oil pressure test plug.

Installation Procedure





Caution: Refer to Component Fastener Tightening Caution (Component Fastener Tightening Caution).

1. Install an oil pressure test plug and tighten to 8 Nm (71 lb in).
2. Check the transmission fluid level, fill if necessary. Refer to Transmission Fluid Check (Transmission Fluid Checking Procedure).
3. Lower the vehicle.
