Speaker




Component Connector End Views

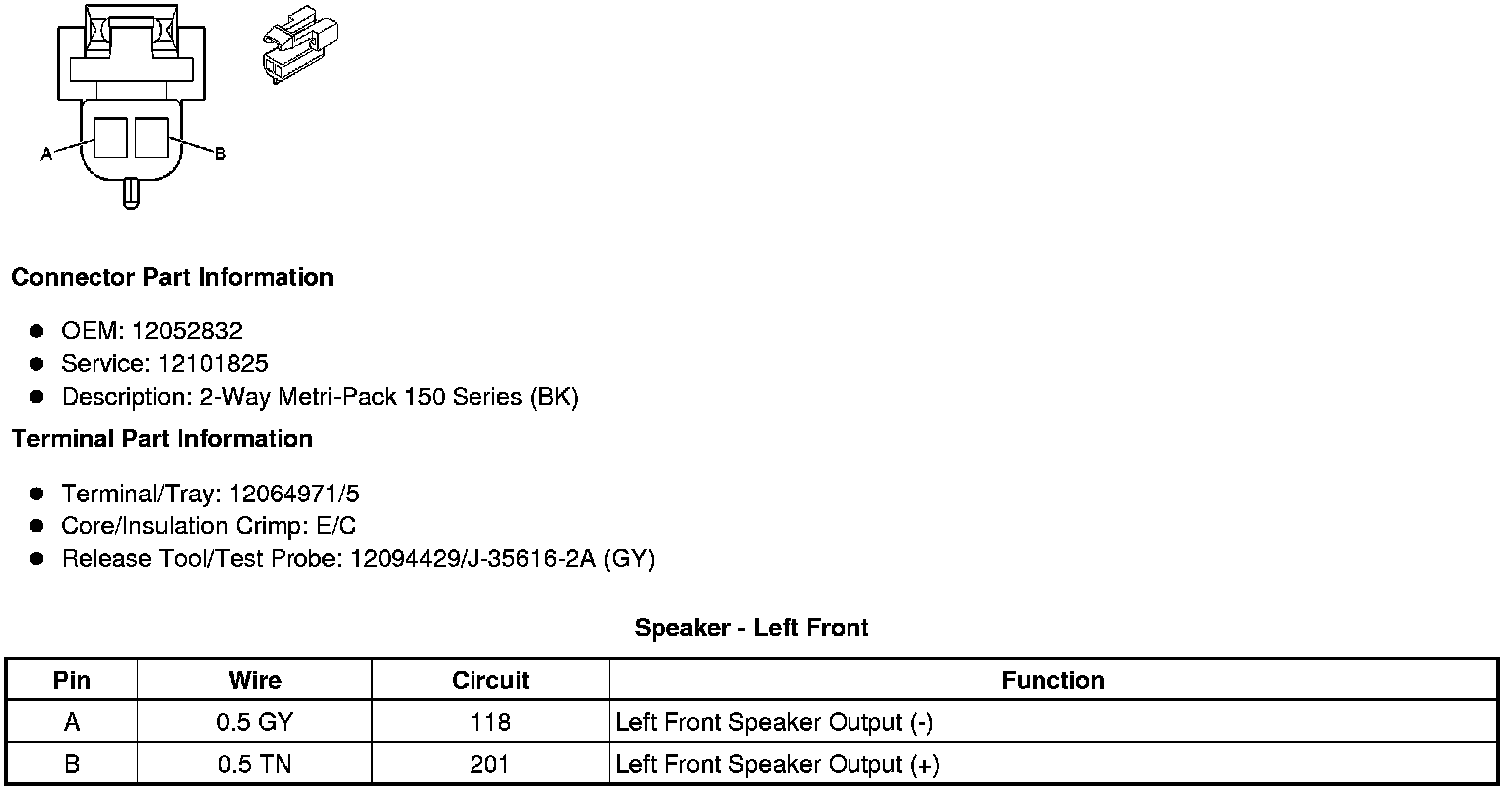

Speaker - Left Front

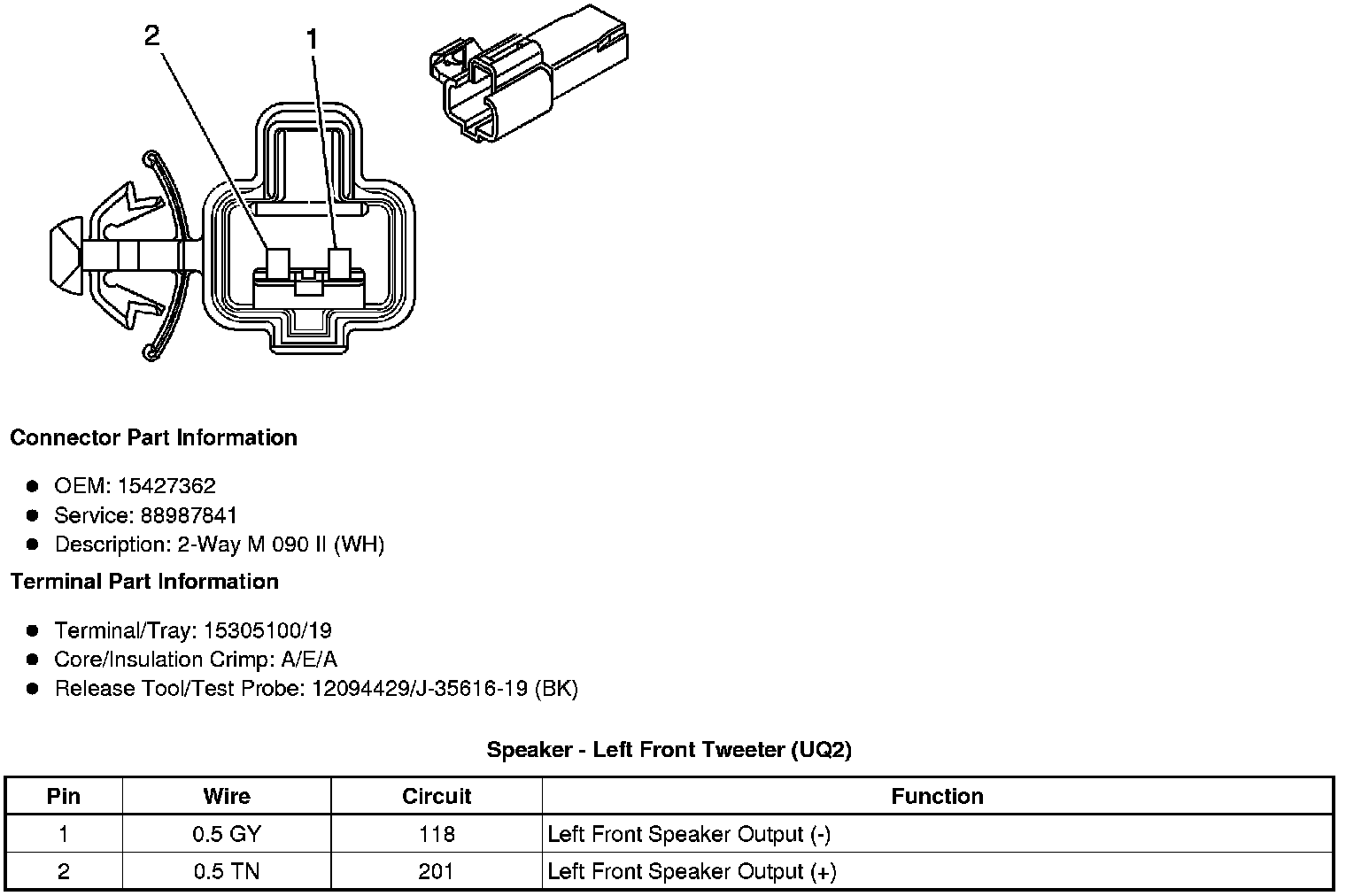

Speaker - Left Front Tweeter (UQ2)

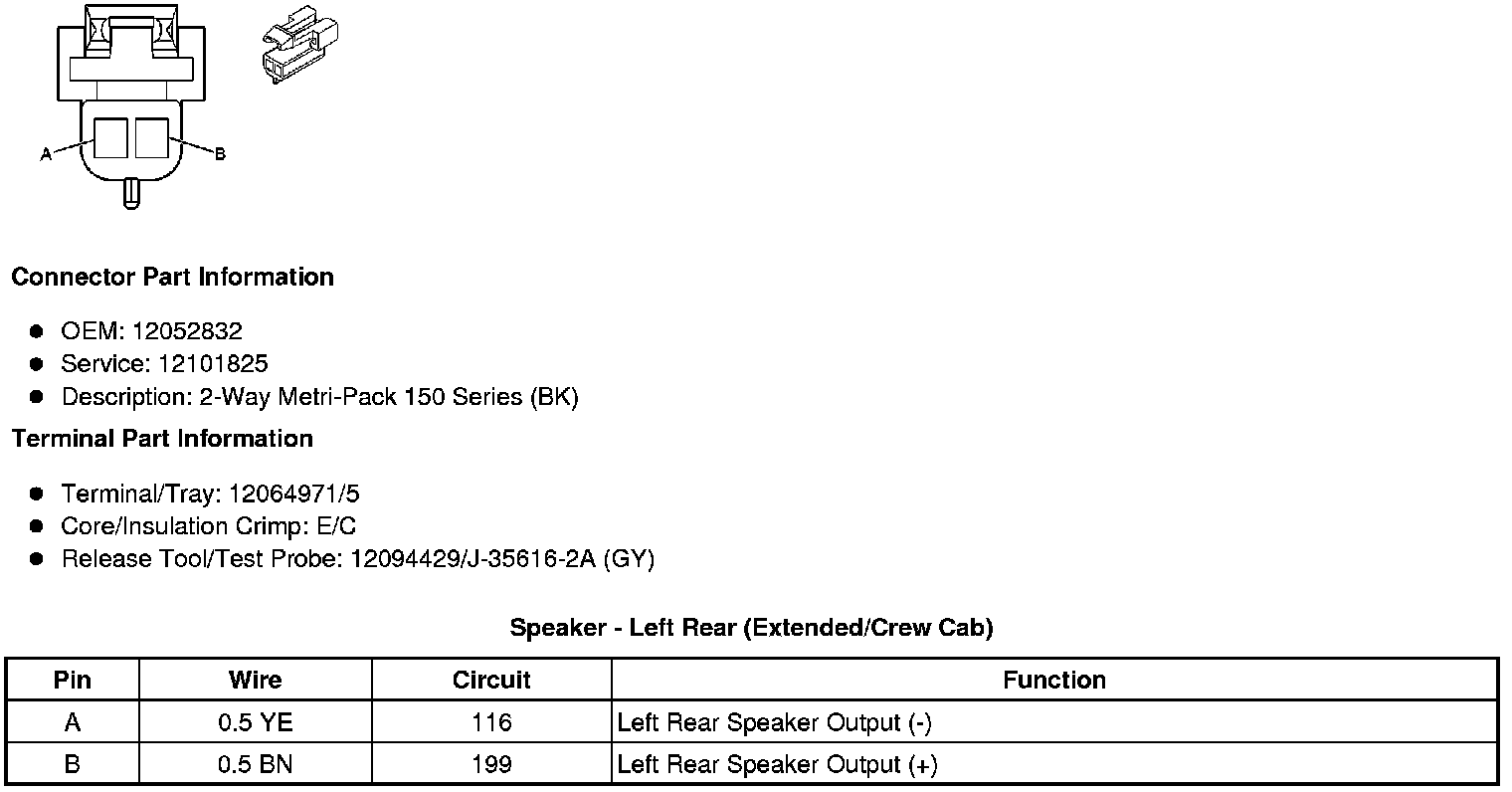

Speaker - Left Rear (Extended/Crew Cab)

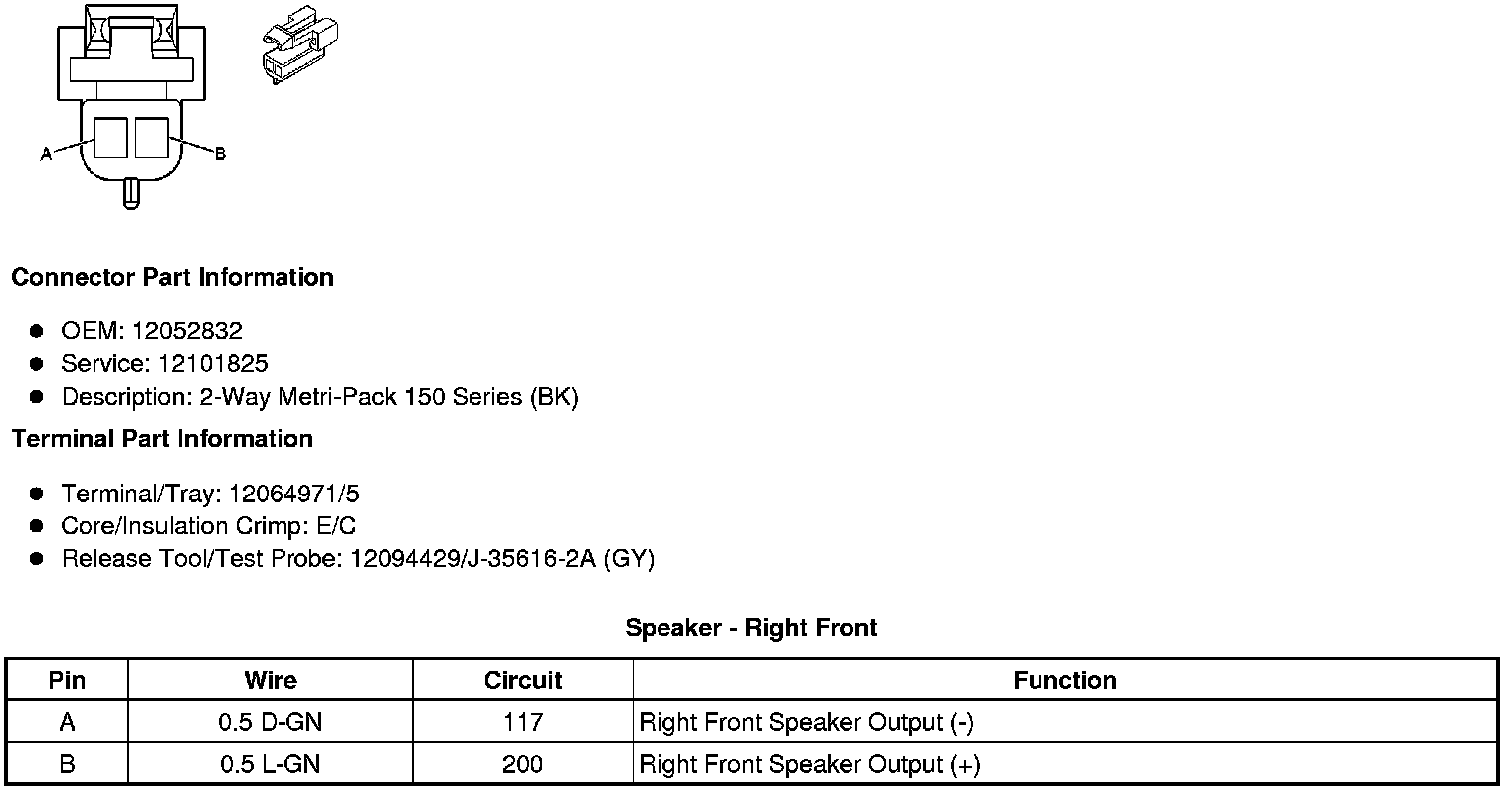

Speaker - Right Front






Speaker - Right Front Tweeter (UQ2)

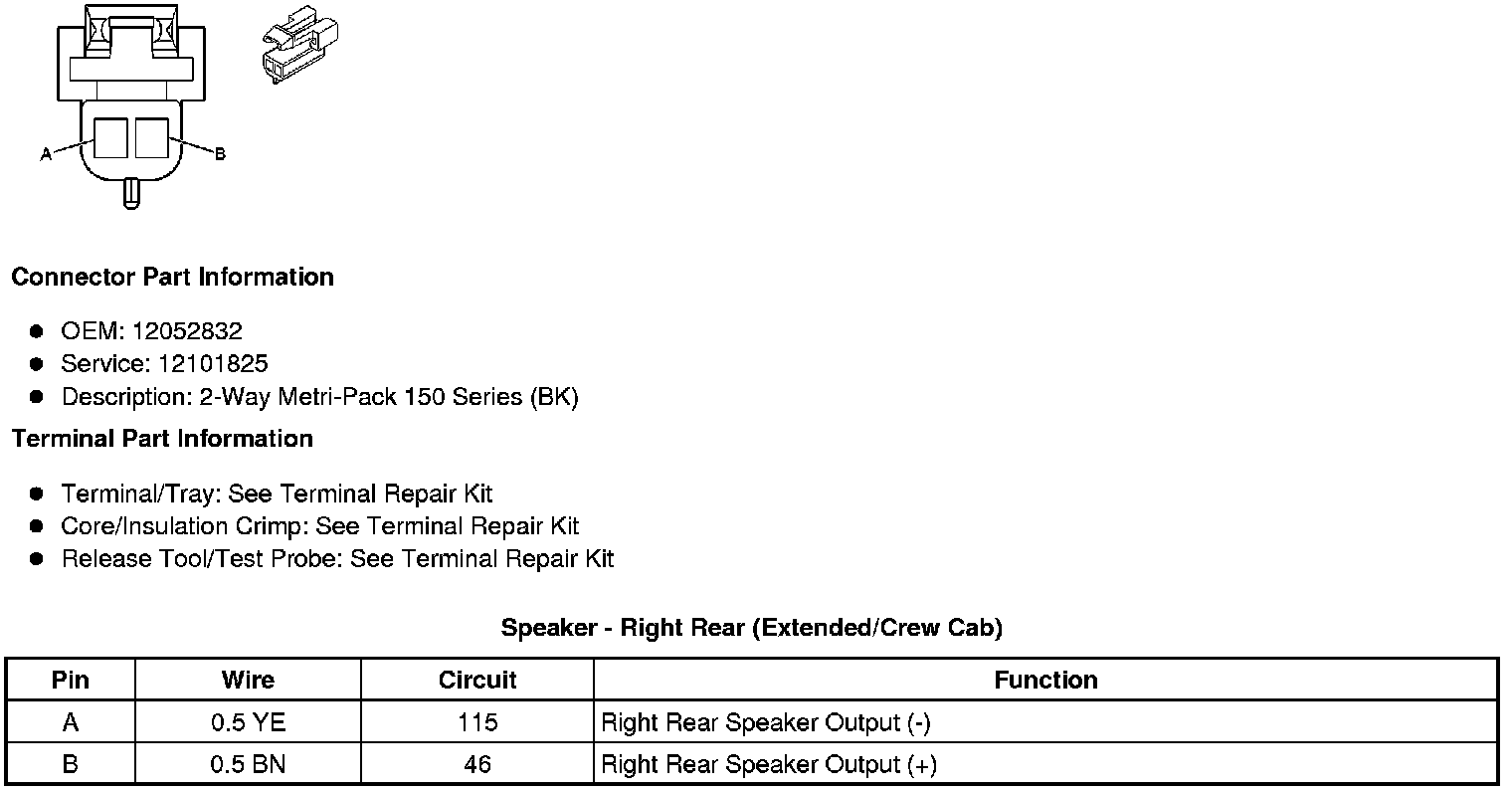

Speaker - Right Rear (Extended/Crew Cab)
