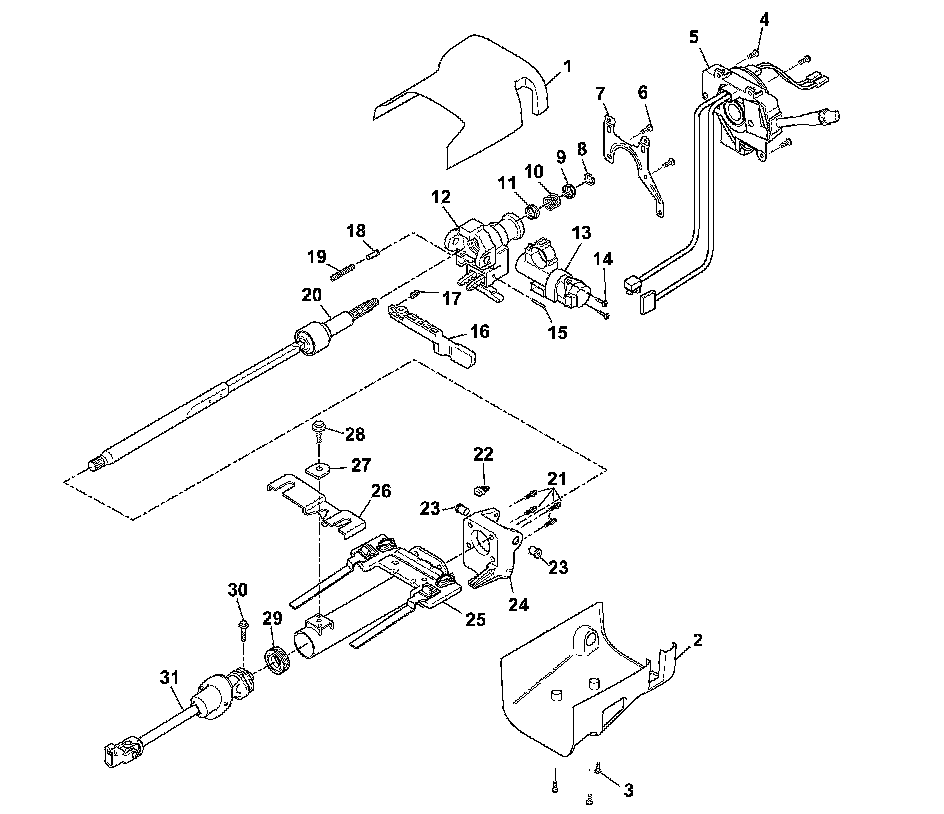

Steering Column Disassembled View (Floor Shift Tilt)

Steering Column Disassembled View (Floor Shift Tilt)




1 - Upper Trim Cover
2 - Lower Trim Cover
3 - Shoulder Tapping Screws
4 - Pan Head Tapping Screws
5 - Multifunction Switch Assembly
6 - Washer Head Screws
7 - Switch Mounting Plate
8 - Bearing Retainer
9 - Spring Retainer
10 - Upper Bearing Spring
11 - Inner Race Seat
12 - Steering Column Housing Assembly
13 - Ignition Switch and Lock Housing Assembly
14 - Set Screws
15 - Release Lever Pin
16 - Lever Spring Assembly
17 - Release Lever Spring
18 - Spring Guide
19 - Tilt Spring
20 - Steering Shaft Assembly
21 - Torque Head Screws
22 - Tilt Bumper
23 - Pivot Pin
23 - Pivot Pins
24 - Steering Column Support Assembly
25 - Bracket and Upper Jacket Assembly
26 - Lower Column Support Bracket
27 - Lower Bracket Retainer Spacer
28 - Washer and Bolt Assembly
29 - Lower Shaft Bearing Assembly
30 - Bolt and Retainer Assembly
31 - Intermediate Steering Shaft Assembly
