Ambient Light Sensor: Service and Repair

Ambient Light Sensor Replacement

Removal Procedure

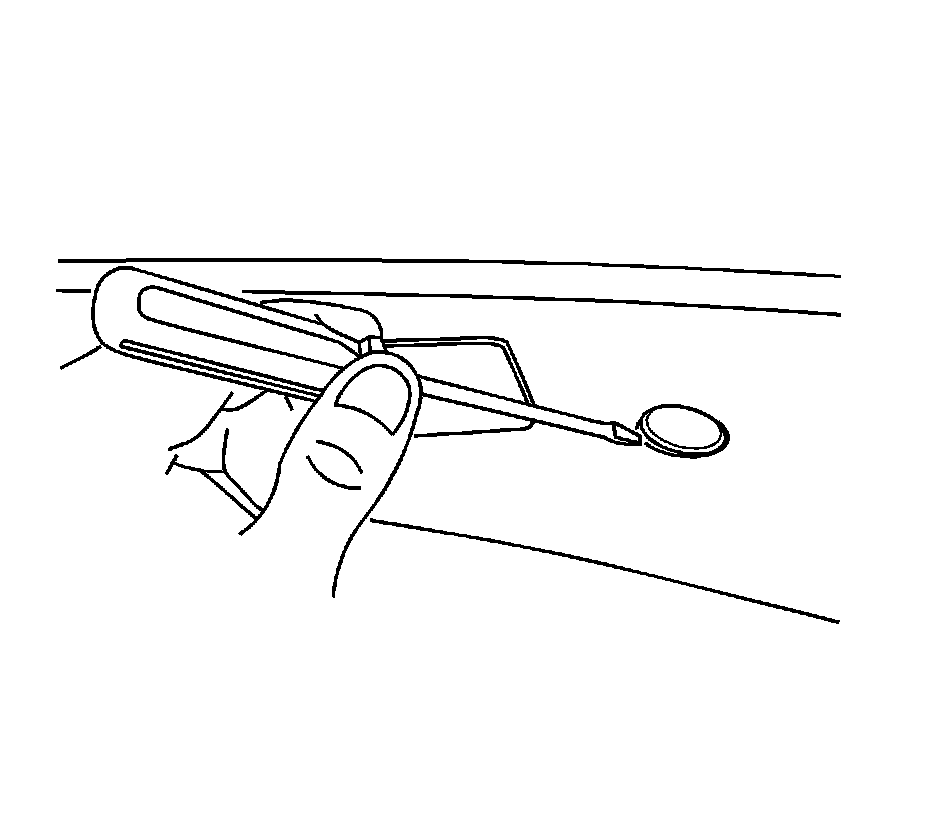

1. Carefully use a flat-bladed tool, and remove the sensor from the upper portion of the instrument panel (I/P).

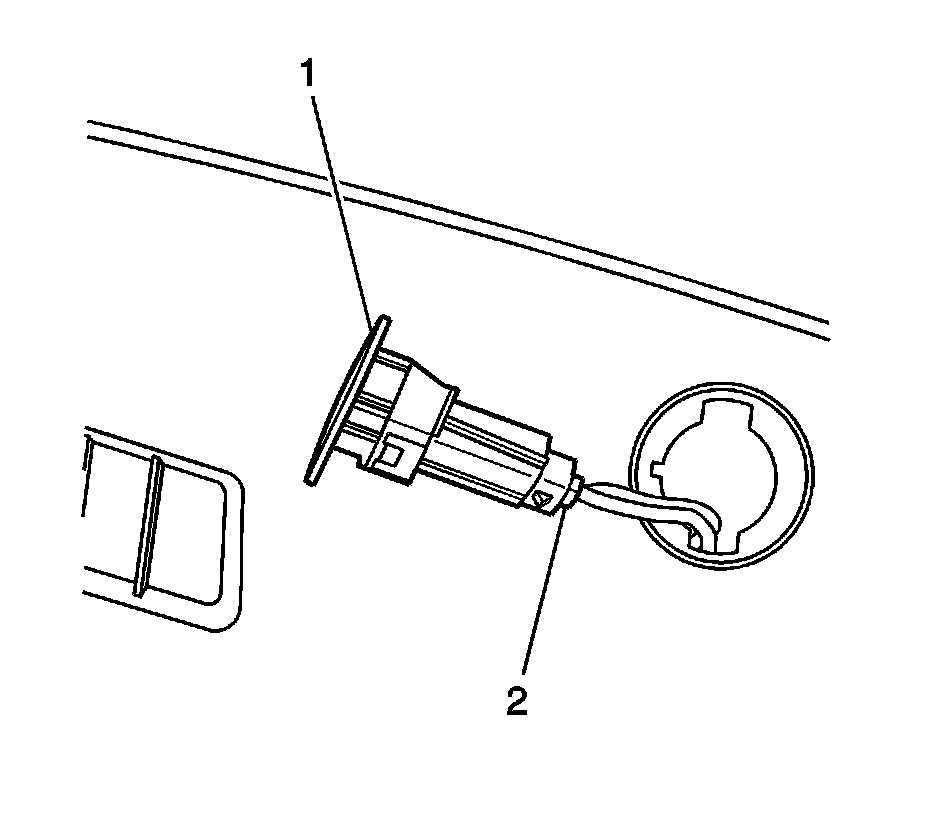

2. Disconnect the electrical connector (2) from the sensor ensuring the connector does NOT fall through the hole in the I/P.
3. Remove the sensor from the vehicle.

Installation Procedure




1. Connect the electrical connector (2) to the sensor.

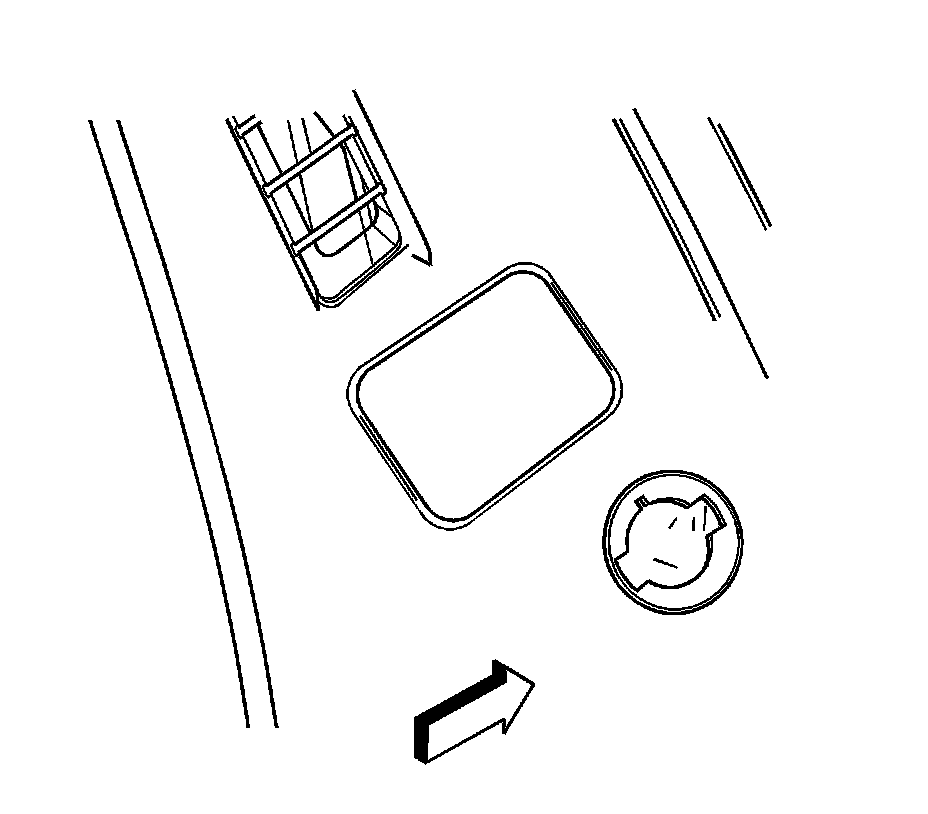

2. Align the sensor to the I/P for installation.
3. Apply downward pressure to the sensor head in order to seat the sensor to the I/P.
