Transmission Mount: Service and Repair




Transmission Mount Replacement (4WD)

Removal Procedure

1. Remove the transmission support. Refer to Transmission Support Crossmember Replacement (2WD) (Transmission Support Crossmember Replacement)Transmission Support Crossmember Replacement (4WD) (Transmission Support Crossmember Replacement).

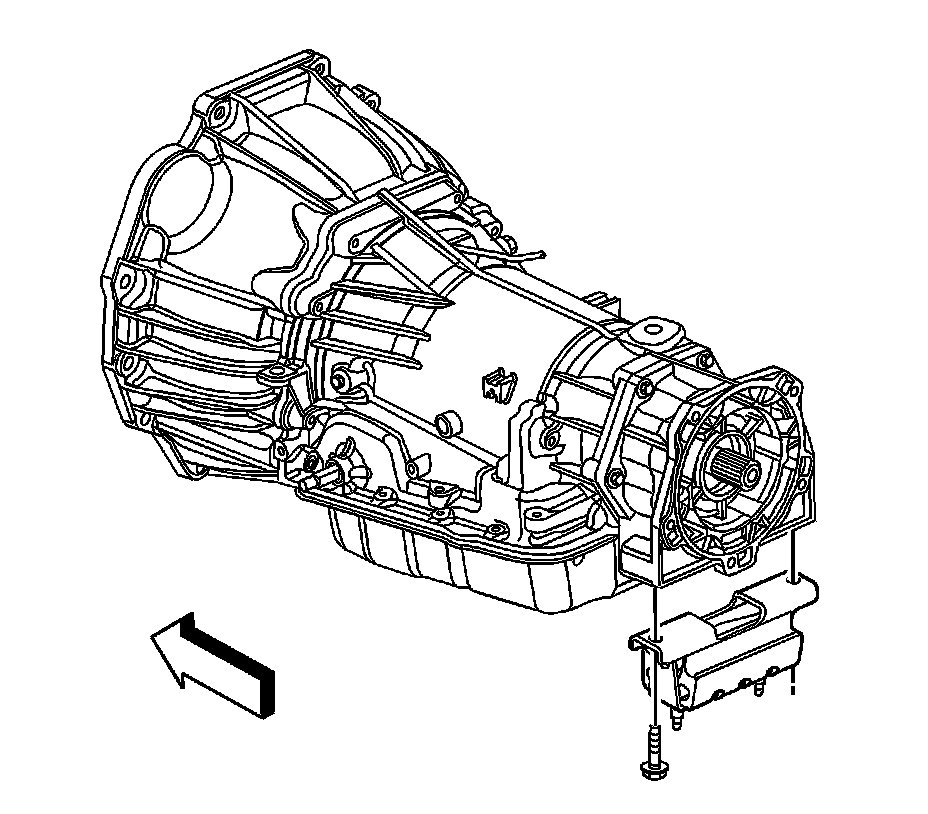

2. Remove the transmission mount bolts.
3. Remove the transmission mount from the vehicle.

Installation Procedure




1. Install the transmission mount to the vehicle.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the bolts and tighten to 55 Nm (41 lb ft).
3. Install the transmission support. Refer to Transmission Support Crossmember Replacement (2WD) (Transmission Support Crossmember Replacement)Transmission Support Crossmember Replacement (4WD) (Transmission Support Crossmember Replacement).
