Electrical Diagrams

ENGINE CONTROLS SCHEMATICS

Module Power, Ground, Serial Data, and MIL

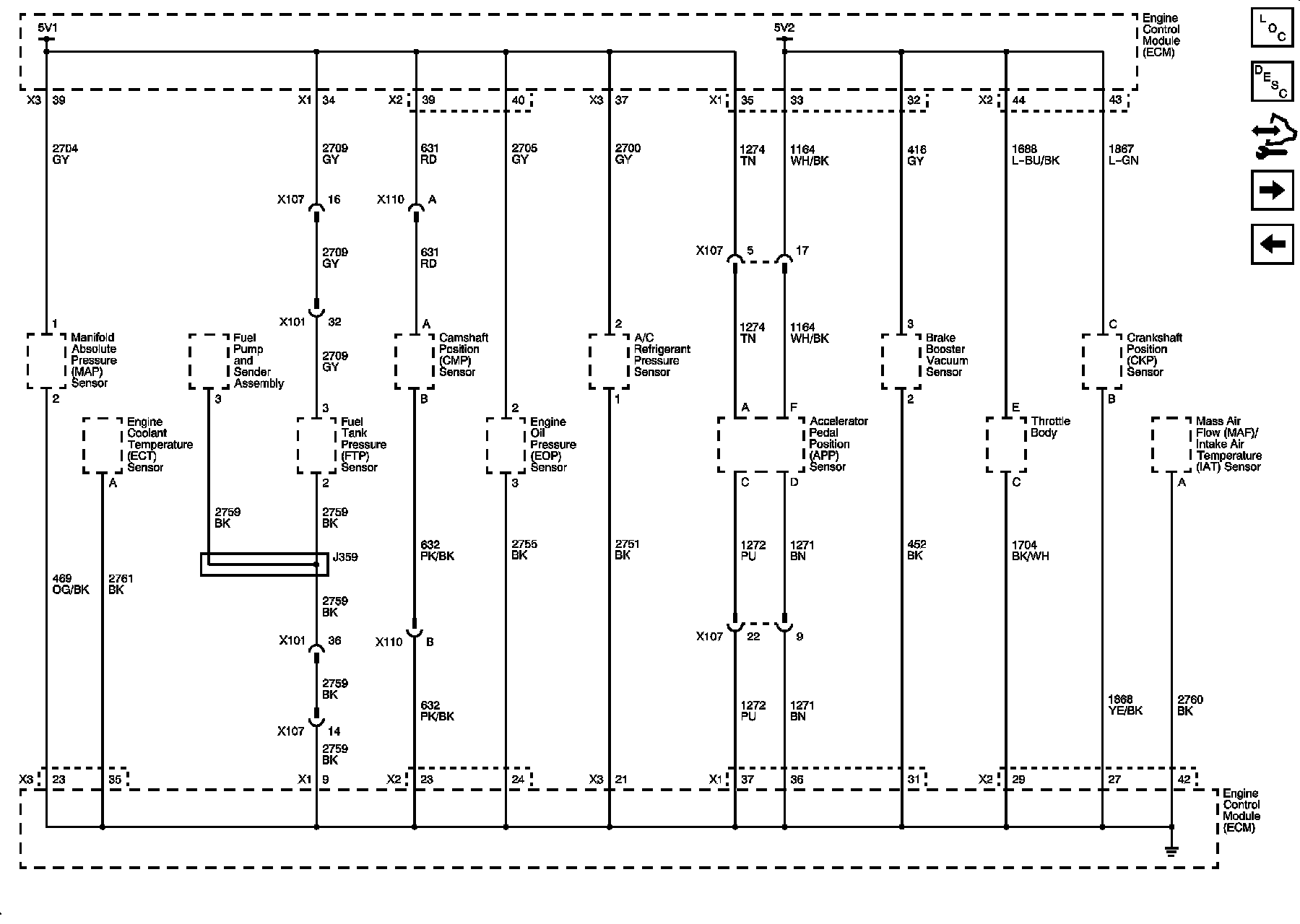

Engine Data Sensors - 5-Volt and Low Reference







Engine Data Sensors - MAF, Pressure, Temperature, and VSS

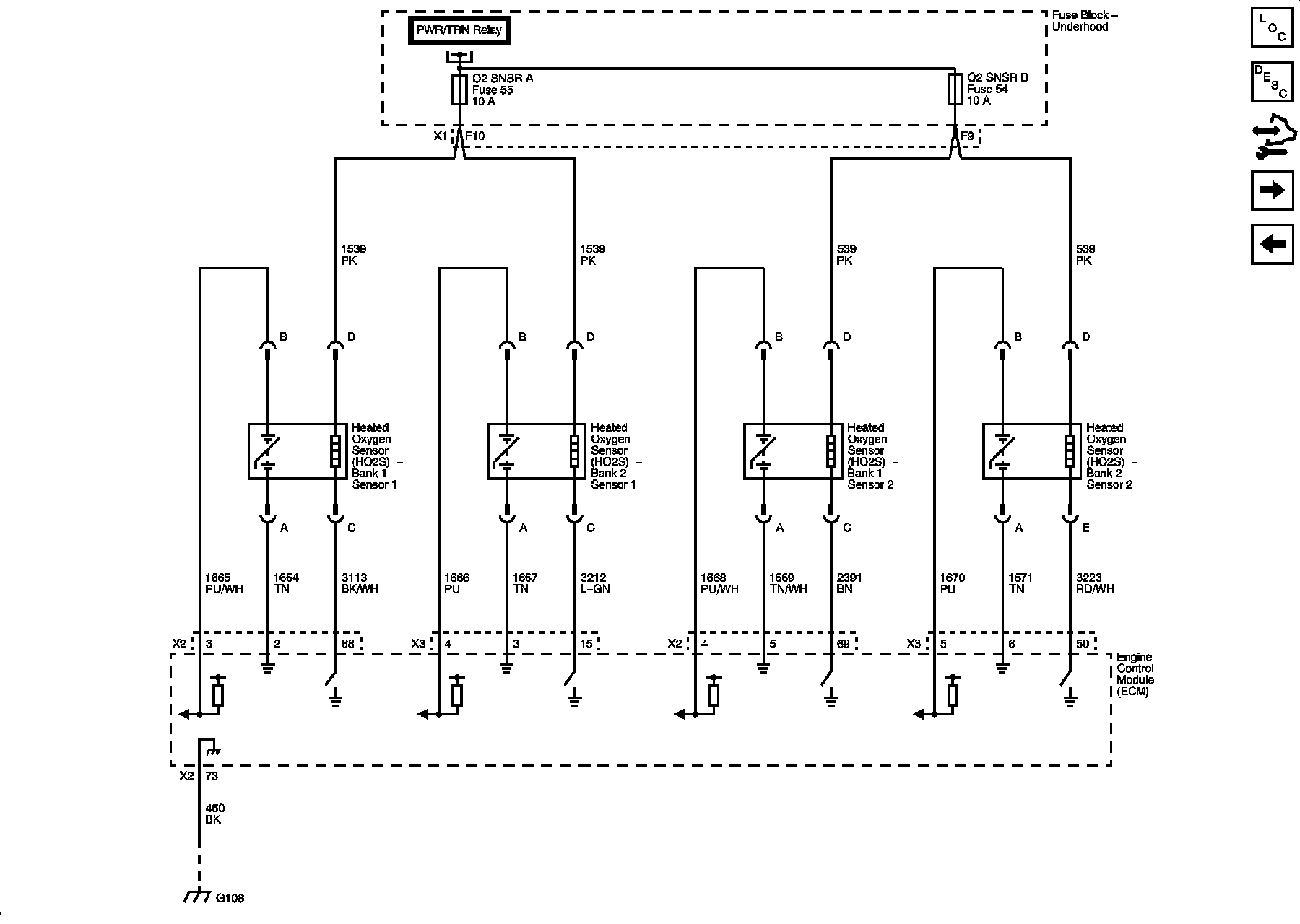

Engine Data Sensors - Oxygen Sensors







Engine Data Sensors - Throttle Actuator Controls







Ignition Controls - Ignition Coils 1, 3, 5, and 7







Ignition Controls - Ignition Coils 2, 4, 6, and 8

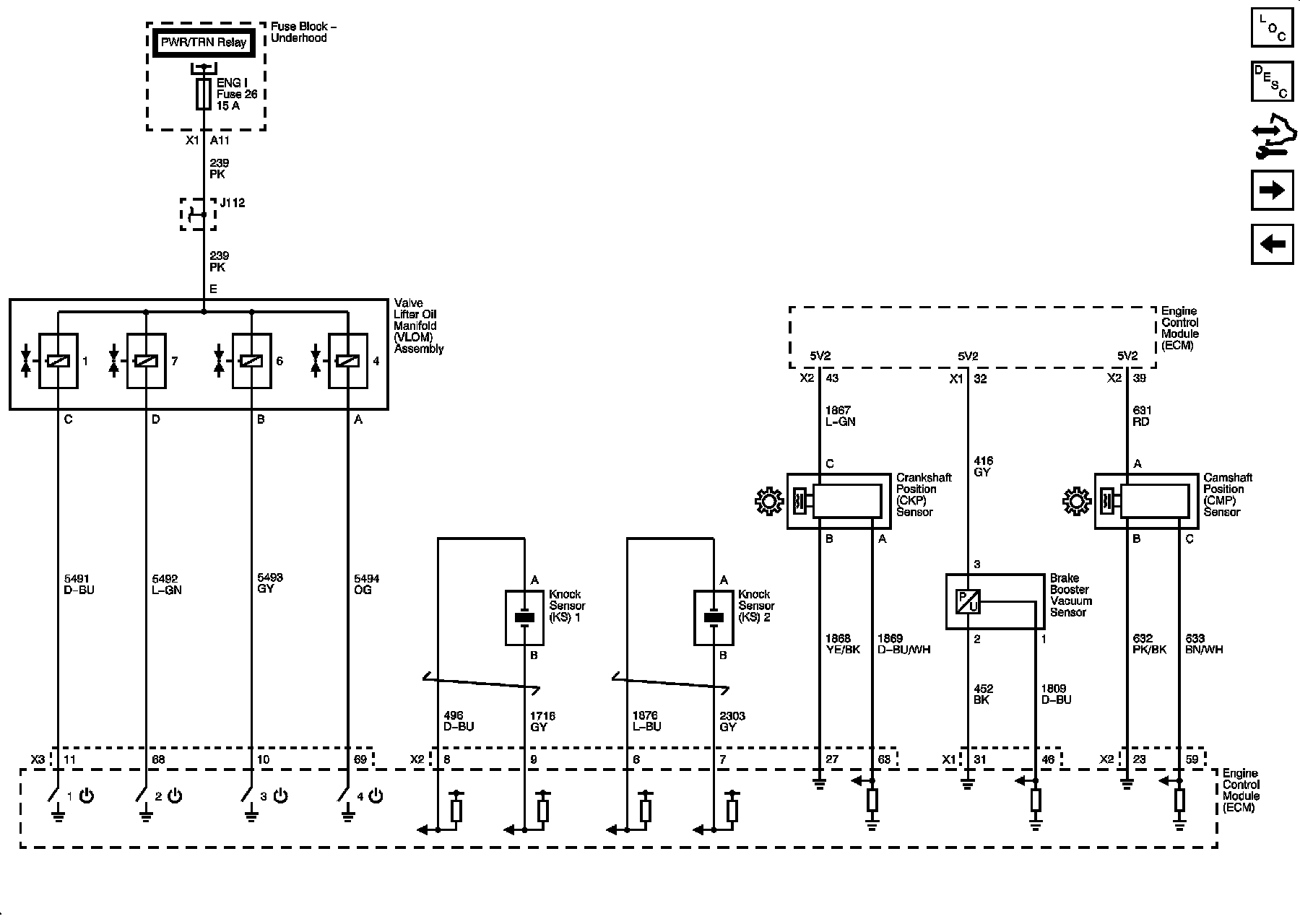

Ignition Controls - Sensors and DOD Controls

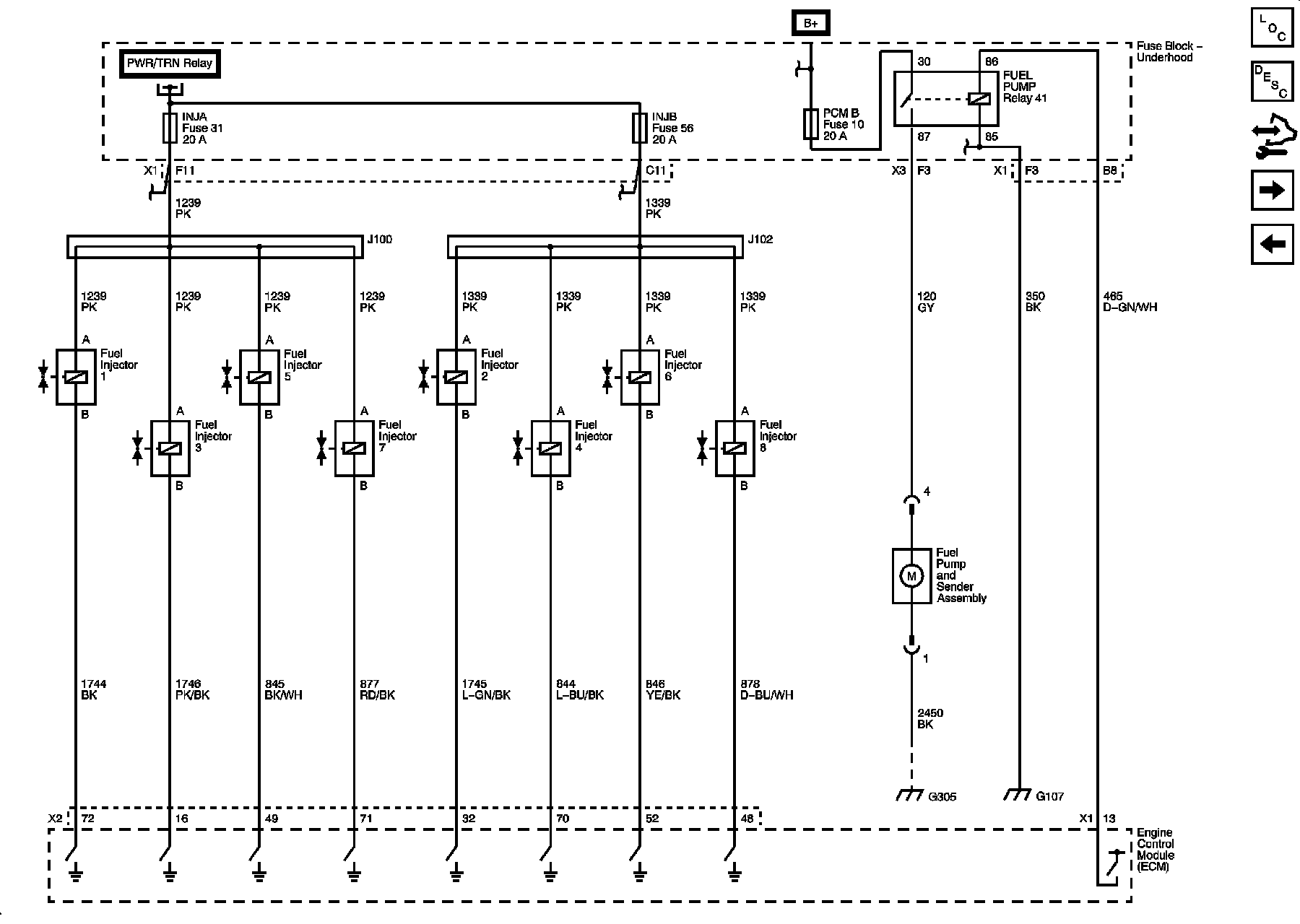

Fuel Controls - Fuel Pump and Fuel Injectors







Fuel Controls - FTP Sensor and EVAP Controls

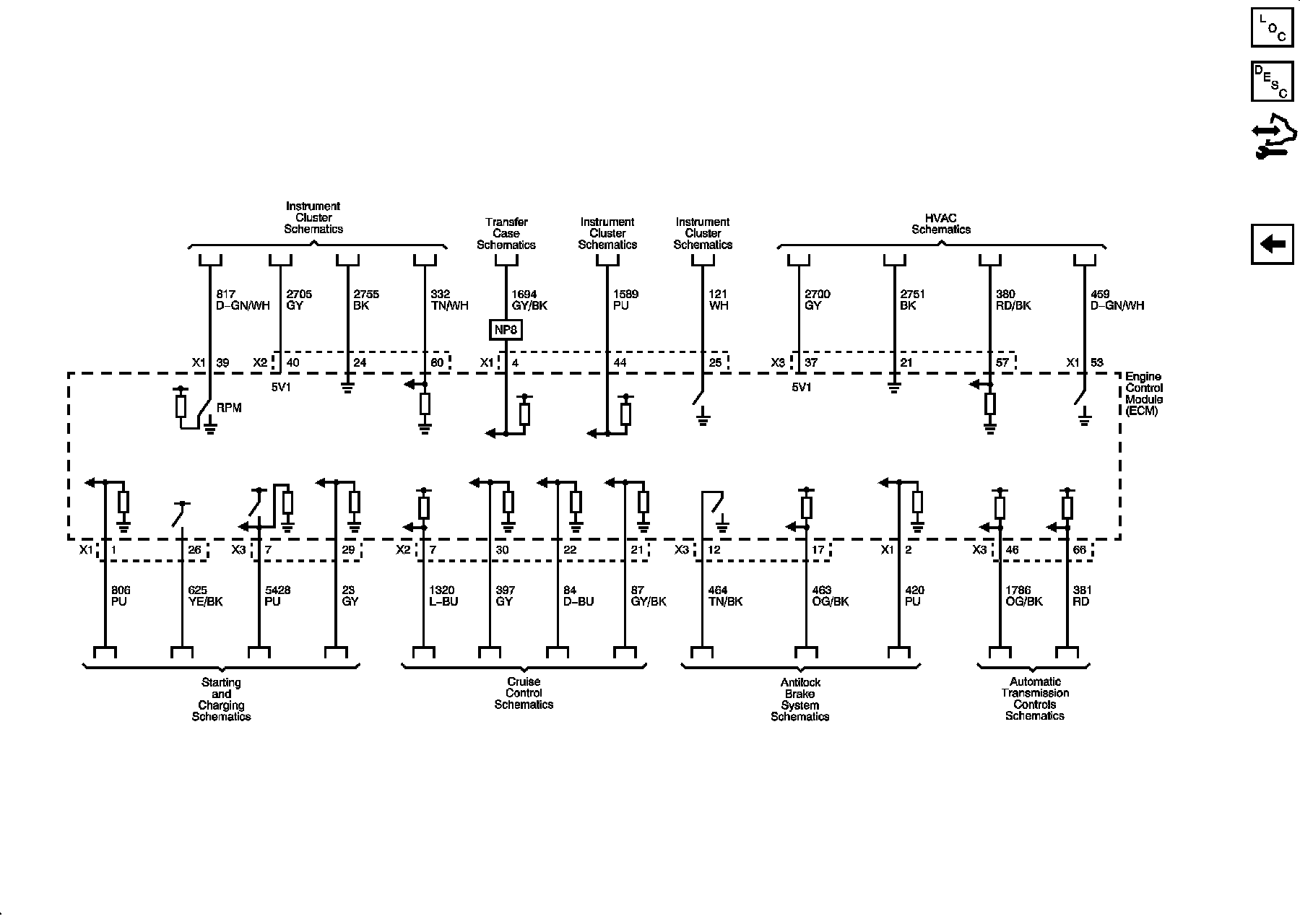

Controlled/Monitored Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
