Heater Core Cover Replacement

Heater Core Cover Replacement

Removal Procedure




1. Remove the floor air outlet duct. Refer to Floor Air Outlet Replacement Floor Air Outlet Replacement.

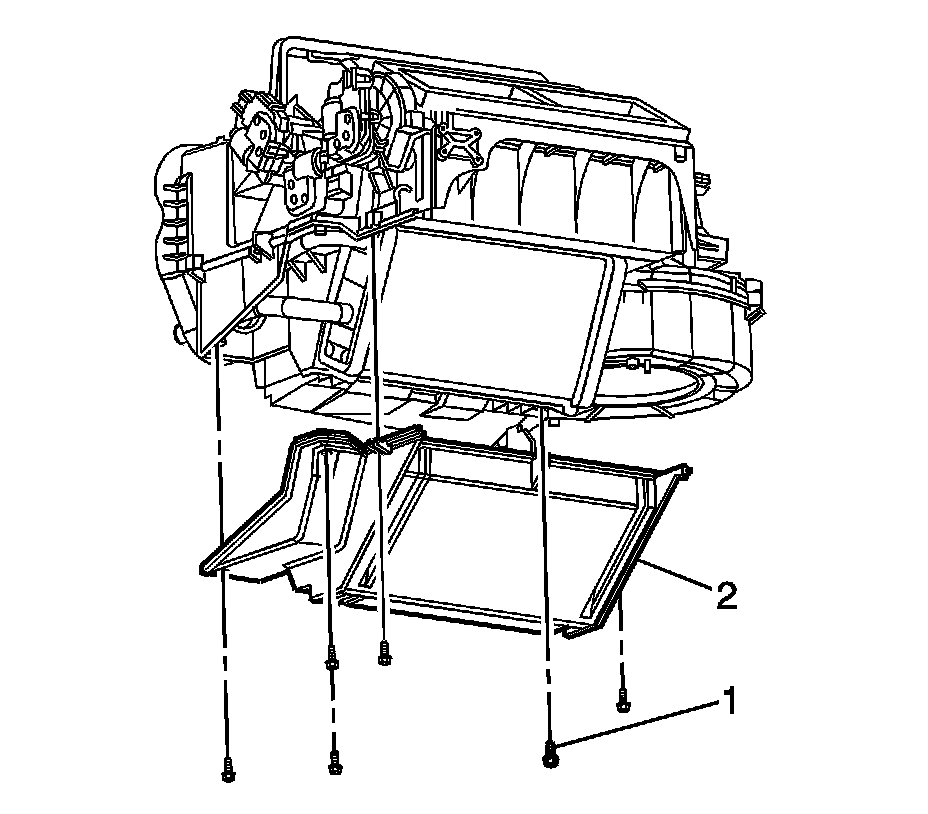

2. Remove the heater core cover screws (1).
3. Remove the heater core cover (2).

Installation Procedure




1. Install the heater core cover (2).

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the heater core cover screws (1) and tighten to 1.2 Nm (11 lb in).
3. Install the floor air outlet duct. Refer to Floor Air Outlet Replacement Floor Air Outlet Replacement.
