Heater Core Replacement

Heater Core Replacement

Special Tools

J-38185 - Hose Clamp Pliers

Removal Procedure

1. Drain the cooling system. Refer to Cooling System Draining and Filling (Vac-N-Fill) Cooling System Draining and Filling (Vac-N-Fill)Cooling System Draining and Filling (Static Fill LZ9) Cooling System Draining and Filling (Static Fill LZ9).

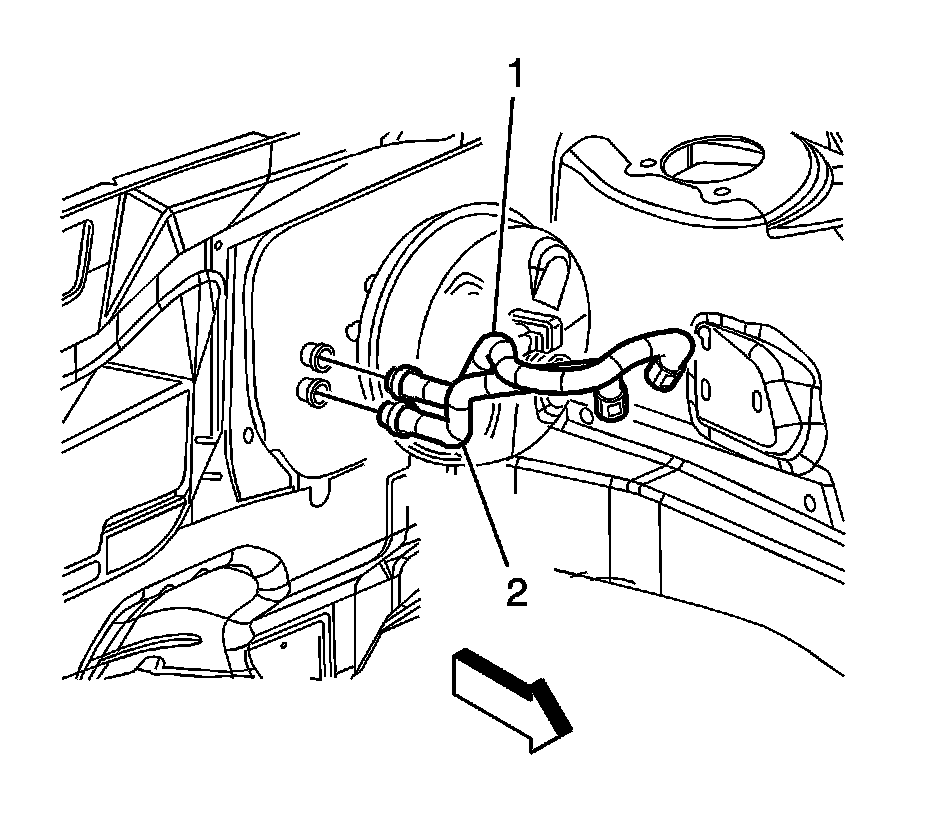

2. Disconnect both of the heater hose clamps (1) at the heater core using the J-38185 - pliers.
3. Remove the heater hoses from the heater core (2).

Note: Cap off the heater core inlet and outlet pipes to prevent coolant spilling inside of the vehicle.

4. Cap off the heater core pipes.
5. Remove the heater core cover. Refer to Heater Core Cover Replacement Heater Core Cover Replacement.

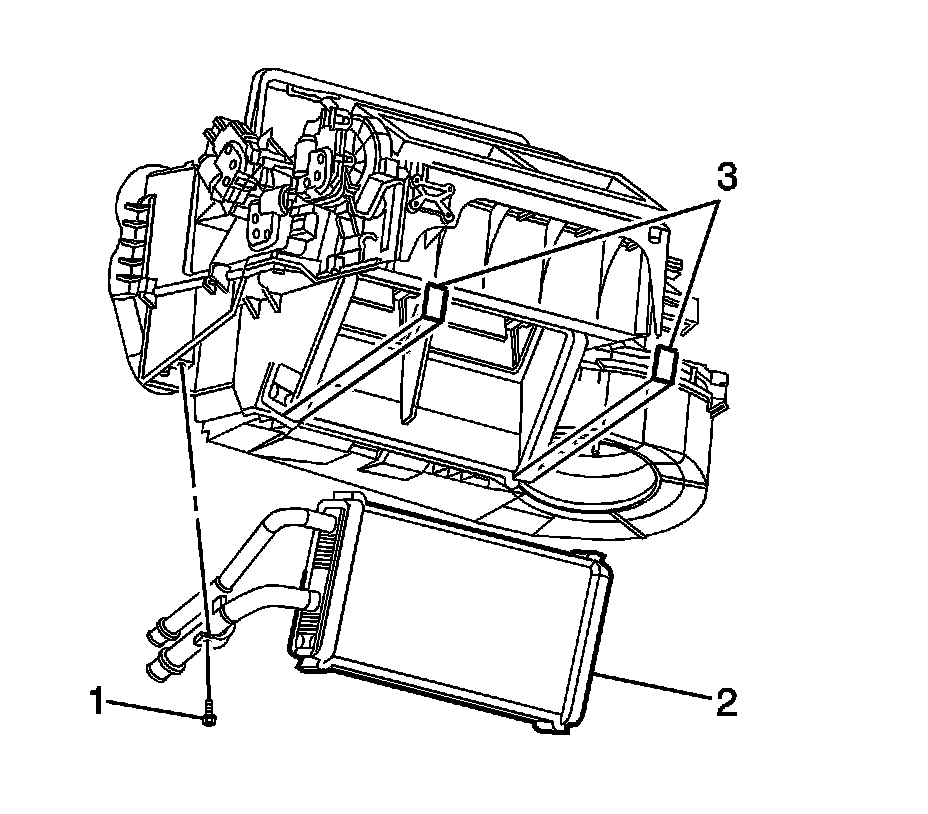

6. Remove the heater core pipe clamp screw (1).
7. Remove the heater core (3).

Installation Procedure




1. Install the heater core (2).

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the heater core pipe clamp screw (1) and tighten to 1.2 Nm (11 lb in).
3. Install the heater core cover. Refer to Heater Core Cover Replacement Heater Core Cover Replacement.




4. Install the heater hoses to the heater core (2).
5. Reposition the heater hose clamps (1) to secure the hoses using the J-38185 - pliers.
6. Fill the coolant. Refer to Cooling System Draining and Filling (Vac-N-Fill) Cooling System Draining and Filling (Vac-N-Fill)Cooling System Draining and Filling (Static Fill LZ9) Cooling System Draining and Filling (Static Fill LZ9).
