Front Fascia Components

Front of Vehicle/Engine Compartment Component Views

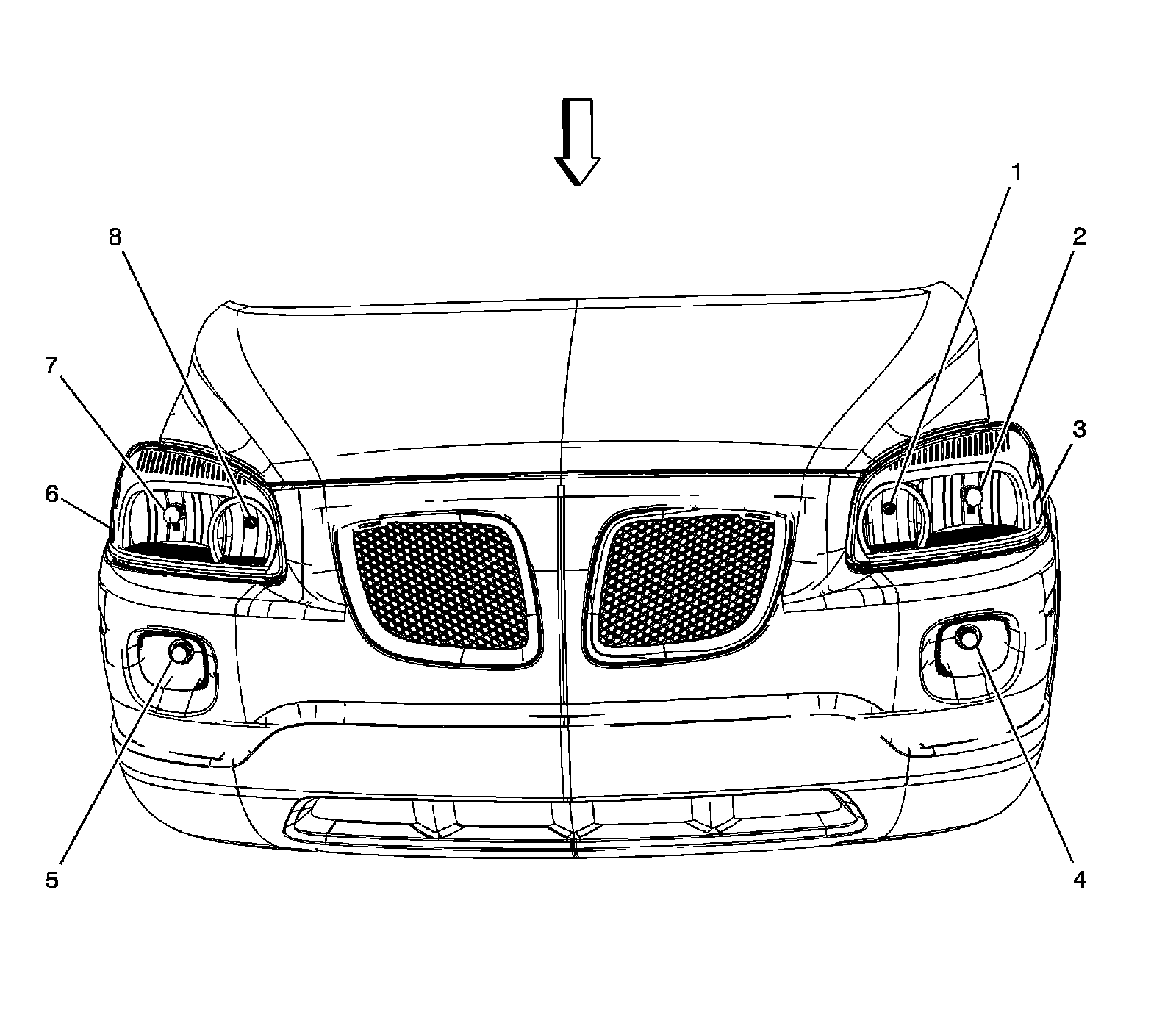

Front Fascia Components




1 - Headlamp - Left High Beam
2 - Headlamp - Left Low Beam
3 - Marker Lamp - Left Front
4 - Park/Turn Signal Lamp - Left Front
5 - Park/Turn Signal Lamp - Right Front
6 - Marker Lamp - Right Front
7 - Headlamp - Right Low Beam
8 - Headlamp - Right High Beam
