Driver Seat Components

Passenger Compartment/Roof Component Views

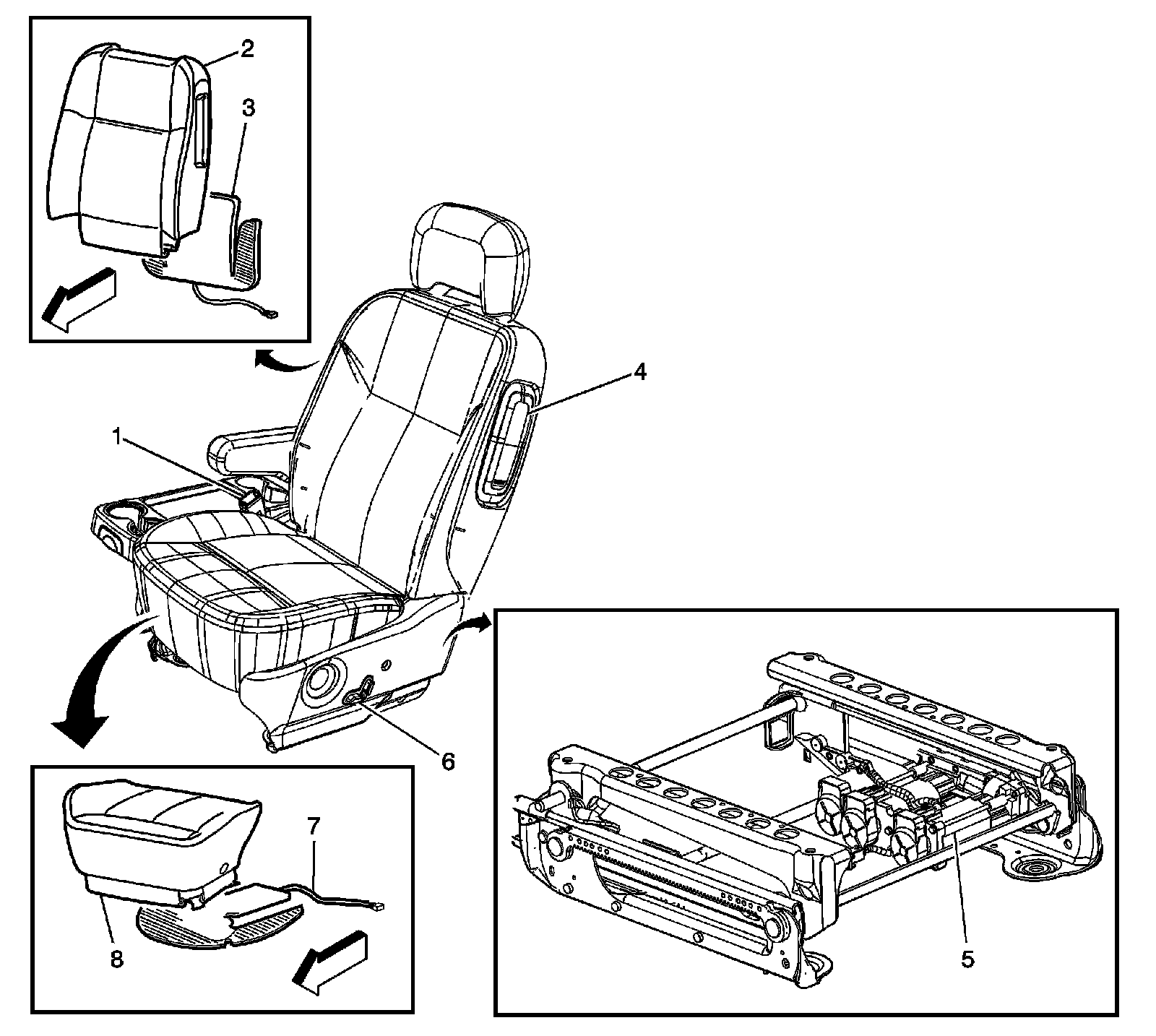

Driver Seat Components




1 - Seat Belt Switch - Driver
2 - Seat Back Cover
3 - Heated Seat Element - Driver Back (KA1)
4 - Inflatable Restraint Side Impact Module - Left (AJ7/AW9), Inflatable Restraint Side Impact Module - Left Rear (AW9) Similar
5 - Seat Adjuster Motor Assembly - Driver (AG1)
6 - Seat Adjuster Switch - Driver (AG1)
7 - Heated Seat Element - Driver Cushion (KA1)
8 - Seat Cushion Cover
