Left B Pillar Area Components

Passenger Compartment/Roof Component Views

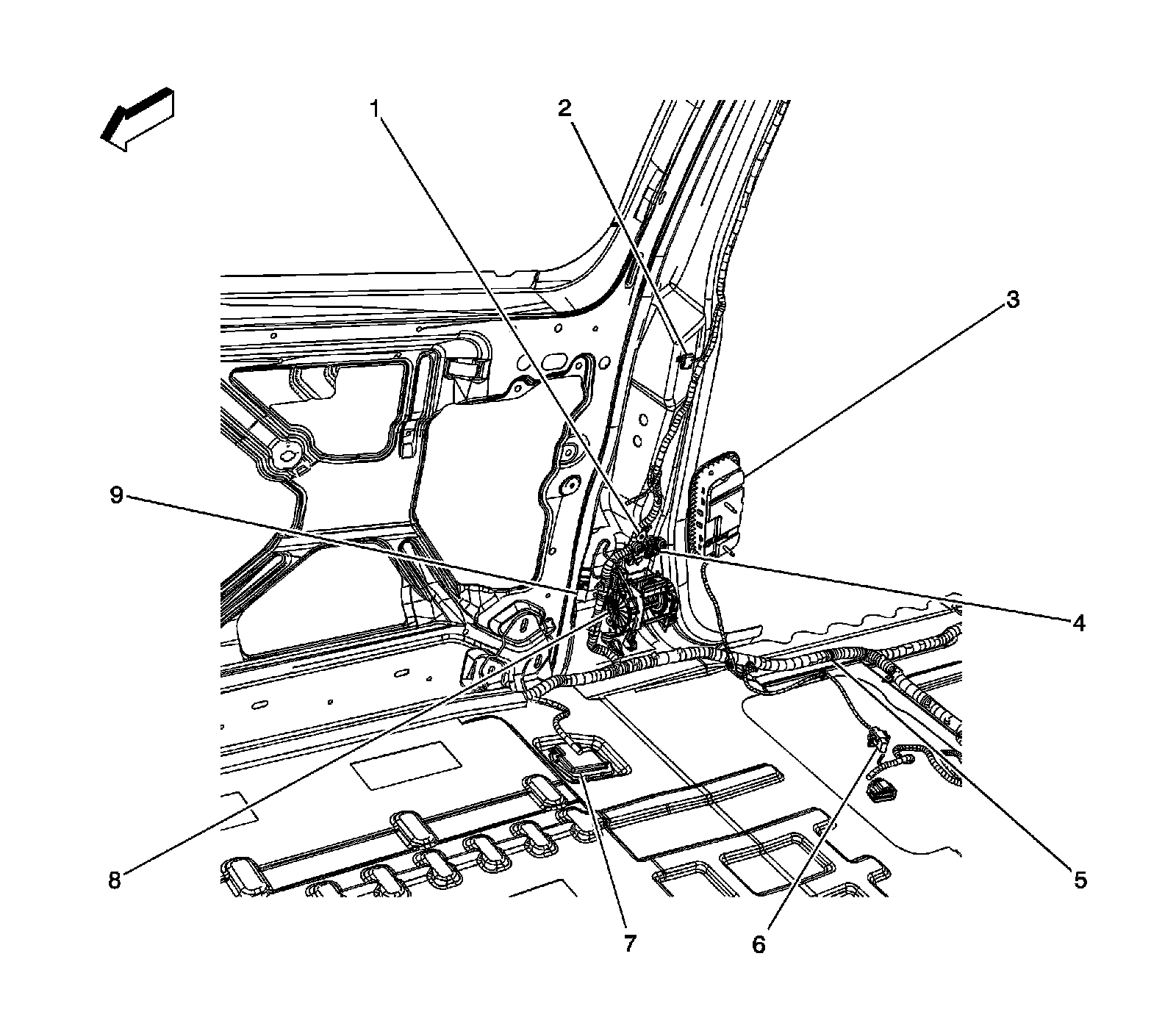

Left B Pillar Area Components




1 - G301
2 - Sliding Door Open/Close Switch - Left (E59) Connector
3 - Inflatable Restraint Side Impact Module - Left (AJ7/AW9)
4 - Inflatable Restraint Side Impact Sensor (SIS) - Left (AJ7/AW9)
5 - Body Harness
6 - X315 (AJ7/AW9)
7 - X305
8 - Seatbelt Pretensioner - Driver
9 - Sliding Door Jamb Contact Plate - Left X1
