Air Intake System Components




Powertrain Component Views

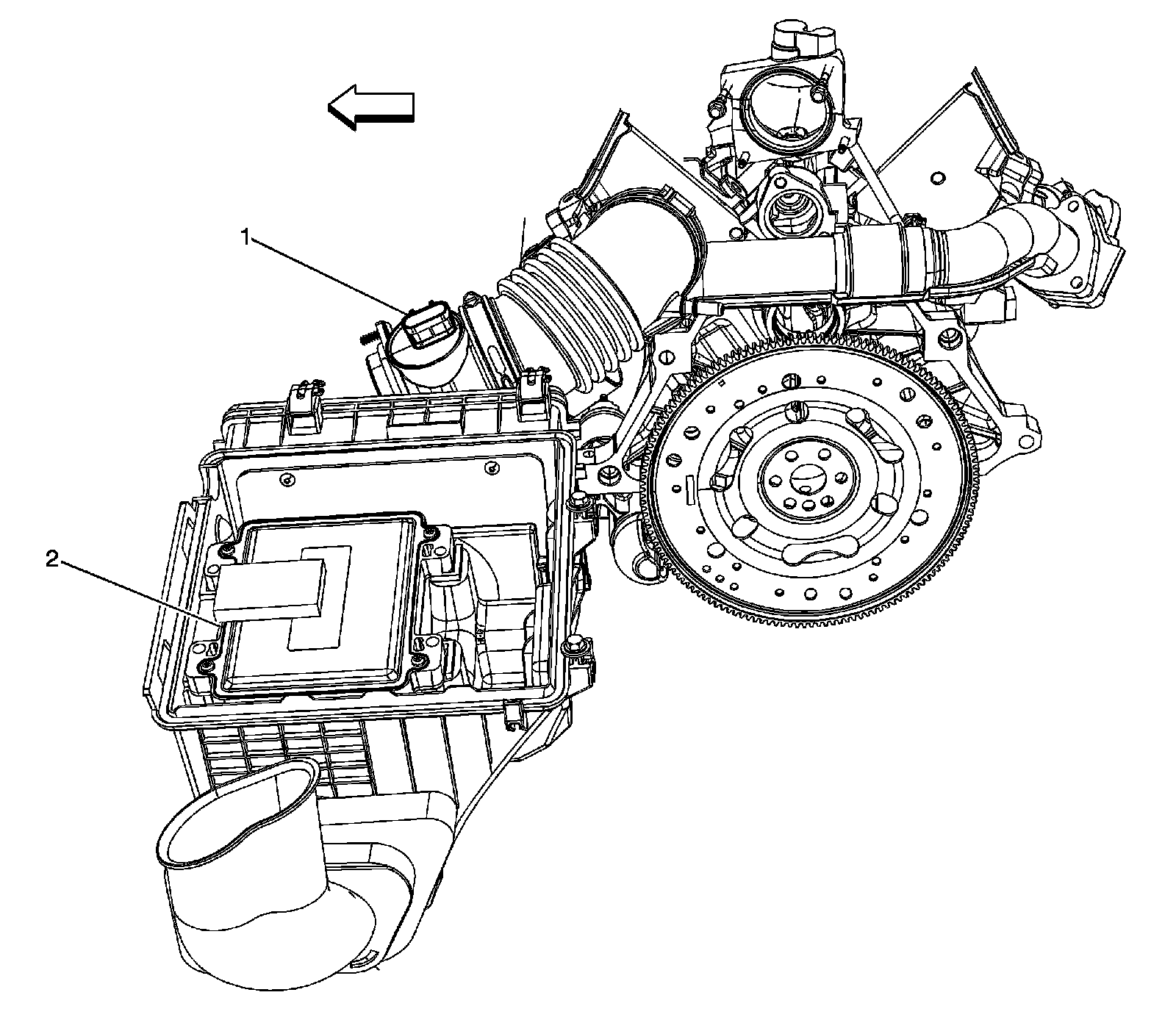

Air Intake System Components




1 - Mass Air Flow (MAF)/ Intake Air Temperature (IAT) Sensor
2 - Engine Control Module (ECM)
