Rear Camber Adjustment

Rear Camber Adjustment

Removal Procedure

1. Place vehicle on alignment machine with rear wheels supported by Weaver plates.

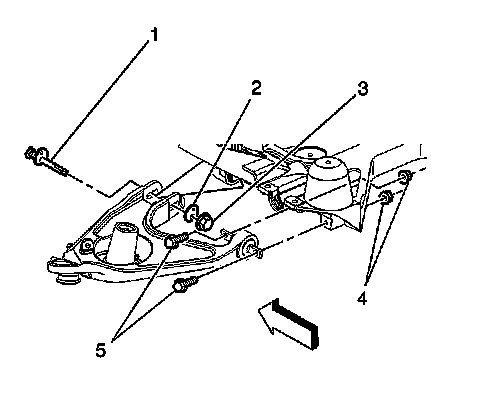

2. Loosen rear lower control arm mounting nuts (3, 4).
3. Adjust camber with cam bolt (1).
4. Confirm correct camber value.
5. Check toe alignment and adjust if required.

Installation Procedure





Caution: Refer to Fastener Caution Fastener Caution.

1. Install the lower control arm mounting nuts (3, 4) and tighten.

* nut (3) to 145 Nm (107 lb ft).
* nut (4) to 50 Nm (37 lb ft).

2. Test drive the vehicle.
