Rear Toe Adjustment

Rear Toe Adjustment

Note: Make any adjustments to camber before setting toe.

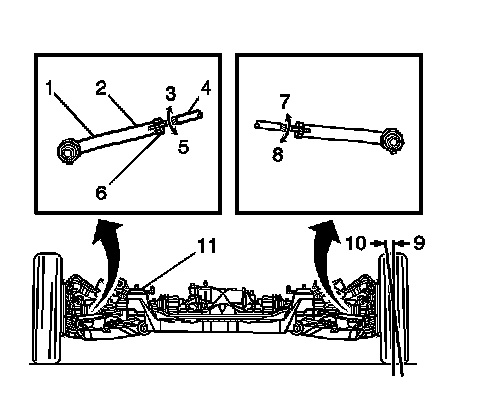

1. Loosen the jam nut (6) at the rear wheel tie rod.
2. Adjust the toe to the proper setting by turning the inner link adjustment hex (4). Refer to Wheel Alignment Specifications Wheel Alignment Specifications.

Caution: Refer to Fastener Caution Fastener Caution.

3. When the toe adjustment is correct, tighten the jam nut to 62 Nm (45 lb ft).
4. Recheck the toe alignment.
