Fuse Block - Instrument Panel X2

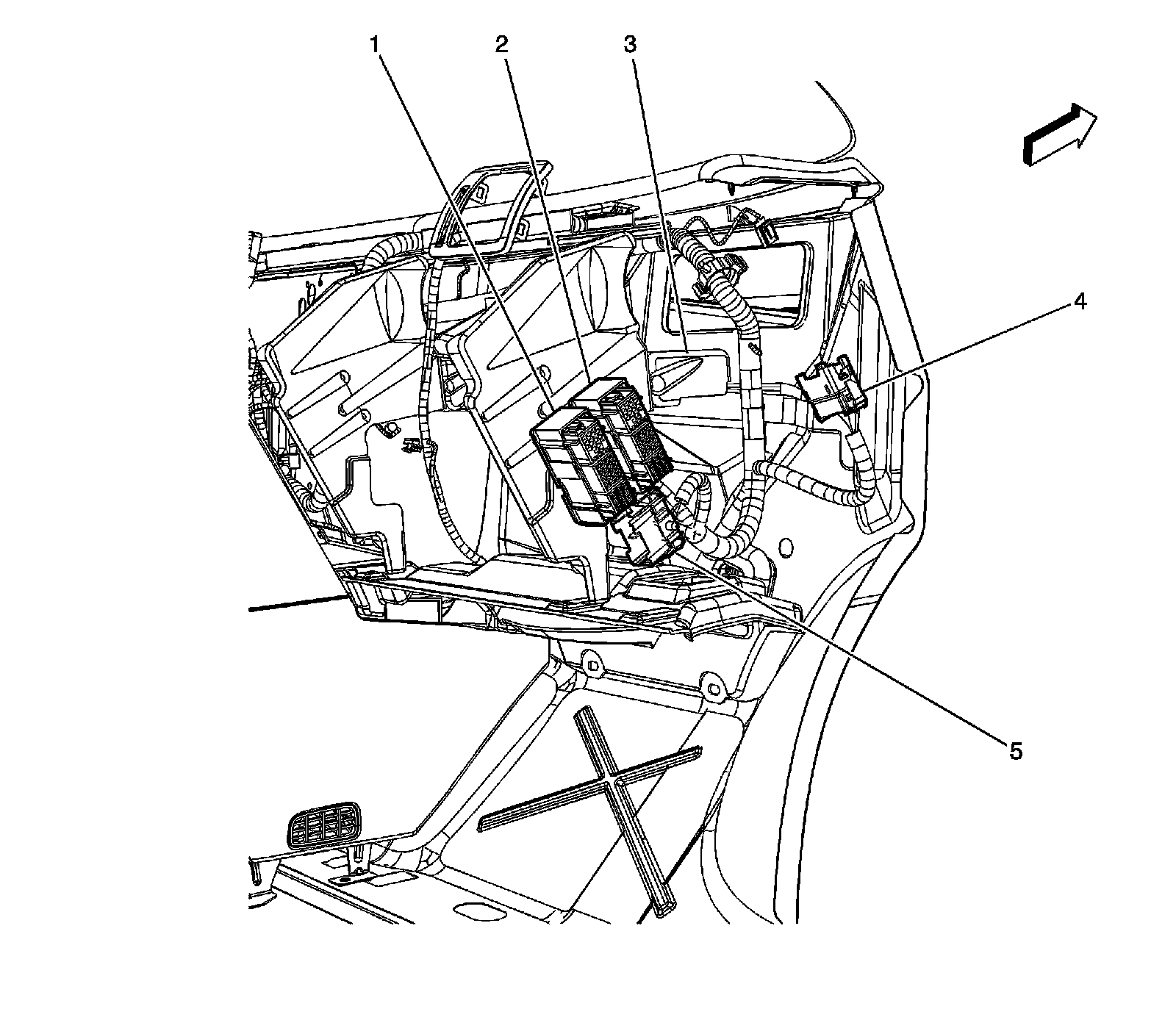

Harness Routing Views

Right Side of I/P




1 - Fuse Block - Instrument Panel X1
2 - Fuse Block - Instrument Panel X2
3 - G200
4 - X204 Body Harness to Instrument Panel Harness
5 - X200 Body Harness to Instrument Panel Harness
