Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Removal Procedure




1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection Battery Negative Cable Disconnection and Connection.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.
3. Remove the radiator air baffle. Refer to Radiator Air Baffle Assemblies and Deflectors Radiator Air Baffle Assemblies and Deflectors.

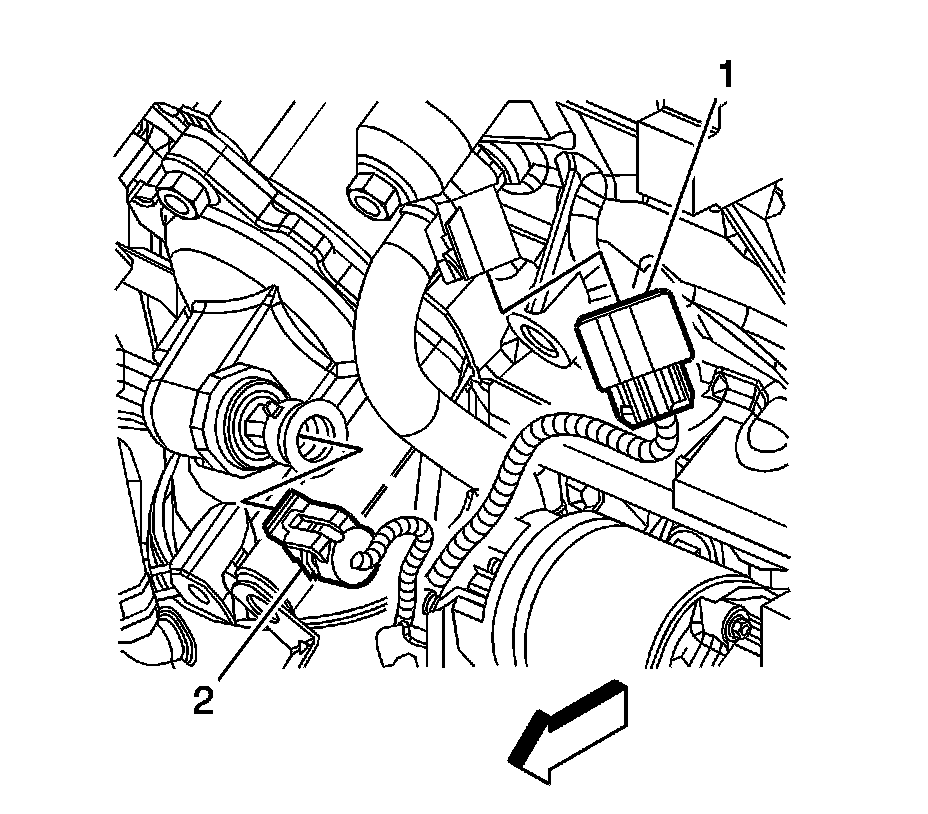

4. Disconnect the engine harness electrical connector (2) from the engine oil pressure sensor.

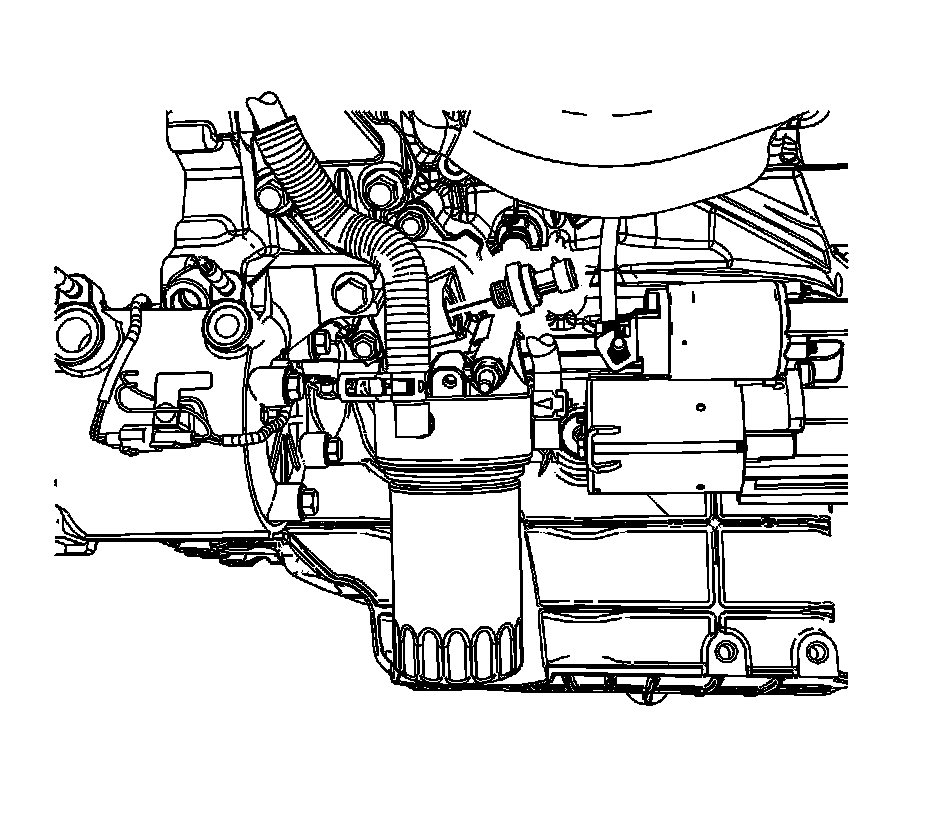

5. Remove the engine oil pressure sensor.

Installation Procedure





Caution: Refer to Fastener Caution Fastener Caution.

1. Install the engine oil pressure sensor and tighten to 16 Nm (12 lb ft).




2. Connect the engine harness electrical connector (2) to the engine oil pressure sensor.
3. Install the radiator air baffle. Refer to Radiator Air Baffle Assemblies and Deflectors Radiator Air Baffle Assemblies and Deflectors.
4. Lower the vehicle.
5. Connect the negative cable. Refer to Battery Negative Cable Disconnection and Connection Battery Negative Cable Disconnection and Connection.
