Body Control Module (BCM) X2

Harness Routing Views

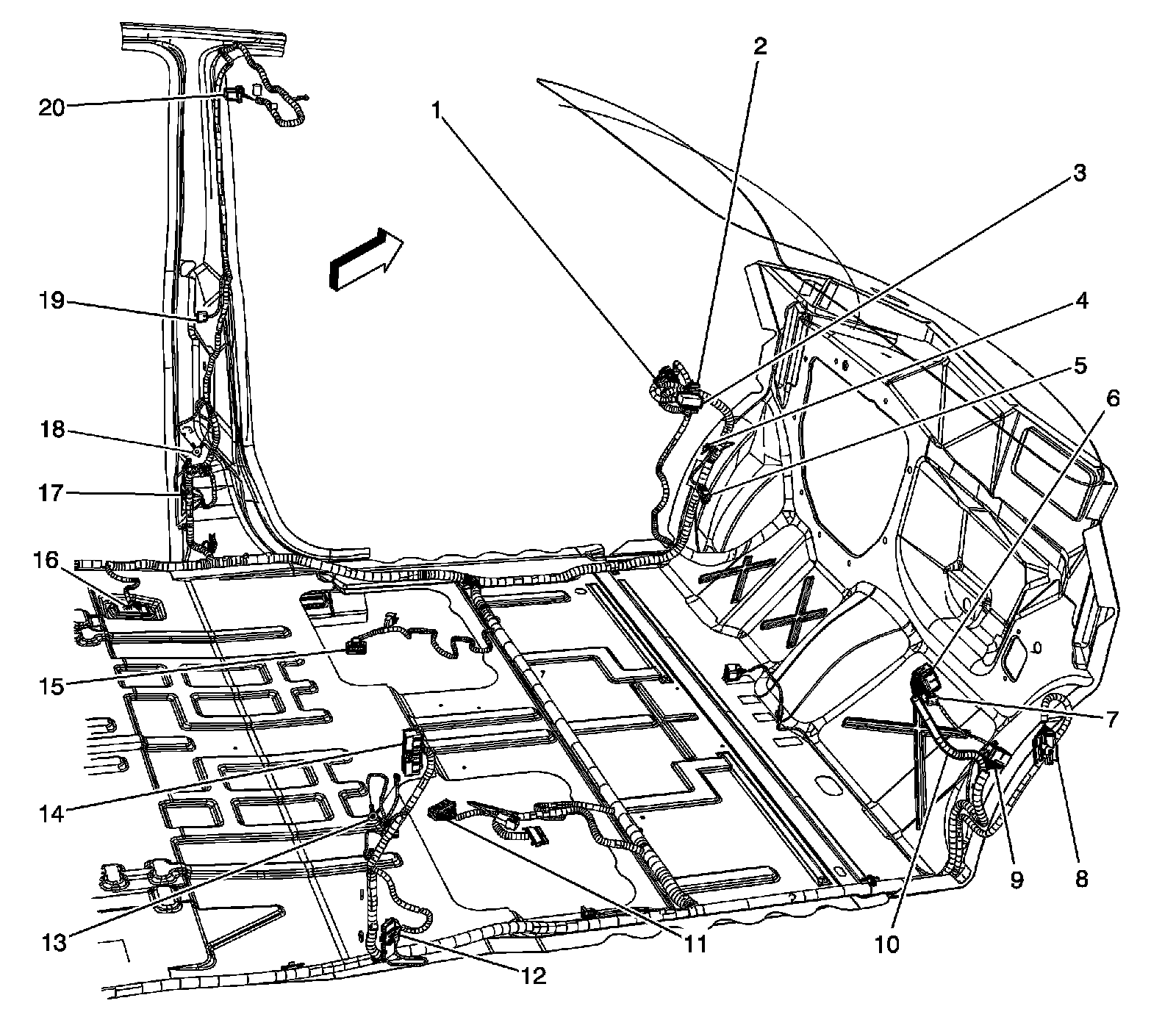

Body Harness Components 1 of 3




1 - X301 Driver Door Harness to Body Harness
2 - X203 Body Harness to Instrument Panel Harness
3 - Body Control Module (BCM) X2
4 - Park Brake Switch
5 - Inflatable Restraint Steering Wheel Module Coil X1
6 - X200 Body Harness to Instrument Panel Harness
7 - X254 Inflatable Restraint Instrument Panel Module Jumper Harness to Body Harness
8 - X302 Passenger Door Harness to Body Harness
9 - X204 Body Harness to Instrument Panel Harness
10 - J306 (Y3G or Y3H)
11 - X314 Body Harness to Passenger Seat Harness
12 - Sliding Door Jamb Contact Plate - Right X1
13 - G302
14 - X308 Body Harness to Headliner Harness
15 - X313 Body Harness to Driver Seat Harness
16 - X305 Fuel Tank Harness and Rear Cross-Car Jumper Harness to Body Harness
17 - Sliding Door Jamb Contact Plate - Left X1
