Component Locations

Passenger Compartment/Roof Component Views

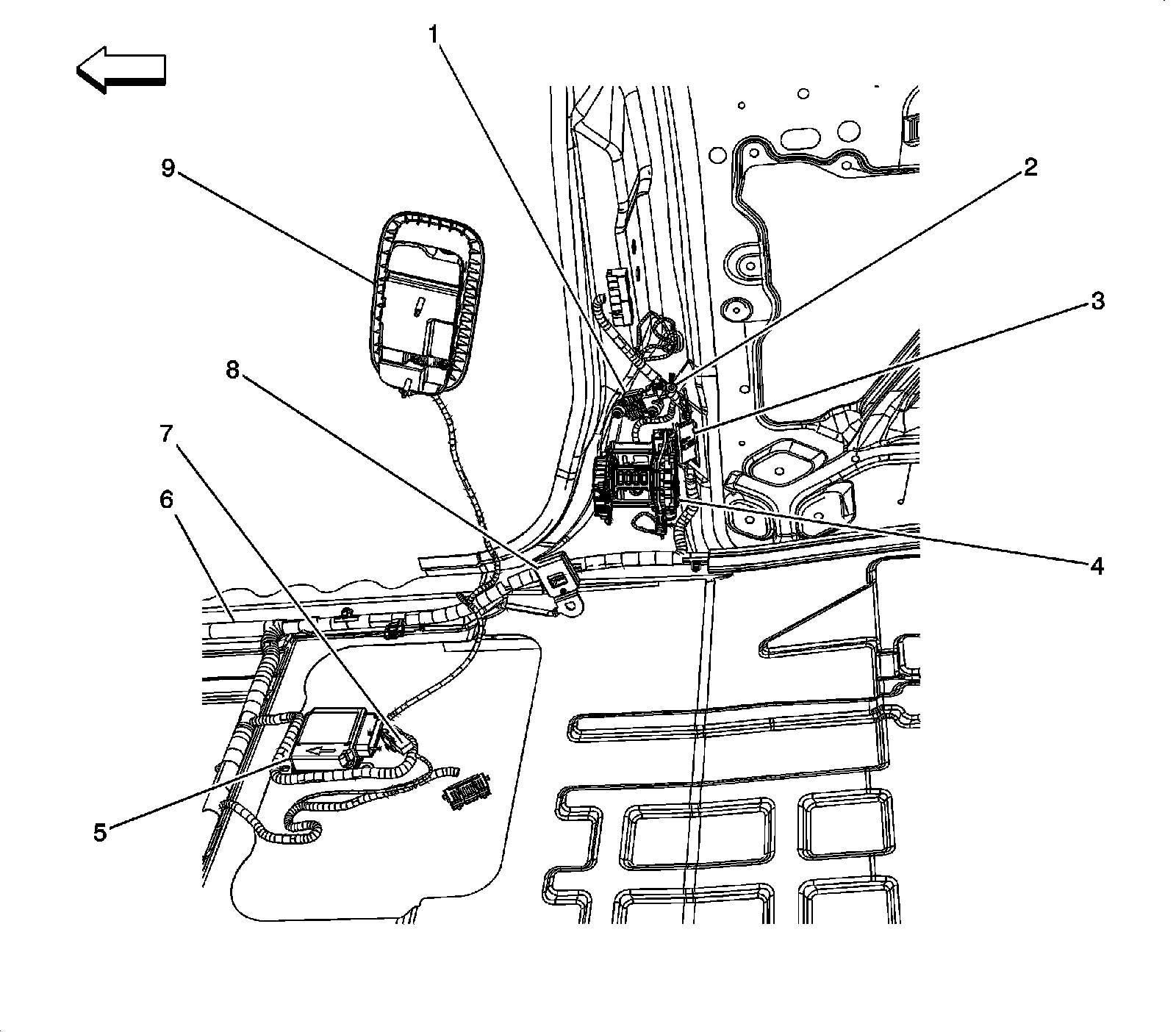

Right B Pillar Area Components




1 - Inflatable Restraint Side Impact Sensor (SIS) - Right (AJ7/AW9)
2 - G302
3 - Sliding Door Jamb Contact Plate - Right X1
4 - Seatbelt Pretensioner - Passenger
5 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 - Body Harness
7 - X316 (AJ7/AW9)
8 - Inflatable Restraint Seat Belt Tension Retractor Sensor - Passenger
9 - Inflatable Restraint Side Impact Module - Right (AJ7/AW9)
