Battery Tray: Service and Repair

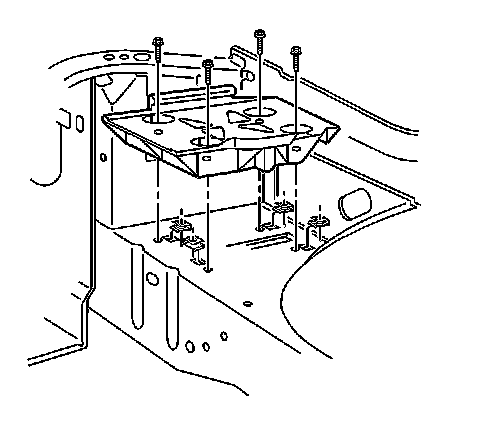

Battery Tray Replacement

Removal Procedure




1. Remove the battery. Refer to Battery Replacement Removal and Replacement.
2. Remove the battery tray bolts.
3. Remove the battery tray.

Installation Procedure




1. Install the battery tray.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the battery tray bolts and tighten to 10 Nm (89 lb in).
3. Install the battery. Refer to Battery Replacement Removal and Replacement.
