Front Side Door Window Belt Inner Sealing Strip Replacement

Front Side Door Window Belt Inner Sealing Strip Replacement

Removal Procedure

1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement Front Side Door Trim Panel Replacement.
2. Lower the front door window.

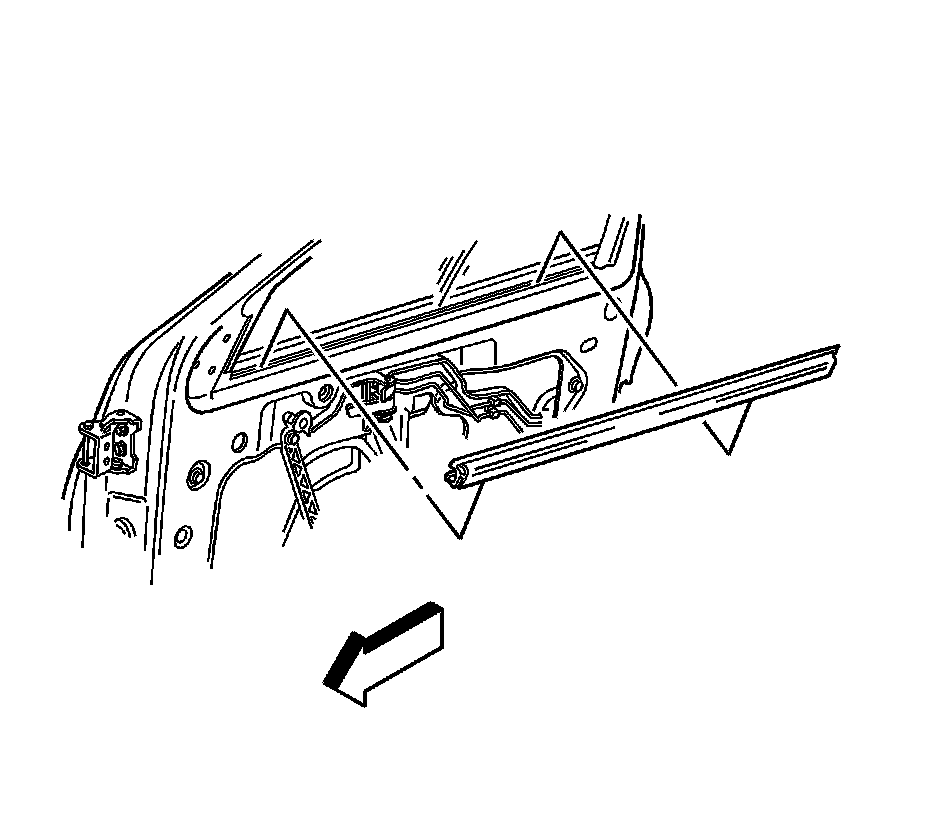

3. Remove the front door inner belt window sealing strip by lifting off the pinch-weld flange.

Installation Procedure





Important: Install the front door weatherstrip before installing the front door inner belt window sealing strip.


1. Install the front door inner belt sealing strip to the pinch-weld flange.
2. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement Front Side Door Trim Panel Replacement.
3. Raise the front door window.
