Quarter Window Replacement

Quarter Window Replacement

Removal Procedure

1. Remove the upper garnish molding from the body side rear. Refer to Body Lock Pillar Upper Trim Panel Replacement Body Lock Pillar Upper Trim Panel Replacement.




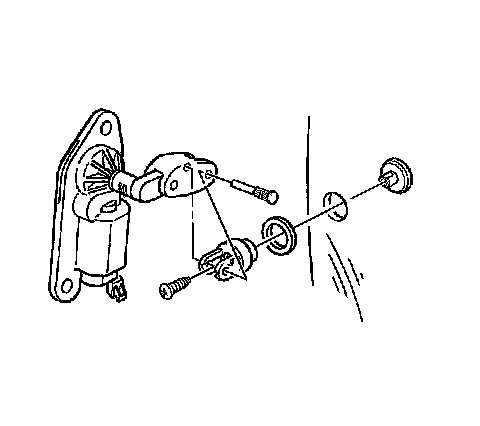

2. Remove the bearing bushing screw.

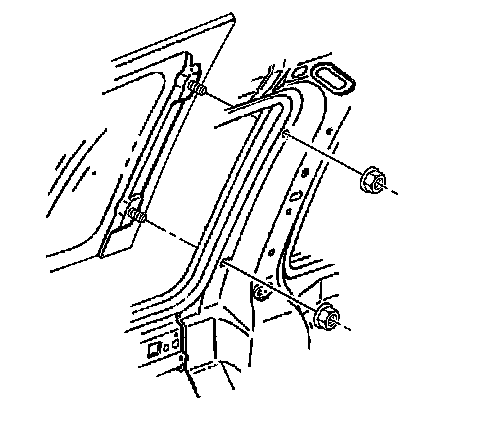

3. Remove the retaining nuts from the hinge studs on the rear quarter window.
4. Remove the rear quarter window from the vehicle.

Installation Procedure

1. Install the rear quarter window to the vehicle.





Caution: Refer to Fastener Caution Fastener Caution.

2. Install the retaining nuts to the hinge studs on the rear quarter window and tighten to 10 Nm (89 lb in).




3. Install the bearing bushing retaining screw and tighten to 2 Nm (18 lb in).
4. Install the upper garnish molding top the body side rear. Refer to Body Lock Pillar Upper Trim Panel Replacement Body Lock Pillar Upper Trim Panel Replacement.
