Air Register: Service and Repair

Instrument Panel Air Deflector Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).

1. Disconnect the negative battery cable.
2. Remove the instrument panel center upper cover. Refer to Instrument Panel Center Trim Panel Replacement (Instrument Panel Center Trim Panel Replacement).

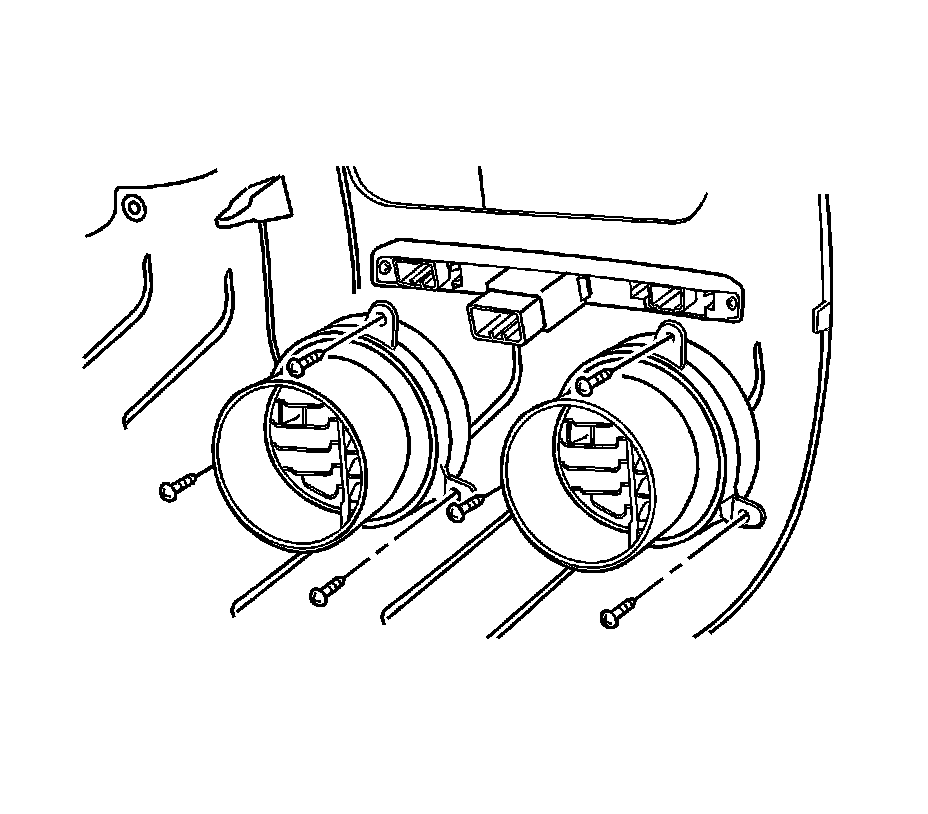

3. Remove the screws and the air deflectors.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the air deflectors with the screws.

Tighten the air deflector screws to 2 Nm (18 lb in).

2. Install the instrument panel center upper cover. Refer to Instrument Panel Center Trim Panel Replacement (Instrument Panel Center Trim Panel Replacement).
3. Connect the negative battery cable.
