Component Locations

Instrument Panel/Center Console Component Views

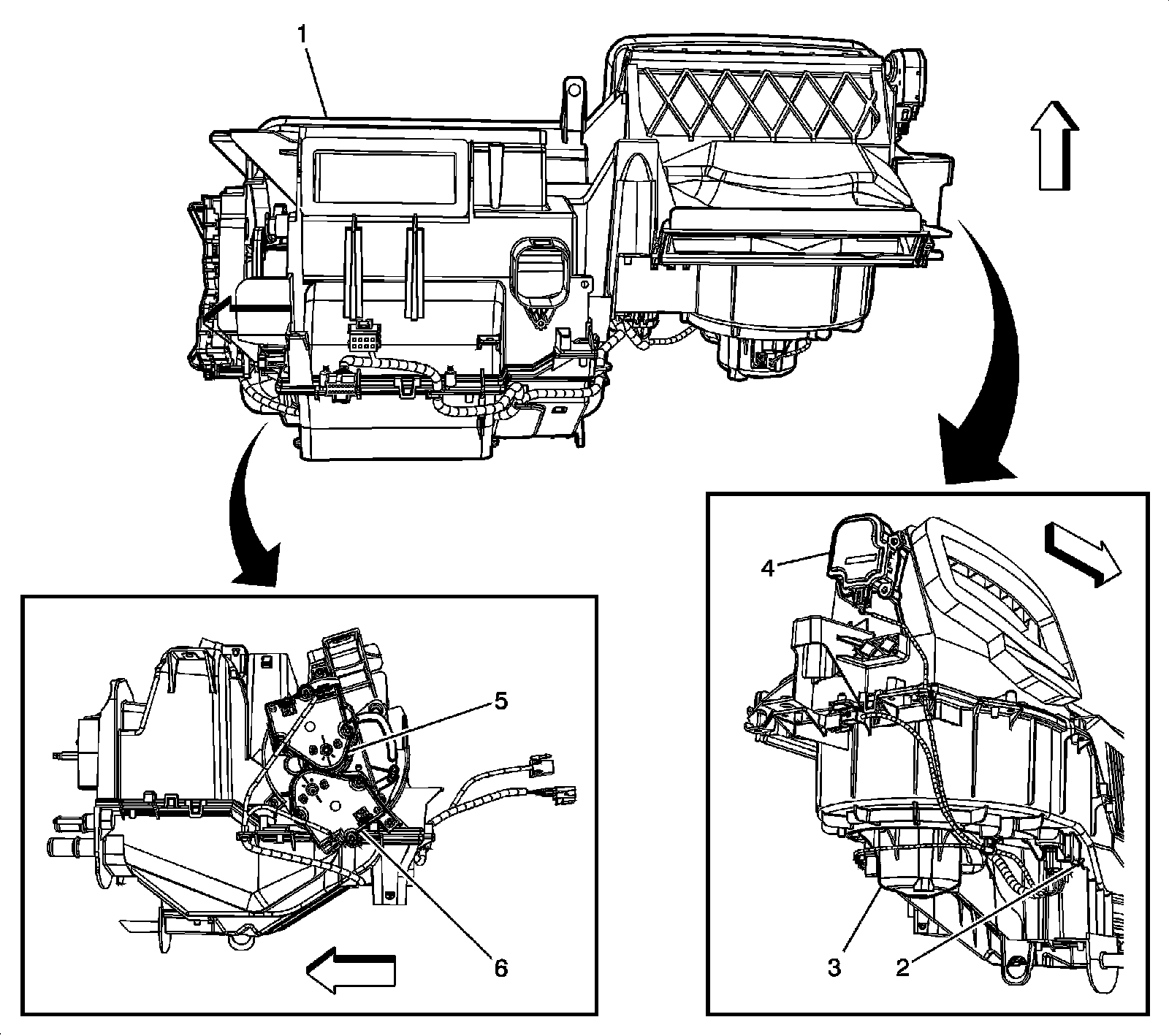

Interior HVAC Components

1 - HVAC Box Assembly
2 - Blower Motor Resistor
3 - Blower Motor
4 - Recirculation Actuator
5 - Mode Actuator
6 - Air Temperature Actuator
