Electrical Diagrams




Object Detection Schematics

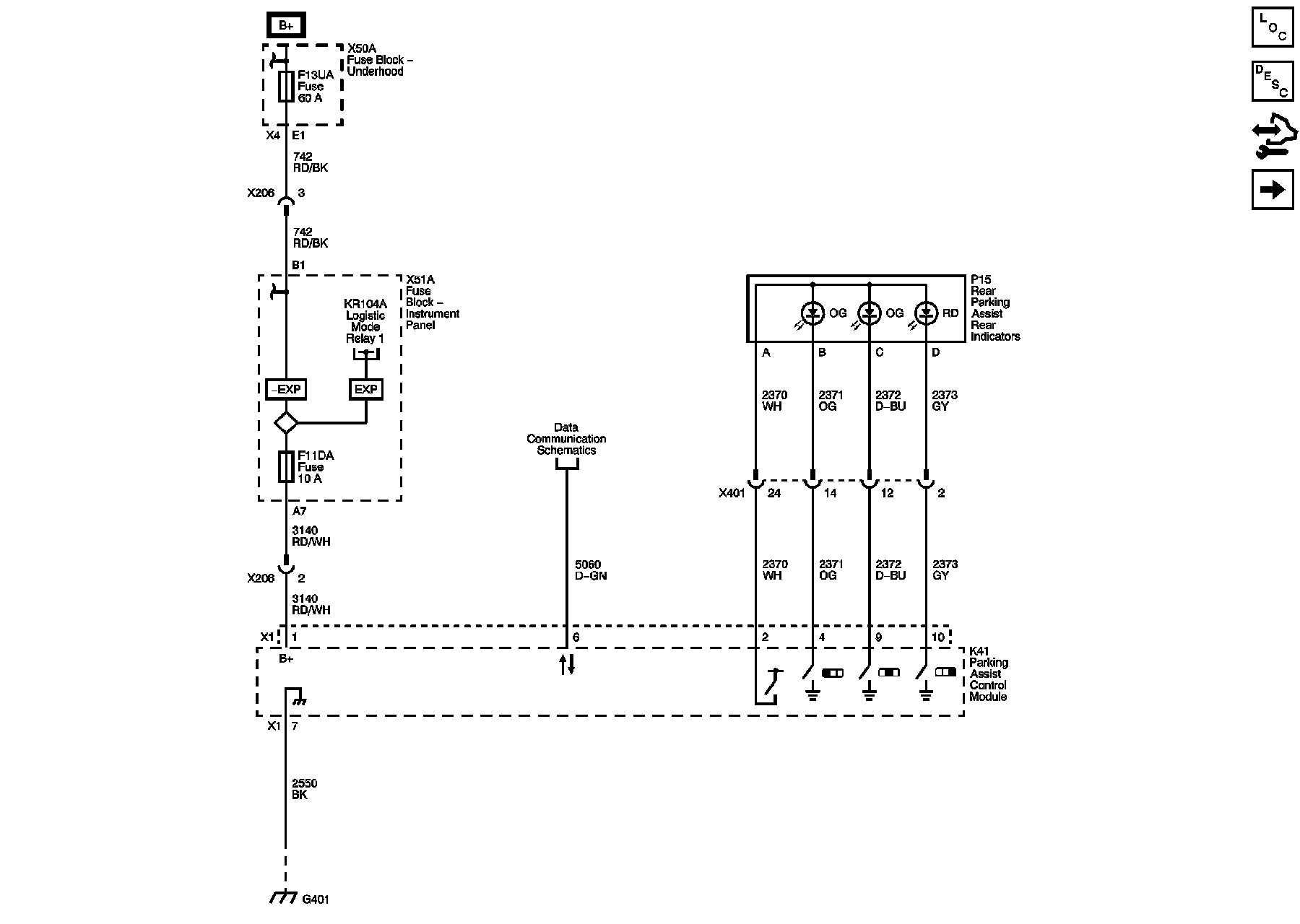

Module Power, Ground, and Telltale Indicators (UD7)

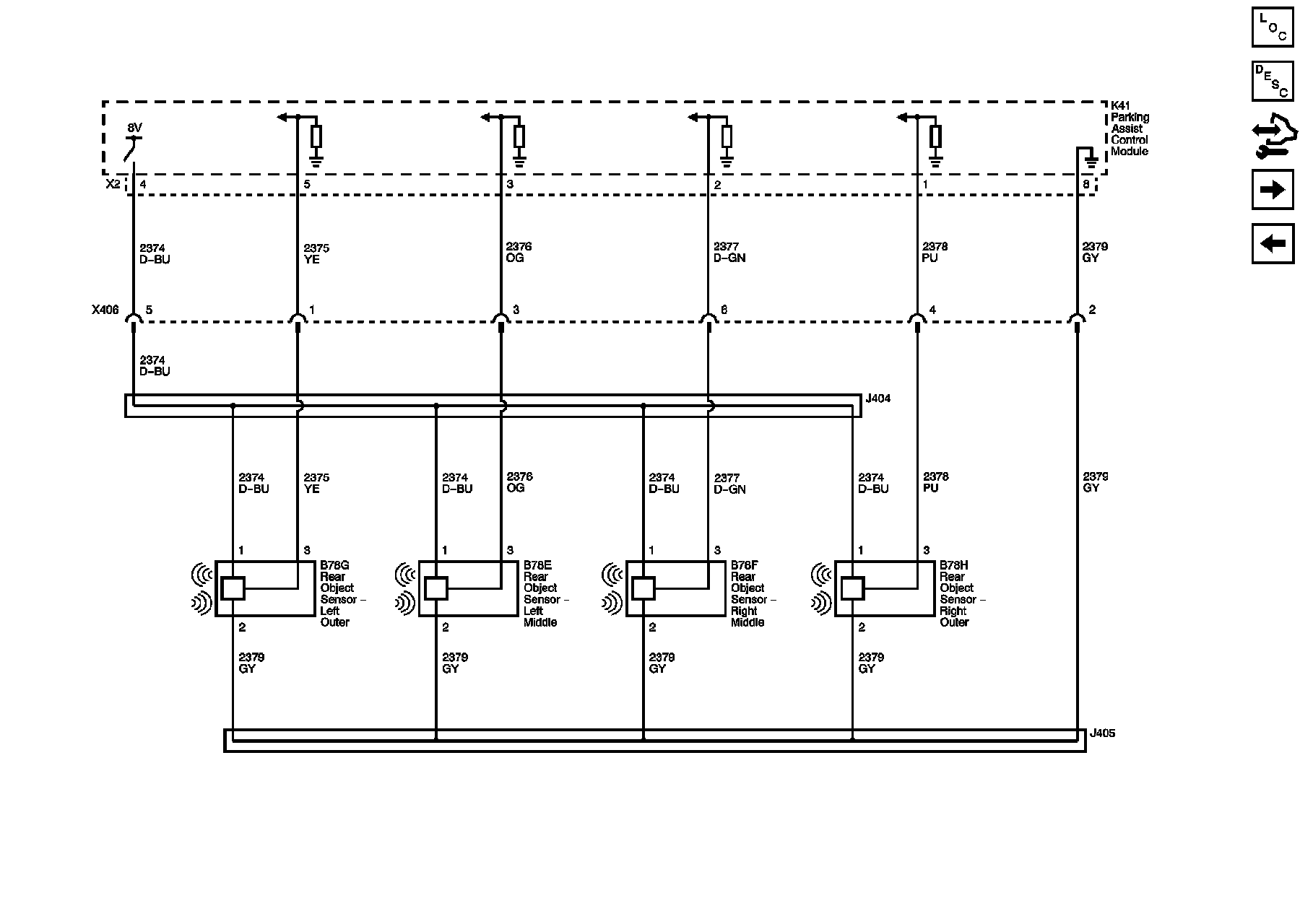

Rear Object Sensors (UD7)

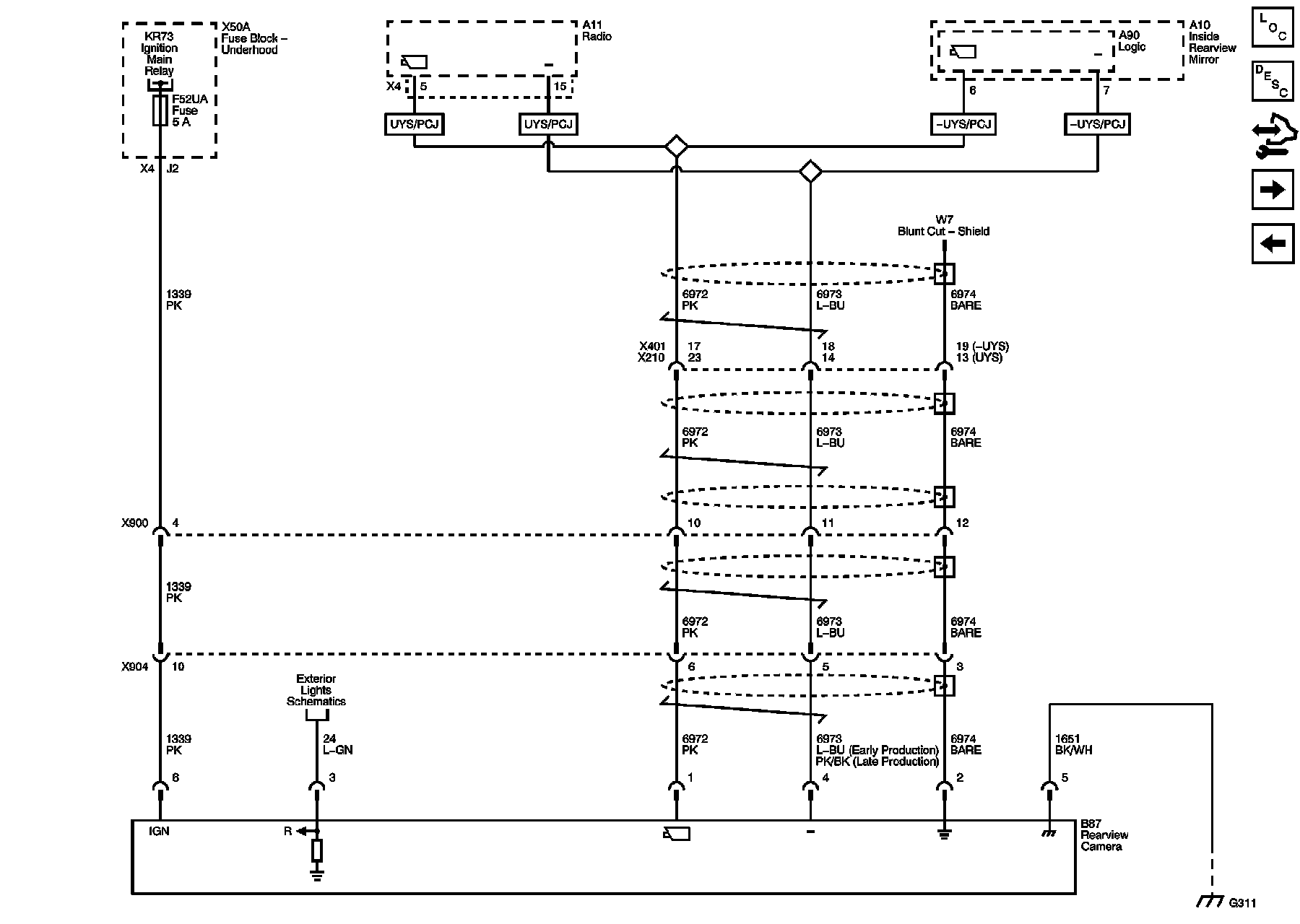

Rearview Camera (UVC)
