Connector Views
>>
Fuel Pump
>>
System Diagram
System Diagram

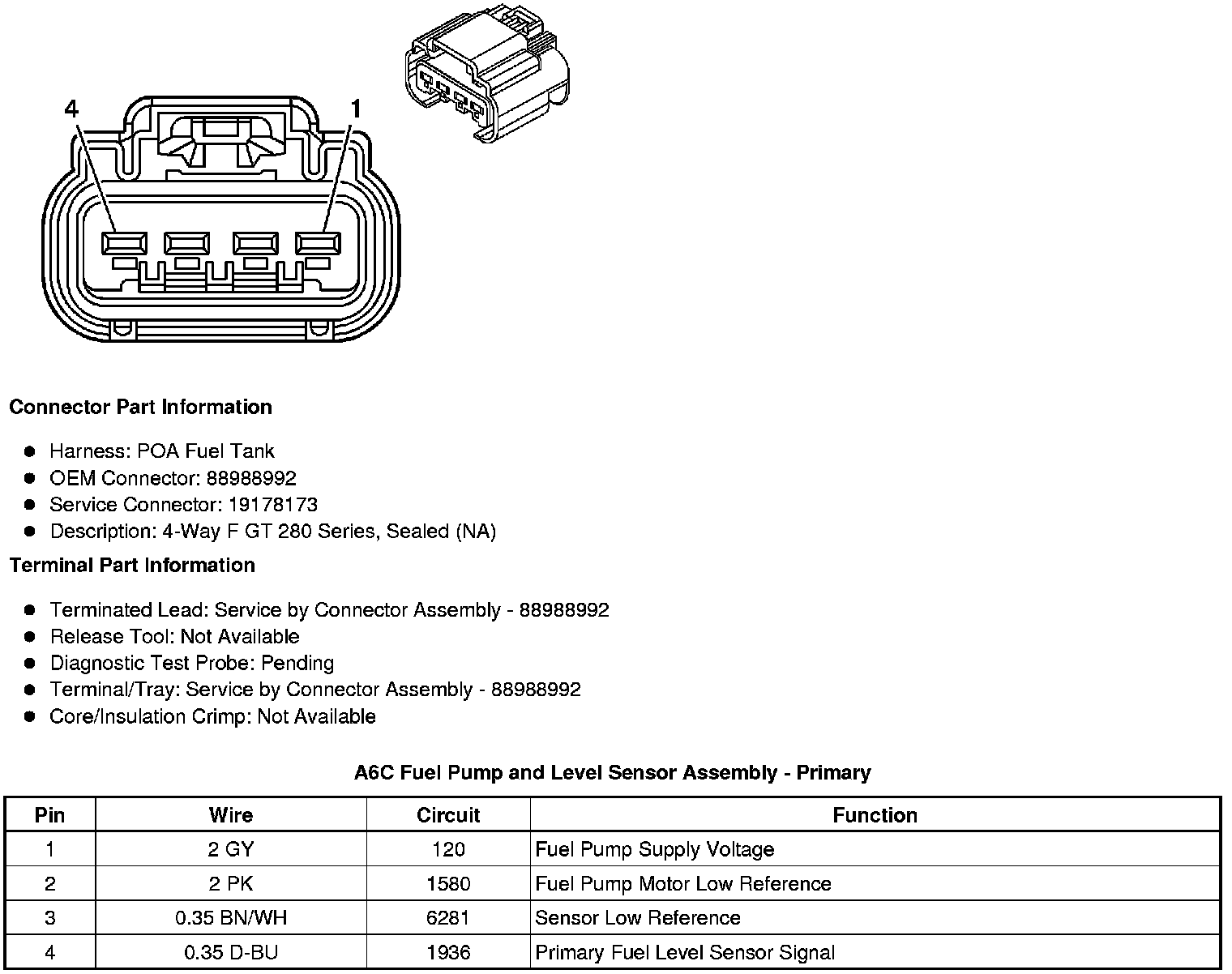

A6C
Fuel Pump
and Level Sensor Assembly - Primary

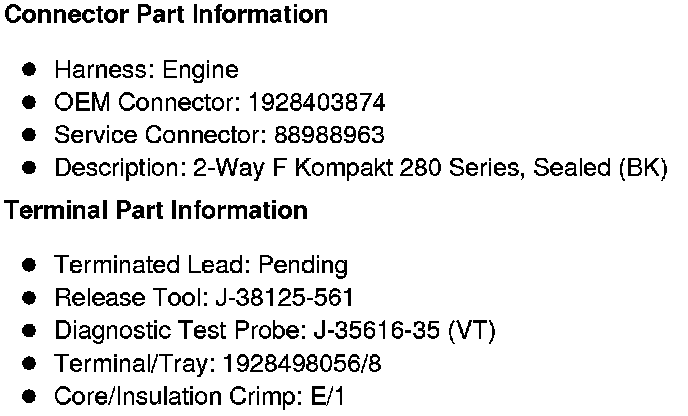

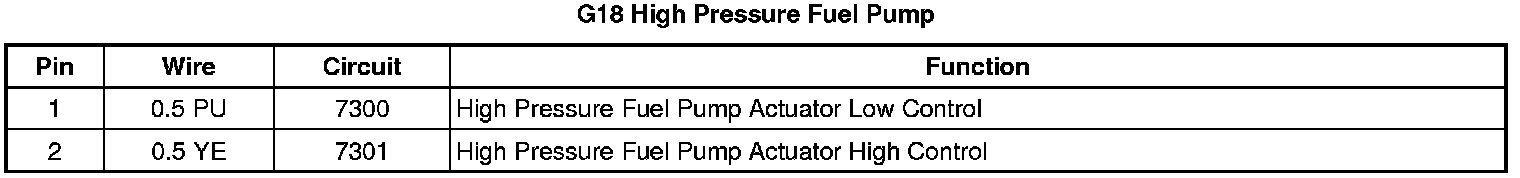

G18 High Pressure
Fuel Pump
